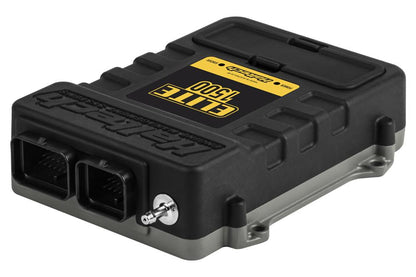

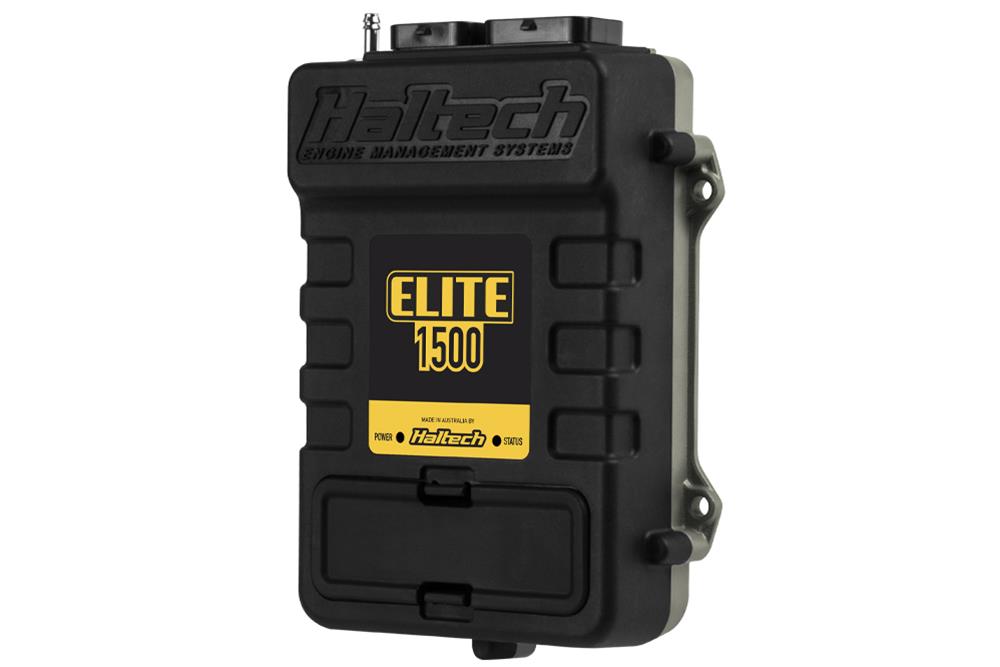

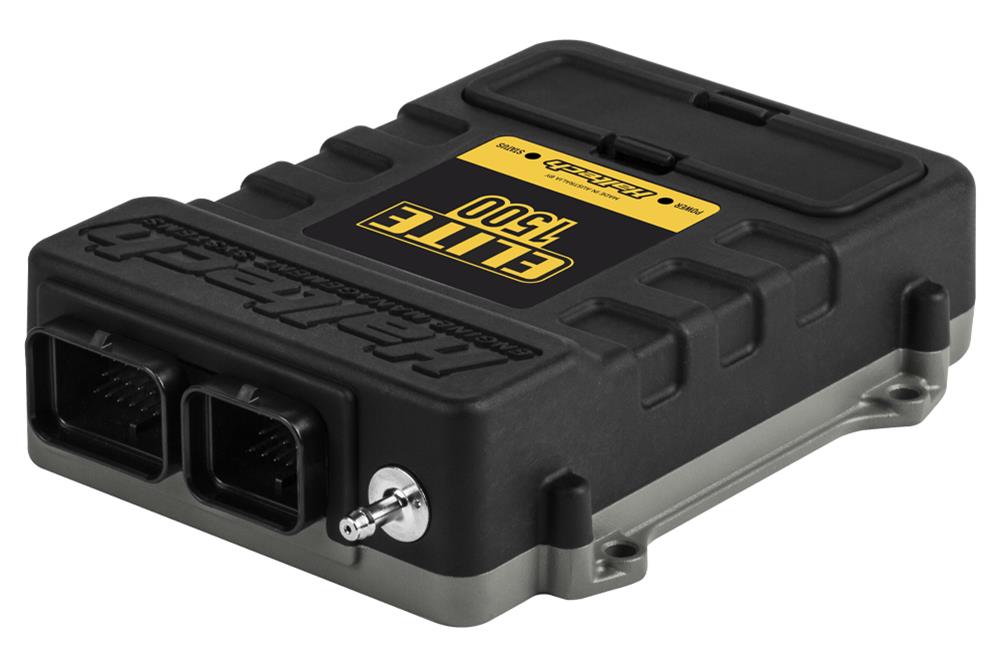

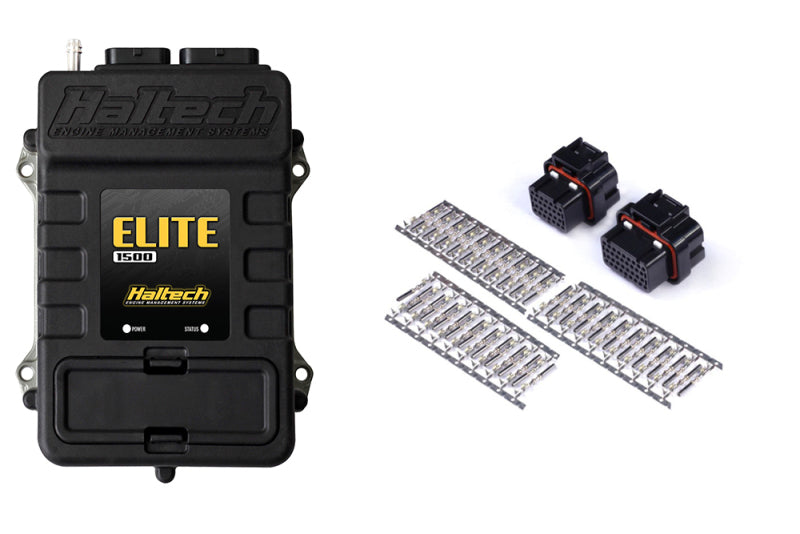

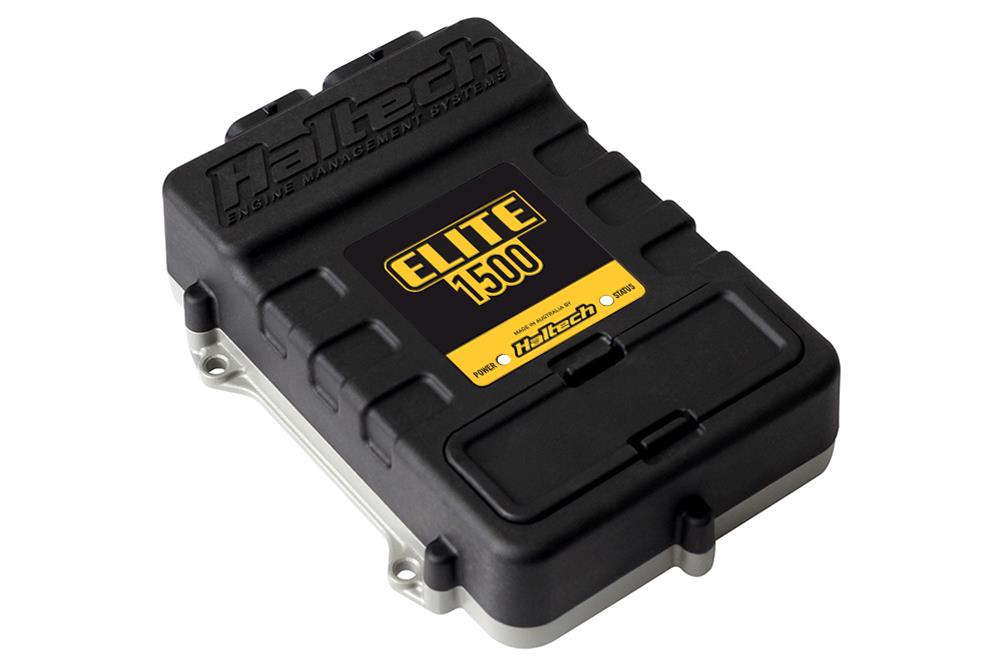

Haltech Elite 1500 ECU + Plug and Pin Set – HT-150901

The Haltech Elite 1500 ECU + Plug and Pin Set is a complete standalone engine management package designed for custom wiring applications, EFI conversions, and performance upgrades. This kit includes the high-performance Elite 1500 ECU along with an AMP 26 & 34 Pin Superseal plug and pin set—ideal for users building a custom harness for universal or race applications.

Featuring advanced control strategies, robust tuning capabilities, and seamless compatibility with Haltech’s NSP tuning software, this system is well-suited for modern performance engines and motorsport setups.

Key Features:

• Suits: Universal applications (custom builds, swaps, EFI conversions)

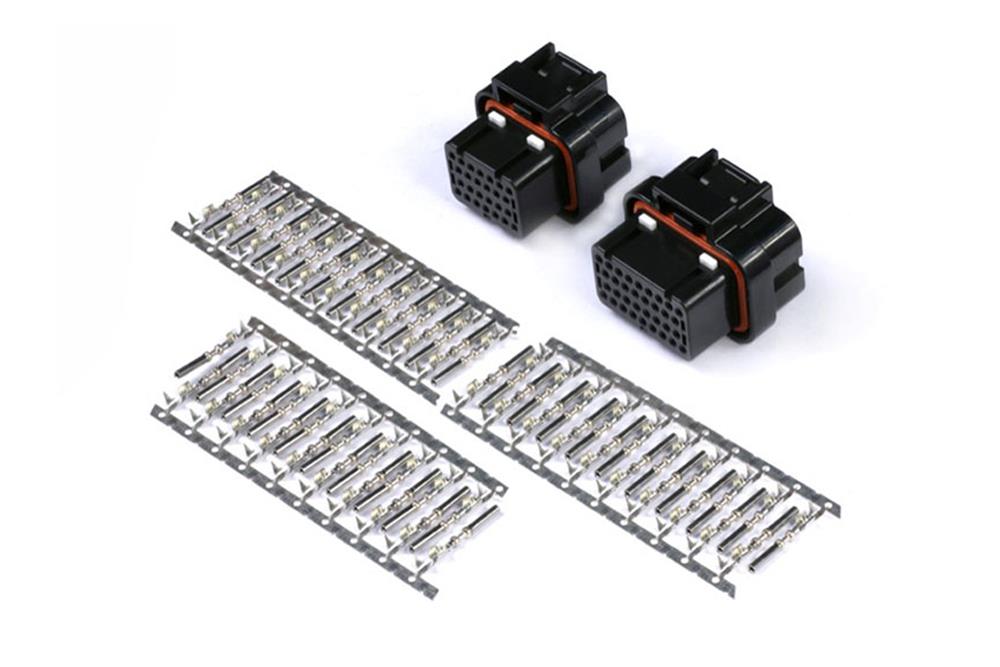

• Includes AMP 26 & 34 Pin 4-Row 3-Key Superseal Plug and Pin Set

• Supports 1–12 cylinder or 2-rotor engines

• Compatible with throttle-by-wire, variable cam control, and flex fuel

• IP67-rated sealed ECU housing for water and dust resistance

• CAN connectivity for expansion modules and digital dashboards

• Ideal for race cars, custom harness fabrication, and standalone control

• NOT CARB LEGAL

Included in Kit:

• Haltech Elite 1500 ECU with DBW and Race Functions

• AMP Superseal 26 & 34 pin plug and pin set

• USB programming cable

• NSP software and full installation documentation (via USB)

ECU Capabilities:

• 4 injector drivers, 4 ignition outputs

• 12 digital outputs, 10 analog voltage inputs

• Knock, ignition switch, and onboard MAP inputs

• Dual CAN Bus – up to 45 channels of I/O expansion

• Data logging: up to 40 channels @ 200Hz (onboard and via laptop)

• Flexible tuning options: 32x32x8 maps, 3D per-cylinder corrections, 4D control strategies

• Compatible with petrol, ethanol, methanol, LPG

Race Features & Advanced Control:

• Launch Control, Traction Control, Rolling Anti-Lag

• Nitrous system management (up to 6 stages)

• Intelligent 4D closed-loop Boost Control with user-definable corrections

• Sequential turbo support, CO₂ boost, flat shift, shock travel input, trans brake

• Optional upgrade: Advanced Torque Management

Notes:

• Harness not included – intended for custom wiring using supplied plug & pin set

• For competition/off-road vehicles only – not legal for public road use unless exempt

Emissions Notice:
This product is designed for off-road/competition use only. It is not legal for use on public roads unless specifically exempted.
