Haltech Elite 1500 + Plug 'n' Play Adaptor Harness Kit for Subaru WRX MY93-96 & Liberty RS (Manual Transmission) - HT-150941

The Haltech Elite 1500 ECU with Plug 'n' Play Adaptor Harness Kit delivers advanced engine management functionality for Subaru WRX MY93-96 and Liberty RS models with manual transmissions. Designed for both performance enthusiasts and motorsport applications, this system allows for fast installation and full control over tuning parameters. Featuring race-ready capabilities and a durable, IP67-rated housing, the Elite 1500 is ready for any challenge.

Important Emissions Notice:
This product is intended for sanctioned off-road and competition vehicles only. It is not legal for use on public roads or highways unless an applicable regulatory exemption is met.

Key Features:

• Plug 'n' Play ECU solution for Subaru WRX MY93-96 & Liberty RS

• Manual transmission only

• Elite 1500 ECU with:

  • Drive-by-Wire throttle control

  • Dual channel knock control

  • Variable camshaft support (up to 4 cams)

  • Closed loop idle, O2, and boost control

  • Flex fuel compatibility

  • Launch control, traction control, rolling anti-lag

  • 4D tuning, 3D per-cylinder correction

  • On-board and USB data logging

  • Dual CAN Bus for integration with Haltech dashes and accessories

• NOT CARB LEGAL

ECU Technical Specs:

• 4 x Fuel Injection Outputs

• 4 x Ignition Outputs

• 12 x Digital Outputs

• 10 x Analog Voltage Inputs

• 4 x Synchronized Pulsed Inputs

• 3 x Dedicated Inputs (Knock, Ignition Switch, Onboard MAP Sensor)

• 2 x Engine Position Inputs

• IP67-rated waterproof housing

• USB communication with Nexus Software Programmer (NSP)

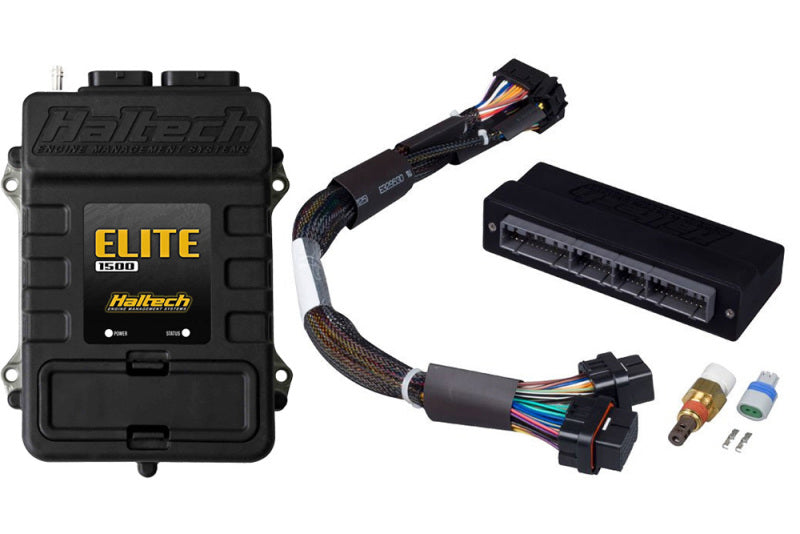

Includes:

• Haltech Elite 1500 ECU with DBW and Race Functions

• Injection-molded Plug 'n' Play adaptor harness

• M14 x 1.5 air temp sensor with matching connector and pins

• 16-pin TYCO auxiliary I/O plug and pins

• USB programming cable

Vehicle Fitment:

• Subaru WRX MY93-96 (Manual transmission only)

• Subaru Liberty RS (Manual transmission only)

Brand: Haltech
SKU: HT-150941
