Haltech Elite 1500 + Basic Universal Wire-in Harness Kit – HT-150902

The Haltech Elite 1500 + Basic Universal Wire-in Harness Kit offers a flexible and powerful standalone engine management platform for custom builds, engine swaps, and dedicated race vehicles. This system includes the Elite 1500 ECU and a color-coded, labeled universal harness, giving users the freedom to wire their engine system to suit any configuration with precision.

With intuitive setup via the Nexus Software Programmer (NSP), this kit supports full control of drive-by-wire, variable cam timing, flex-fuel tuning, and advanced race features including anti-lag, boost control, traction control, and more. Whether tuning for naturally aspirated, turbocharged, or supercharged setups, the Elite 1500 delivers unmatched customization and performance capability.

Key Features:

• Suits: Universal applications (1–12 cylinder or 2-rotor engines)

• Harness length: 2.5m (8 ft), unterminated wire ends for custom installations

• ECU features include Drive-by-Wire, closed-loop control, knock sensing, flex-fuel tuning

• Advanced race functions: Anti-lag, launch control, traction control, rolling anti-lag

• Dual CAN Bus for accessory integration and logging (up to 45 I/O channels)

• Waterproof IP67-rated ECU housing for harsh environments

• Intuitive NSP calibration software for Windows-based laptops

• NOT CARB LEGAL

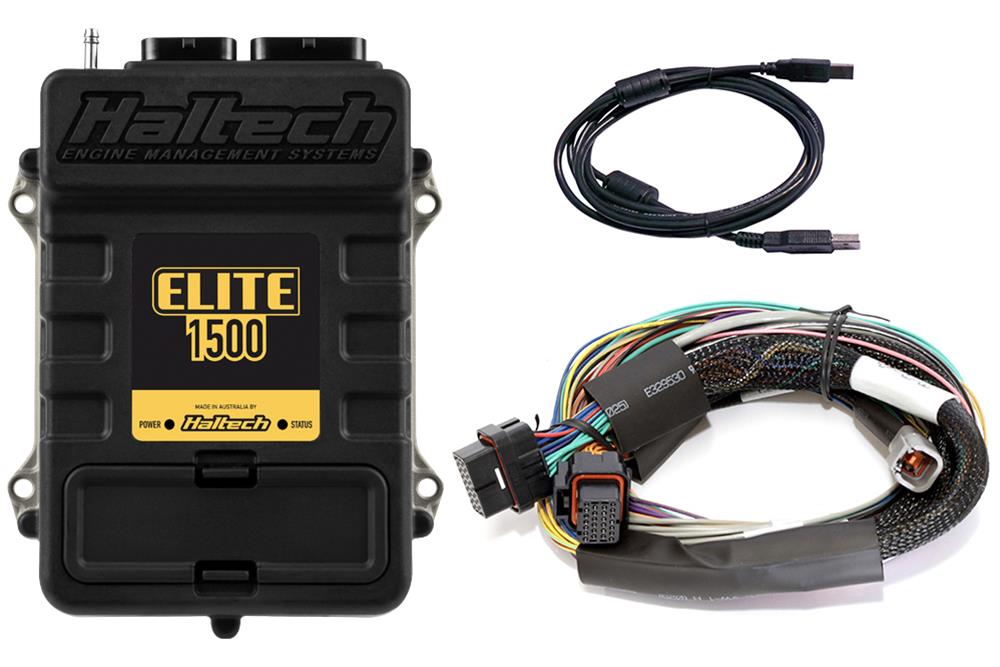

Included in Kit:

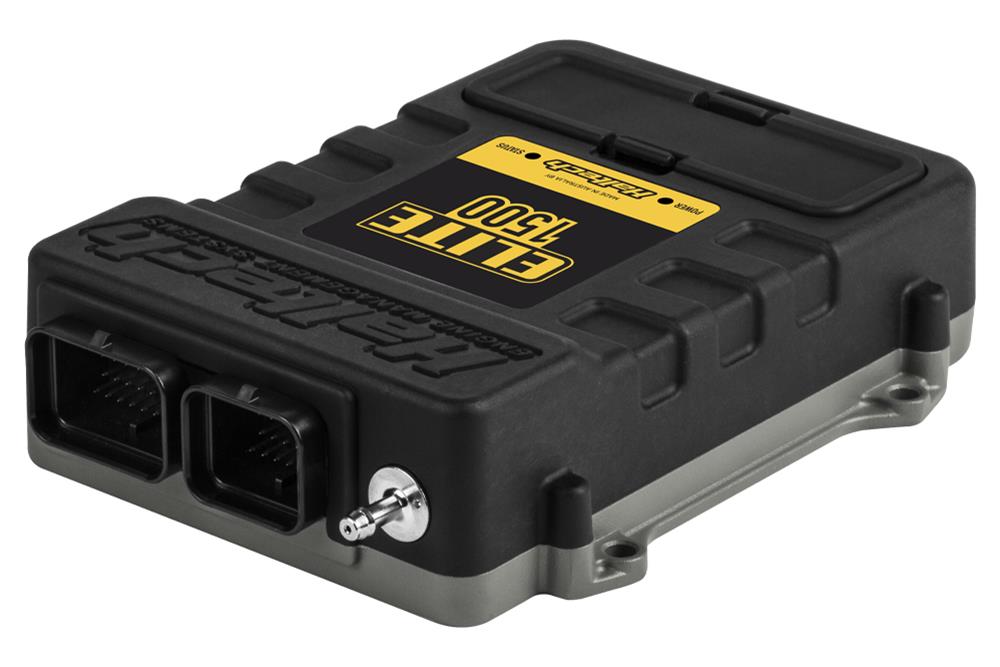

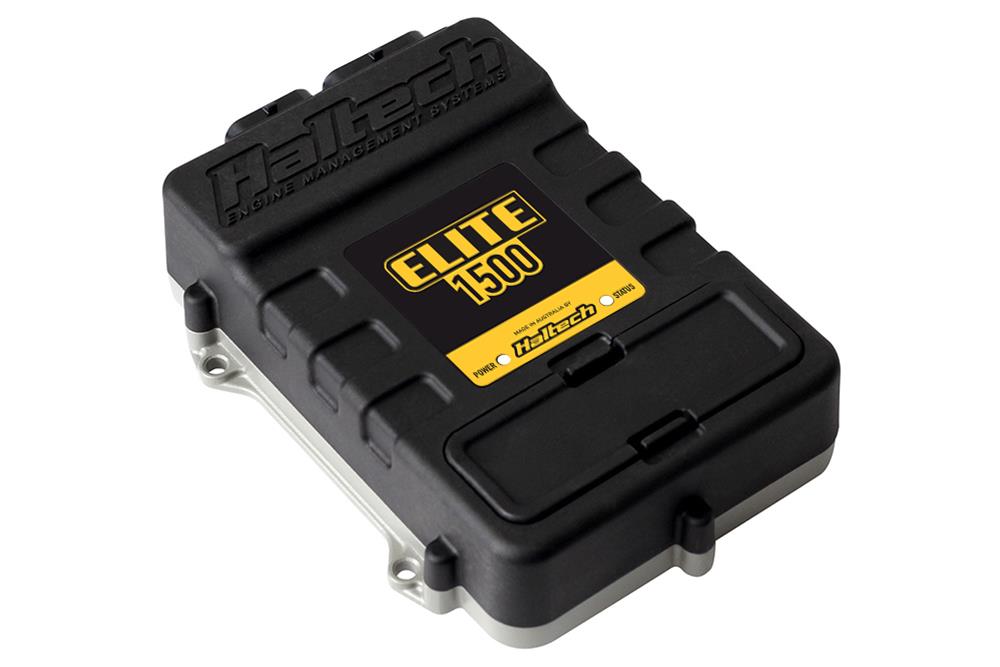

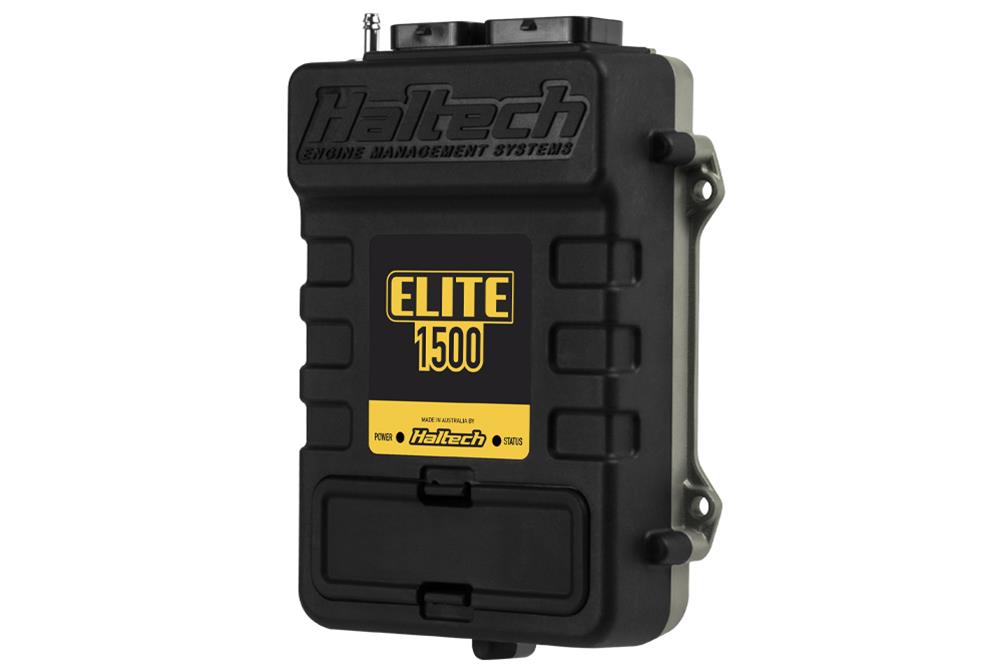

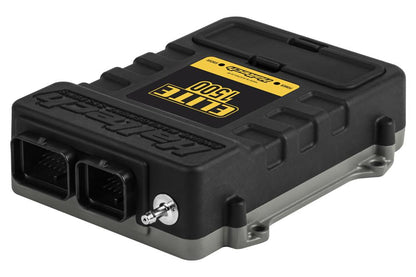

• Haltech Elite 1500 ECU with DBW and Race Functions

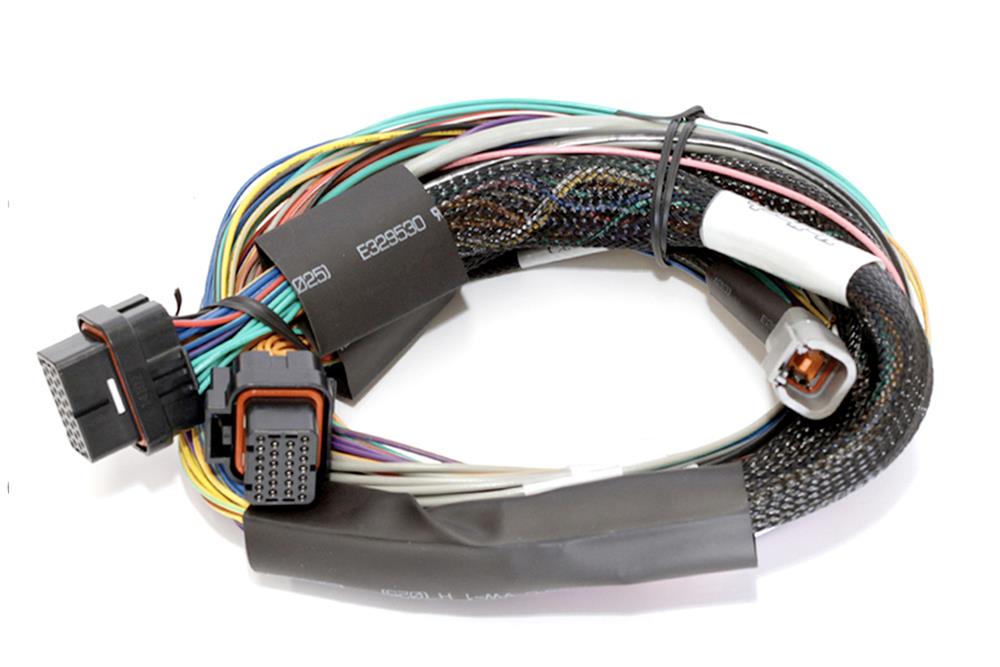

• Basic Universal Wire-In Harness (unterminated, color-coded and labeled)

• M14 x 1.5 air temp sensor with plug and pins

• USB programming cable with waterproof cap

• ECU manual and NSP software (included on USB)

Technical Specifications:

• 4 injector and 4 ignition outputs

• 12 digital outputs, 10 analog voltage inputs

• 4 synchronized pulsed inputs, 3 dedicated inputs (knock, ignition switch, onboard MAP)

• 2 dedicated engine position inputs with wide trigger compatibility

• Up to 40 channels of onboard data logging at 200Hz

• Tuning tables: Up to 32x32x8 resolution, with 3D per-cylinder and 4D tuning

• ECU supports fuels: Petrol, LPG, Methanol, Ethanol

Notes:

• Does not include fuse and relay box

• Intended for custom wiring only; installation requires familiarity with EFI systems

• For competition/off-road use only

Emissions Notice:
Haltech products are intended for sanctioned off-road/competition vehicles only. Use on public roads is prohibited unless a regulatory exemption exists.
