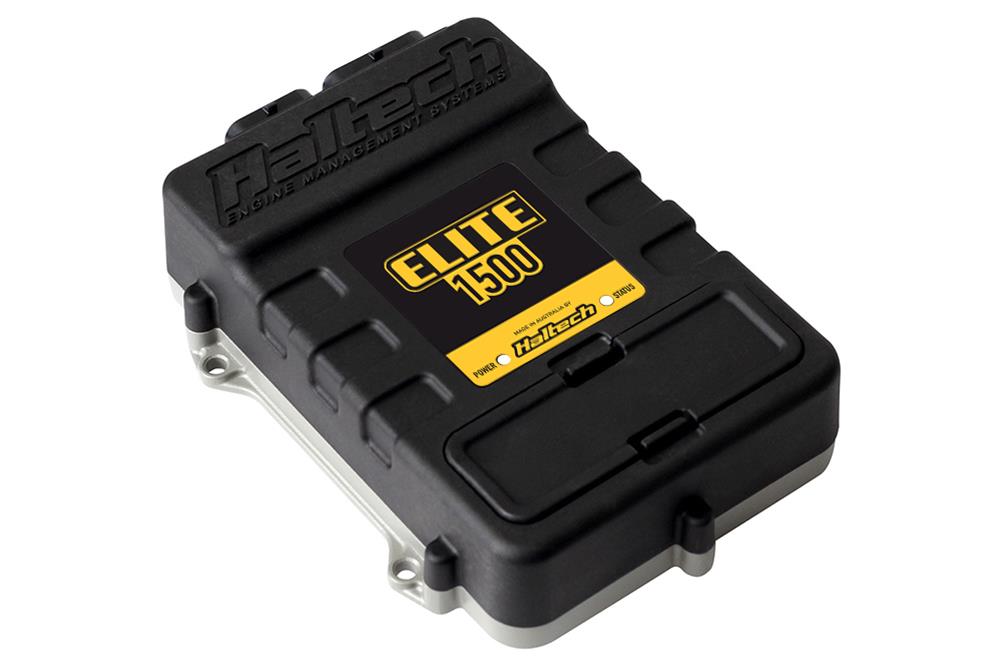

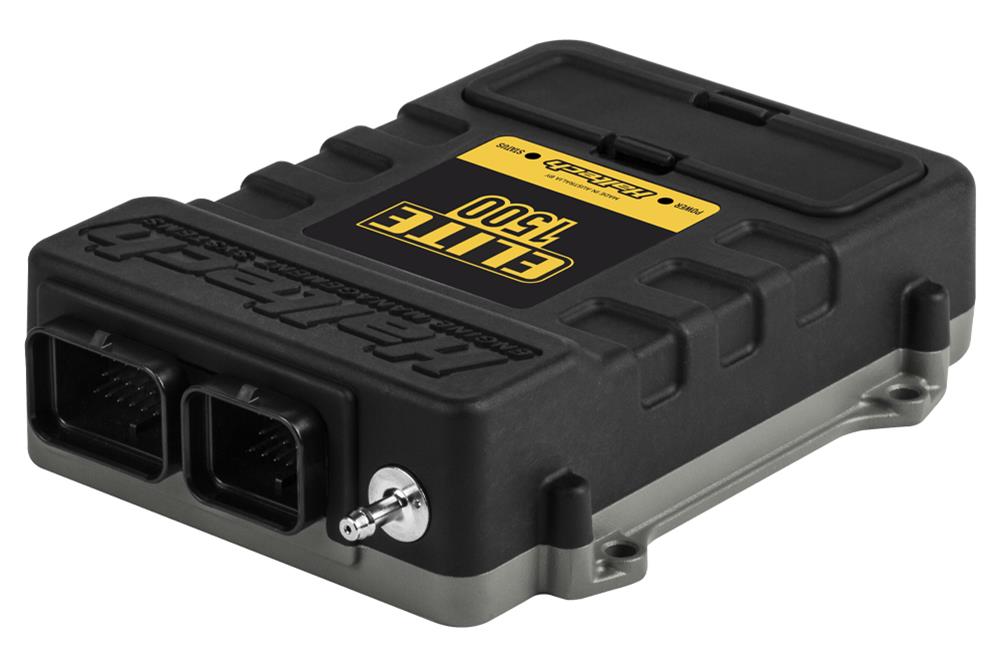

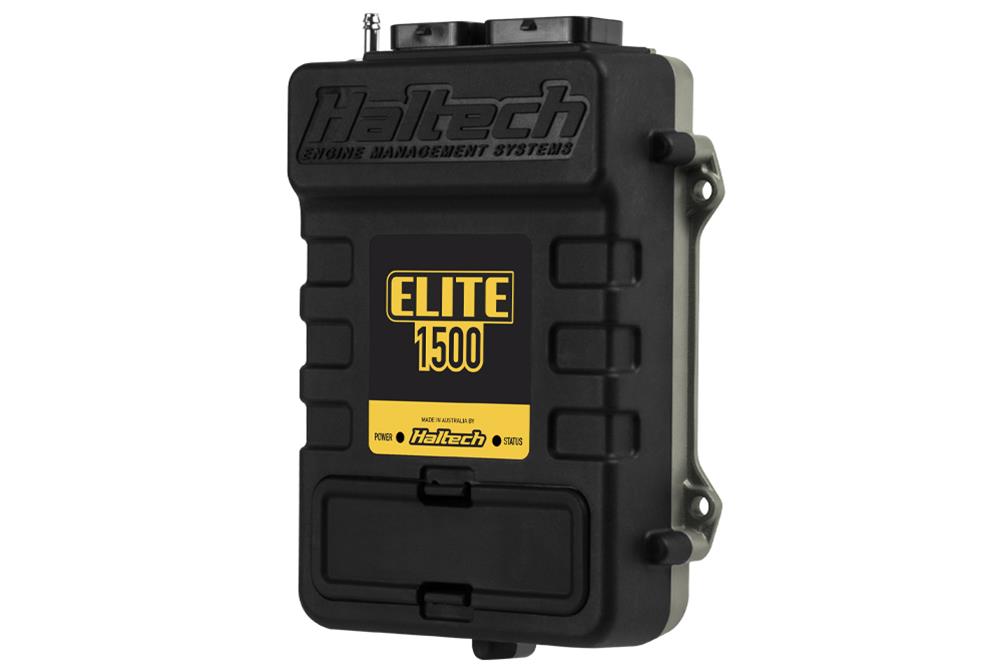

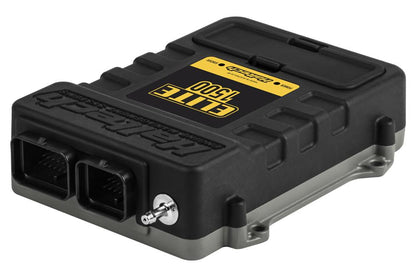

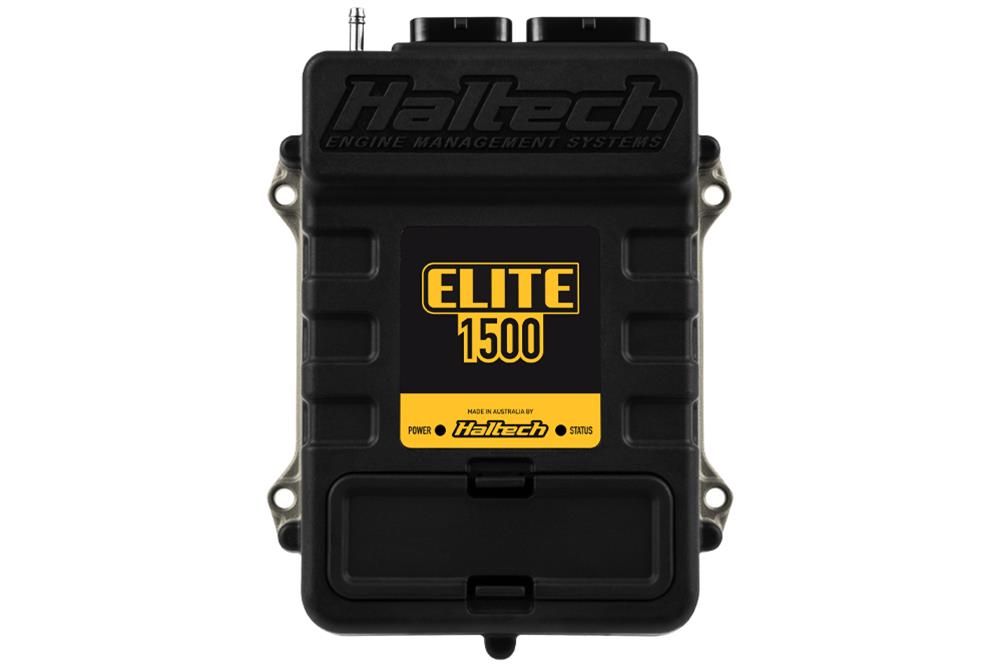

Haltech Elite 1500 ECU Universal Wiring Kit – HT-150900

The Haltech Elite 1500 ECU Universal Wiring Kit delivers a robust engine management solution for tuners, racers, and performance enthusiasts working on custom builds, EFI conversions, or engine swaps. Suitable for 1–12 cylinder or 2-rotor engines, this kit provides the core ECU unit and connectivity for building a custom wiring solution using terminated, universal, or model-specific harness options (sold separately).

With support for Drive-By-Wire, flex-fuel, variable cam control, and advanced race features, the Elite 1500 is equipped to manage even the most demanding engines. The included Nexus Software Programmer (NSP) provides intuitive setup, powerful tuning tools, and real-time data logging for peak calibration flexibility.

Key Features:

• Suits:

  • Universal applications

  • 1–12 cylinder or 2-rotor engines

  • EFI conversions, DBW systems, and multi-camshaft engines

• Robust IP67-rated ECU case for harsh environments

• Supports all common fuel and ignition types (sequential, batch, staged, multipoint)

• Up to 4 injector and 4 ignition outputs

• Compatible with terminated engine harnesses, Plug 'n' Play kits, or universal wiring (sold separately)

• Includes NSP software for calibration and real-time engine tuning

• NOT CARB LEGAL

Included in Kit:

• Haltech Elite 1500 ECU with Drive-By-Wire and Race Functions

• USB programming cable

• Access to Quick Start Guide, Spec Sheet, and Wiring Diagram (provided with product)

Advanced ECU Capabilities:

• Drive-by-Wire throttle control (2 outputs, 4 inputs required)

• Flex-fuel support with ethanol content sensor

• Closed-loop control for idle, O₂, and boost

• Knock control with engine position synchronization

• 32x32x8 high-resolution tuning tables with per-cylinder corrections

• 12 digital outs, 10 analog inputs, dual CAN Bus communication

• Up to 45 CAN I/O expansion channels

• Built-in and laptop data logging with up to 40 channels at 200Hz

• Full race feature suite: Anti-lag, Launch Control, Traction Control, Nitrous, CO₂ boost, sequential turbo, and more

Notes:

• Wiring harness sold separately—compatible with universal, terminated, or Plug 'n' Play options

• Designed for competition/off-road vehicles only

• Refer to provided documentation for wiring, installation, and setup support

Emissions Notice:
Haltech products are for sanctioned off-road/competition use only and may not be legal for street use.
