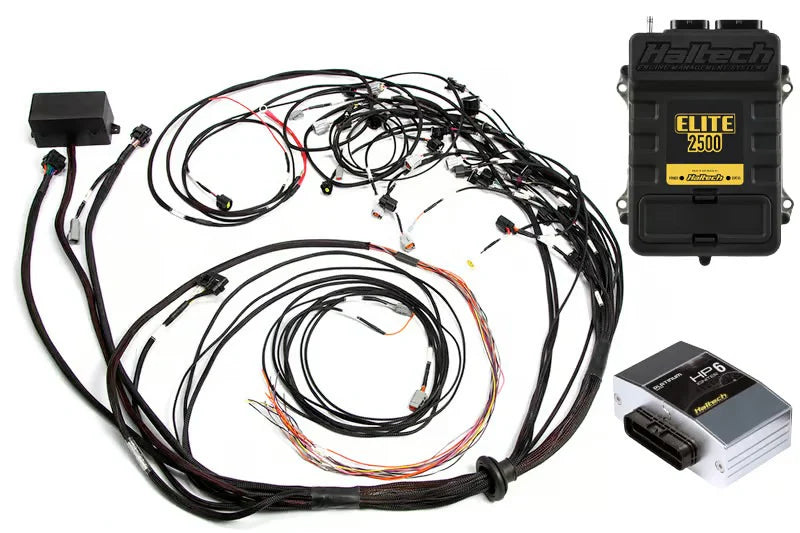

Haltech Elite 2500 + Terminated Harness Kit for Ford Falcon FG Barra 4.0L I6 (HT-151369)

The Haltech Elite 2500 Terminated Harness Kit is engineered for Ford Falcon FG models powered by the 4.0L Barra I6 engine. Supporting all turbocharged FG variants, this comprehensive package includes the powerful Elite 2500 ECU, terminated engine harness, fuse block, and pre-wired HPI6 ignition module—offering a robust, race-ready engine management solution with fast installation and full tuning flexibility.

Ideal for serious street and competition builds, this system enables precise control over boost, fuel, ignition, and variable cam timing with Haltech’s advanced Nexus Software Programmer (NSP) platform.

Note: For off-road and competition use only (NOT CARB LEGAL).

Key Features

• Vehicle Compatibility:

  • Ford Barra 4.0L I6 found in FG Falcon variants: 270T, 310T, 325T

• Plug-and-Play Integration:

  • Includes pre-terminated engine harness and fuse block

  • Suits Bosch EV1 injector connectors

  • Pre-wired HPI6 6-channel ignition module for factory coils

• Elite 2500 ECU Capabilities:

  • DBW support, variable camshaft control, flex fuel tuning

  • Dual knock sensing and closed-loop boost/O2 control

  • Data logging, CAN expansion, and race-grade outputs

Included Components

• Haltech Elite 2500 ECU

• Terminated engine harness with integrated fuse block

• HPI6 6-channel ignition module (HT-020036)

• Factory coil ignition harness

• Connector pack

• Quick Start Guide

Performance Features

• Racing Control:

  • Launch control, traction control, rolling anti-lag, flat shift, trans brake

  • Up to 6 stages of nitrous control with ignition/fuel mapping

  • Sequential turbo control and CO2 boost system compatibility

• Tuning Flexibility:

  • 4D tuning tables, per-cylinder corrections, and long-term learning (auto-tune)

  • Up to 32 × 32 × 8 table resolution

  • Support for wideband O2, EGT, ride height, and more via CAN

• Logging and Communication:

  • 2MB onboard data logging

  • Laptop-based logging via USB

  • Dual CAN Bus for Haltech dashes and accessories

Applications

• Ford Falcon FG (Barra 4.0L I6):

  • Barra 270T FG

  • Barra 310T

  • Barra 325T

• Manual and race-prepped setups
