Haltech Elite 2500 + Plug 'n' Play Adaptor Harness Kit for Mitsubishi EVO 9 & EVO 8 MR (Manual Transmission) - HT-151331

The Haltech Elite 2500 ECU with Plug 'n' Play Adaptor Harness Kit offers a powerful, fully programmable engine management solution for Mitsubishi EVO 9 (All Regions) and EVO 8 MR (6-Speed JDM only, excludes USDM) with manual transmission. Designed for serious performance and motorsport applications, the Elite 2500 provides extensive tuning flexibility, high-resolution control, and race-grade features in a sealed, IP67-rated enclosure. This kit simplifies installation using a factory-style adaptor harness for a seamless upgrade from the OEM ECU.

Important Emissions Notice:
This product is intended for use in sanctioned off-road or competition vehicles only and is not legal for use on public roads or highways unless a regulatory exemption exists.

Key Features:

• Plug 'n' Play ECU upgrade for Mitsubishi EVO 9 (All Regions) & EVO 8 MR 6-Speed (JDM Only)

• Manual transmission only (not compatible with automatic)

• Elite 2500 ECU features:

  • Drive-by-Wire (DBW) throttle control

  • Dual channel knock control

  • Variable camshaft control (up to 4 cams)

  • On-board and laptop data logging

  • Closed loop boost and idle control

  • Flex fuel capability with direct ethanol content tuning

  • Launch control, rolling anti-lag, traction control

  • Advanced tuning with 4D/3D mapping, per-cylinder adjustments

  • Dual CAN Bus communication with Haltech dashes and expansion devices

  • Up to 45 I/O channels with CAN expansion support

• NOT CARB LEGAL

ECU Technical Specs:

• 8 x Fuel Injection Outputs

• 8 x Ignition Outputs

• 12 x Digital Outputs

• 10 x Analog Voltage Inputs

• 4 x Synchronized Pulsed Inputs

• 2 x Dedicated Engine Position Inputs

• Waterproof, IP67-rated case

• USB tuning with Nexus Software Programmer (NSP)

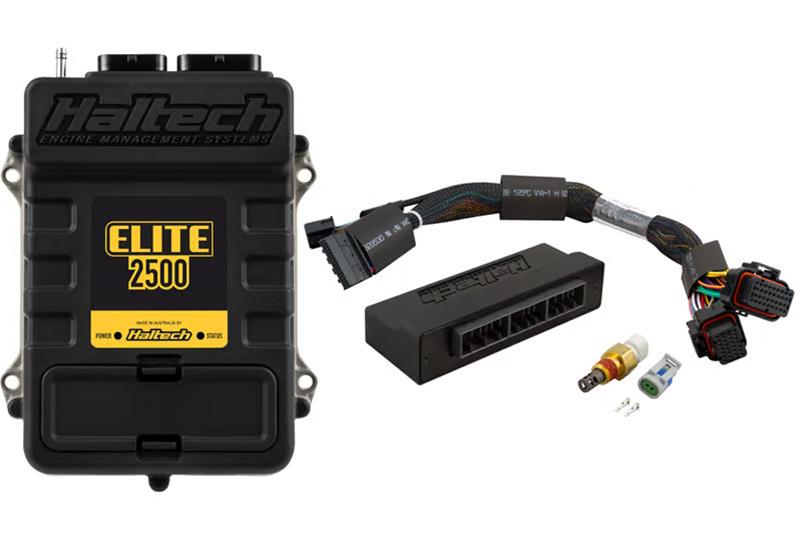

Includes:

• Haltech Elite 2500 ECU with Race Functions

• Injection-molded Plug 'n' Play adaptor harness

• M14 x 1.5 air temp sensor with connector and pins

• 16-pin TYCO auxiliary I/O plug and pins

• USB programming cable

Vehicle Fitment:

• Mitsubishi EVO 9 (All Regions) – Manual only

• Mitsubishi EVO 8 MR 6-Speed (JDM Only, excludes USDM) – Manual only

Brand: Haltech
SKU: HT-151331
