Haltech Elite 2500 + Nissan Patrol Y60 (TB42) Plug 'n' Play Adaptor Harness Kit (HT-151399)

Product Overview

Designed specifically for the Nissan Patrol Y60 with the TB42E engine, this Plug'n'Play ECU kit allows for a seamless and rapid installation. The Elite 2500 ECU delivers advanced engine control and motorsport-grade functionality, while the adaptor harness connects directly to your vehicle’s existing factory wiring—ideal for enthusiasts seeking precision tuning and reliability with minimal setup time.

Note: Suitable for vehicles with either automatic or manual transmissions. Transmission control features are not included.

Key Features

• Plug-and-Play Compatibility:

  • Direct replacement for factory ECU in Nissan Patrol Y60 (TB42E)

  • Supports both manual and automatic transmissions

• Advanced Control System:

  • Drive-by-wire support, flex fuel tuning, dual knock control

  • Pre-configured outputs allow optional upgrade to direct fire ignition (6 coils)

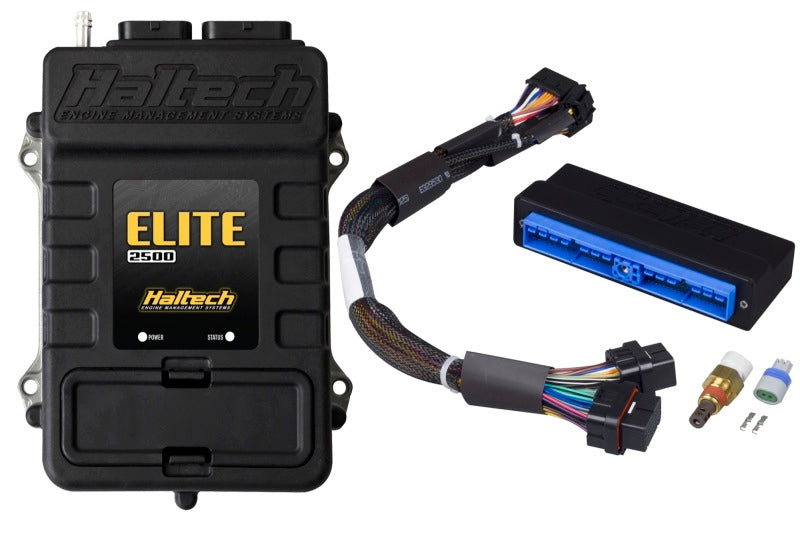

Included Components

• Elite 2500 ECU with DBW and Race Functions

• Injection-molded plastic Plug'n'Play adaptor harness

• M14 x 1.5 Air Temp Sensor with connector and pins

• Auxiliary I/O 16-pin TYCO connector with pins

• USB programming cable

• Quick Start Guide and software/manual (USB or CD)

Advanced ECU Capabilities

• 4D/3D tuning with auto-learning (fuel, ignition, boost, idle, cam)

• 40+ channels of data logging (on-board and laptop-based)

• Sequential, batch, or multipoint injection support

• Customizable boost control, traction control, anti-lag, and launch control

• Dual CAN support for Haltech dashes and OEM CAN integration

• Advanced race functions: CO2 boost, nitrous stages, flat shift, torque management, and more

• Engine protection strategies with multi-level limit settings

• Supports up to 12 cylinders and 4 rotors with extensive I/O expandability

Vehicle Applications

• Nissan Patrol / Safari Y60

• Engine: TB42E

• Transmission: Manual or Automatic

• Note: No shift control or reprogramming functions included
