Haltech Elite 2500 + Toyota LandCruiser 80 Series Plug'n'Play Adaptor Harness Kit (HT-151389)

The Haltech Elite 2500 Plug'n'Play Adaptor Harness Kit provides a powerful engine management upgrade for the Toyota LandCruiser 80 Series with the 1FZ-FE engine. Designed for MY95–97 manual transmission models, this kit enables modern tuning capabilities with minimal wiring effort by integrating seamlessly into the factory ECU harness. The included Elite 2500 ECU delivers full control over fuel, ignition, boost, and auxiliary functions with robust tuning and data logging capabilities.

Note: This kit is intended for competition/off-road use only. European model compatibility should be confirmed via ECU pinout.

Key Features

• Direct Fit for Toyota LandCruiser 80 Series (1995–1997):

  • Suits 1FZ-FE engine with manual transmission

  • Supports sub tank transfer system

• Seamless Integration:

  • Plug-and-play adaptor harness connects directly to factory ECU wiring

  • Allows optional upgrade to direct fire ignition using spare ignition outputs

• Elite 2500 ECU Capabilities:

  • Flex fuel support, DBW control, dual knock detection

  • Onboard and laptop data logging

  • Supports 1–12 cylinders or 2–4 rotor engines

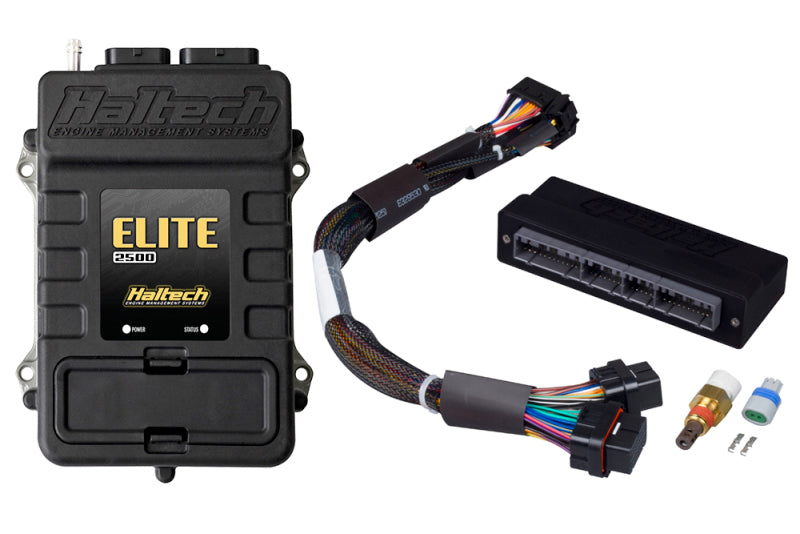

Included Components

• Haltech Elite 2500 ECU with DBW and race functions

• Plug'n'Play Adaptor Harness

• M14 x 1.5 air temp sensor with plug and pins

• Auxiliary I/O 16-pin TYCO plug and pins

• USB programming cable

• Quick Start Guide (on included USB drive)

Advanced Functions

• Race Features:

  • Launch control, anti-lag, rolling launch, traction control, flat shift

  • Boost control: 4D closed-loop, multiple boost targets, boost by gear/speed

  • Multi-stage nitrous and CO2 control systems

• Tuning Capabilities:

  • 32 × 32 × 8 resolution tuning tables

  • Per-cylinder 3D corrections, long-term learning (auto-tune)

  • Sequential, semi-sequential, batch, or multipoint injection support

• Expandability:

  • Dual CAN Bus for dash displays and expansion modules

  • Up to 45 input/output channels

Vehicle Applications

• Toyota LandCruiser 80 Series (MY95–97)

• 1FZ-FE engine with manual transmission only

• Note: Compatibility with European models must be confirmed by verifying ECU pinout with Haltech
