Haltech NEXUS R5 Plug & Pin Set

NEXUS R5 with Plug and Pin Set by Haltech

NEXUS R5 is the new Haltech flagship product combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).

Features

• Long Term Learning
• Stepper Motor Control
• 4D Closed Loop Boost Control
• Closed Loop CO2 Control
• Rotational Idle
• Launch Control
• Traction Control
• Anti-Lag
• Dual Knock Control
• Trans Brake Control
• Race Timer
• Multi Stage Fuel Injection
• Multi-level Engine Protection
• 6 Stage Nitrous Control
• 4-sensor variable cam control
• Intake Air Bleed Control
• Flat Shift Control
• Shock Travel & Ride Height Control
• Advanced Torque Management

Benefits

• 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
• 12 x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc)
• 18 x peak/hold injector drivers (can be used as low side drive outputs)
• 12 x low current ignition outputs (can be used as low side drive outputs)
• 8 x low side drive outputs, PWM capable (DPOs)
• 4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
• 23 x 0-5V analog inputs with redunancy for electronic throttle and switchable 5V pullup
• Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
• 10 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
• 2 x onboard wideband controllers, supporting NTK and LSU4.9
• 3 x CAN ports with switchable termination

Please Note: Suits Racing application where advanced race features, data logging and power management control is required.

Applications

• Universal

What's In The Box?

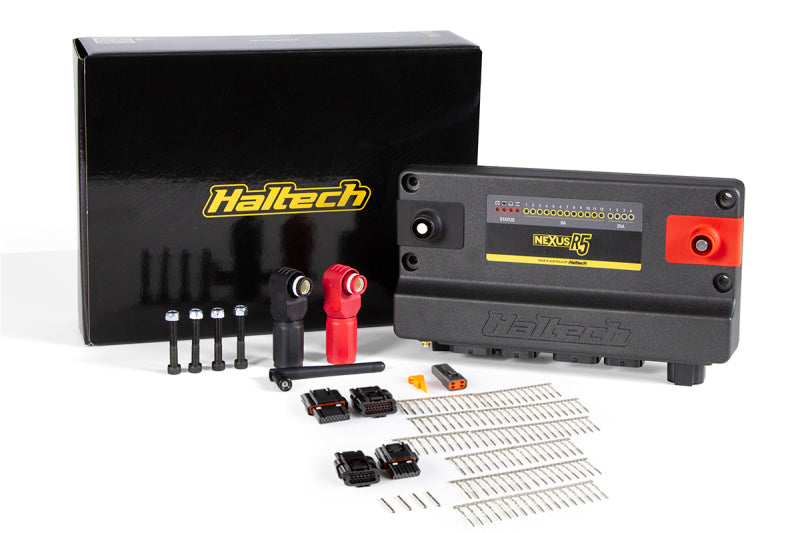

• 1 - NEXUS R5
• 2 - SurLok Connectors (Red & Black)
• 1 - Wi-Fi Antenna RP-SMA 108mm
• Mounting Bolts
• 1 - USB-C Cable
• 1 - USB-C Dust Cap
• 1 - USB drive with NSP Software
• 1 - Haltech Product Catalogue
• 1 - NEXUS R5 universal engine wiring harness
• 1 - Plug and pin set

References

• Nexus R5 Guide
• Plug and Pin Set Guide

Warranty

• Haltech Limited Warranty
