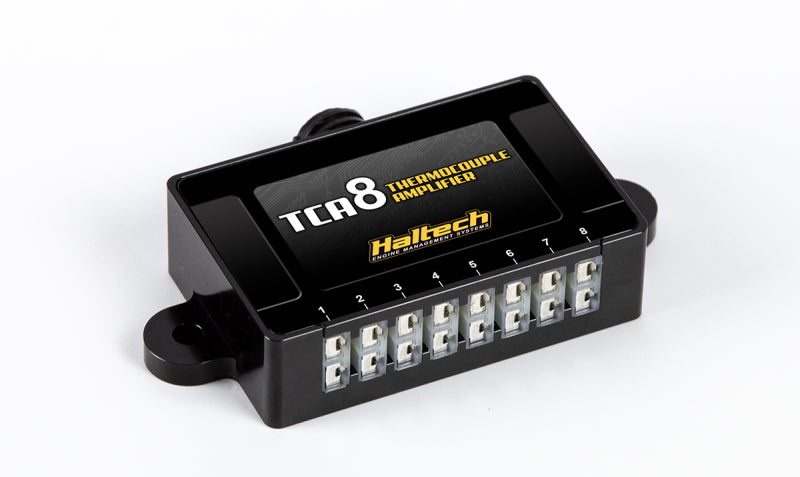

Haltech TCA8 Eight Channel Thermocouple Amplifier (Box Only)

TCA-8 Eight Channel Thermocouple Amplifier by Haltech

Haltech TCA8 Eight Channel Thermocouple Amplifier functions to convert the low output voltage signal from up to 8 Type K thermocouple probes into 8 independent linearized 0 to 5 VDC output voltages. This output is ideal for interfacing to dataloggers, aftermarket ECU's, temperature indicators, chart recorders, controllers, or other instrumentation equipment.

Features

• Temperature measurement range of 0 to 1000 degrees Celsius
• 8 input channels
• Outputs temperature via CAN bus communication to the ECU
• Interfaces to K-Type Thermocouples
• Input voltage range of 9 to 20 DC
• Rugged billet aluminum case

Benefits

• Ideal for interfacing to dataloggers
• Ideal for aftermarket ECU's
• Ideal for temperature indicators
• Ideal for chart recorders
• Ideal for controllers, or other instrumentation equipment.

Please Note: Thermocouple Probes sold separately

Applications

• Universal

What's In The Box?

• 1 - Eight Channel Thermocouple Amplifier Box
• 1 - Haltech CAN Cable DTM4 to Circular Connector
• 1 - Quick Start Guide
• 1 - Haltech Sticker

Warranty

• Haltech Limited Warranty
