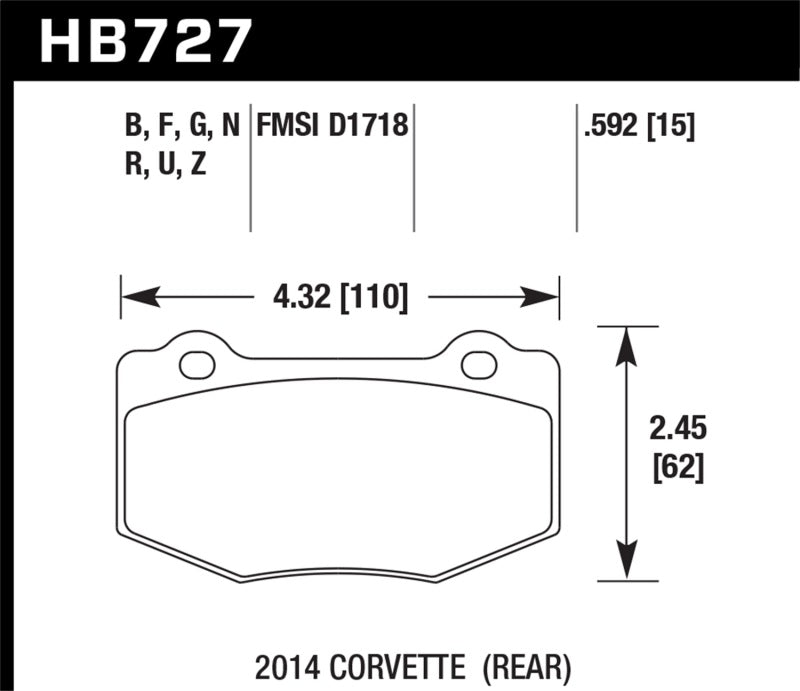

Hawk DTC-30 Rear Brake Pads For 14-20 Chevrolet Corvette/Camaro / ATS V / Ford Mustang - HB727W.592

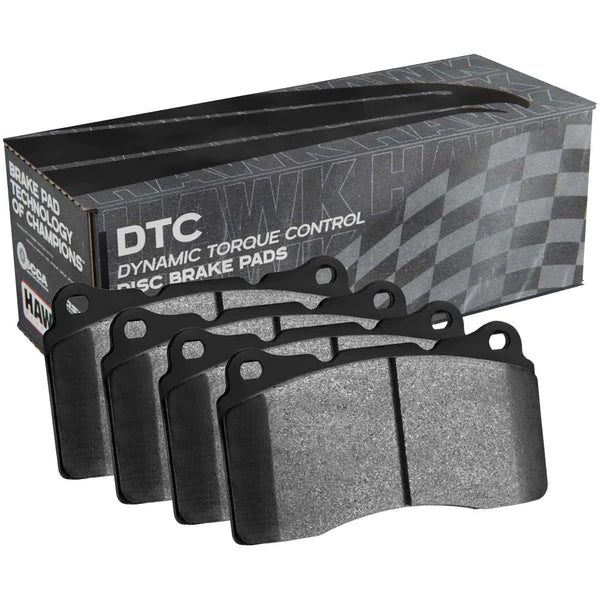

Hawk Performance DTC-30

DTC-30 is a controllable torque, multi-purpose compound, proven effective in a range of series. It delivers superior release characteristics and smooth pedal feel and initial bite for dirt and circle tracks, NASCAR modified, drag racing, trophy trucks, pro buggies, and more.

Expert Opinion

In addition to the applications mentioned above, the DTC-30 compound is often used on the rear axle of smaller race vehicles. Competitive racers of the Miata or S2000 will often choose DTC-30 for the rear axle paired with DTC-60 on the front. DTC-30 will also find itself on both axles of street driven vehicles when braking performance is top priority and owner is willing to sacrifice cleanliness and lack of brake noise.

Hawk Performance DTC-30 Race Compound Characteristics:

• Consistent, Smooth Braking
• Effective when Cold
• 100-1200 Deg F Operating Temperature Range
• 100-800 Deg F Optimal Temperature Range

Hawk Race Compound Chart

Hawk Brake Pad Installation Procedure

• Install Brake pads properly. Be sure pads are securely positioned in the caliper.
• Flush system with fresh brake fluid.
• Check all hydraulic parts for excess wear and tear.
• Check disc for proper thickness, parallelism, and lateral run-out.
• Check disc for scoring or grooves over .012"" depth. If either applies, resurfacing or replacement is required.
• If disc does not need resurfacing then contamination from the previous brake pads must be removed. Sand discs with Garnet sandpaper using moderate pressure. Use soap and water to clean off disc surface after sanding and machining. Discs should be free and clear of oil, grease, and brake fluid
• Inspect calipers for freedom of movement. Lubricate where necessary

Hawk Brake Pad Bedding Procedure - Motorsports Pads

• After reaching medium speed engage brake pedal to slow car without coming to a complete stop. Release pedal quickly and do not drag brakes. Repeat four or five times.
• At higher speeds engage brake pedal to slow car without coming to a complete stop. Release pedal quickly and do not drag brakes. Repeat five times.
• At or near race speed engage brake pedal to slow car without coming to a complete stop. Release pedal quickly and do not drag brakes. Repeat three times. Allow a few seconds between brake engagements while car is in motion.
• Do not hold brake pedal. Park car for approximately 20 minutes or until brake rotors are completely cool to the touch.
• If during the above steps the brake pedal becomes soft or brake fade is noticed, park the car immediately for approximately 20 minutes. Do not hold brake pedal.

Important Reminders when Burnishing or Bedding Brake Pads

• Do not attempt to use badly worn or damaged rotors with new brake pads.
• Do not drag brakes while car is moving during break-in procedure.
• Do not engage pedal while car is stopped at any time following the break-in procedure.
• Upon completing the procedure, allow the brake system to completely cool before racing.
• Applying the pedal a few times before the start of the race will allow the brake pads to heat up before attempting to reach race speeds.
li>Clean a used rotor surface with fine sand paper or steel wool, rinse with water, dry and install before bedding new pads
• Some forms of racing do not allow time for the proper break-in procedure to be performed. However, it is still very important to attempt to perform at least the core of the procedure: Build up heat slowly and allow the system to completely cool down before racing if possible.

This part is for the Rear of:

• 2020 Ford Mustang Shelby GT500
• 2018 Chevrolet Corvette Z06 6.2L Exc.Ceramic Composite Brakes, OE Incl.Shims
• 2018 Chevrolet Corvette Stingray 6.2L Performance Package, OE Incl.Shims
• 2018 Chevrolet Corvette Stingray 6.2L Exc.Performance Package, OE Incl.Shims
• 2018 Chevrolet Corvette Grand Sport 6.2L Exc.Ceramic Composite Brakes, OE Incl.Shims
• 2018 Chevrolet Camaro SS 6.2L OE Incl.Shims
• 2017 Chevrolet Corvette Z51
• 2017 Chevrolet Corvette Z06 6.2L Exc.Ceramic Composite Brakes, OE Incl.Shims
• 2017 Chevrolet Corvette Stingray 6.2L Performance Package, OE Incl.Shims
• 2017 Chevrolet Corvette Stingray 6.2L Exc.Performance Package, OE Incl.Shims
• 2017 Chevrolet Corvette Grand Sport 6.2L Exc.Ceramic Composite Brakes, OE Incl.Shims
• 2017 Chevrolet Camaro SS 6.2L OE Incl.Shims
• 2017 Chevrolet Camaro
• 2017 Cadillac ATS V
• 2016 Chevrolet Corvette Z51
• 2016 Chevrolet Corvette Z06 6.2L Exc.Ceramic Composite Brakes, OE Incl.Shims
• 2016 Chevrolet Corvette Stingray 6.2L Performance Package, OE Incl.Shims
• 2016 Chevrolet Corvette Stingray 6.2L Exc.Performance Package, OE Incl.Shims
• 2016 Chevrolet Corvette Grand Sport
• 2016 Chevrolet Camaro SS 6.2L OE Incl.Shims
• 2016 Chevrolet Camaro Heavy Duty Brakes
• 2016 Chevrolet Camaro
• 2015 Chevrolet Corvette Z06 6.2L Exc.Ceramic Composite Brakes, OE Incl.Shims
• 2015 Chevrolet Corvette Stingray 6.2L Performance Package, OE Incl.Shims
• 2015 Chevrolet Corvette Stingray 6.2L Exc.Performance Package, OE Incl.Shims
• 2015 Chevrolet Corvette Heavy Duty
• 2015 Chevrolet Corvette
• 2015 Chevrolet Corvette
• 2014 Chevrolet Corvette Z51
• 2014 Chevrolet Corvette Stingray 6.2L OE Incl.Shims
• 2014 Chevrolet Corvette
