  • HKS FA20 Bolt On Turbo Pro Kit GTIII-RS ZN6/ZC6 17-20 Toyota 86/ 13-20 BRZ / 13-16 FR-S - 11001-KT001
-10%
HKS FA20 Bolt On Turbo Pro Kit GTIII-RS ZN6/ZC6 17-20 Toyota 86/ 13-20 BRZ / 13-16 FR-S - 11001-KT001 HKS
HKS FA20 Bolt On Turbo Pro Kit GTIII-RS ZN6/ZC6 17-20 Toyota 86/ 13-20 BRZ / 13-16 FR-S - 11001-KT001 HKS
HKS FA20 Bolt On Turbo Pro Kit GTIII-RS ZN6/ZC6 17-20 Toyota 86/ 13-20 BRZ / 13-16 FR-S - 11001-KT001 HKS
Click to zoom in
Load image into Gallery viewer, HKS FA20 Bolt On Turbo Pro Kit GTIII-RS ZN6/ZC6 17-20 Toyota 86/ 13-20 BRZ / 13-16 FR-S - 11001-KT001 HKS
Load image into Gallery viewer, HKS FA20 Bolt On Turbo Pro Kit GTIII-RS ZN6/ZC6 17-20 Toyota 86/ 13-20 BRZ / 13-16 FR-S - 11001-KT001 HKS
Load image into Gallery viewer, HKS FA20 Bolt On Turbo Pro Kit GTIII-RS ZN6/ZC6 17-20 Toyota 86/ 13-20 BRZ / 13-16 FR-S - 11001-KT001 HKS

HKS FA20 Bolt On Turbo Pro Kit GTIII-RS ZN6/ZC6 17-20 Toyota 86/ 13-20 BRZ / 13-16 FR-S - 11001-KT001

2 sold in last 8 hours
HKS
HKS11001-KT001
In stock
Turbo Kits
$4,800.00 $4,320.00
HKS has released a long-waited Bolt-on Turbo Kit with GTIII-RS turbine for 86/BRZ.GTIII-RS turbine that is the best match with 2L engine, special designed turbo housing, and other special parts...

HKS FA20 Bolt On Turbo Pro Kit GTIII-RS ZN6/ZC6 17-20 Toyota 86/ 13-20 BRZ / 13-16 FR-S - 11001-KT001
Description

HKS has released a long-waited Bolt-on Turbo Kit with GTIII-RS turbine for 86/BRZ.
GTIII-RS turbine that is the best match with 2L engine, special designed turbo housing, and other special parts are made by HKS special turbo technology.
This kit is available from a stock to tuned engine.
The engine output will reach 450ps when this kit is installed to a tuned engine.

*Another kit including the extension with CAT is additionally available.

  • TOYOTA 86 FA20 2017 - 2020
  • BRZ FA20 2013 - 2020
  • FR-S FA20 2013 - 2016

This kit can be used with HKS S-TYPE OIL COOLER KIT.
OIL COOLER KIT is NOT included in this kit.
This is an image of a prototype and may differ from the actual product.

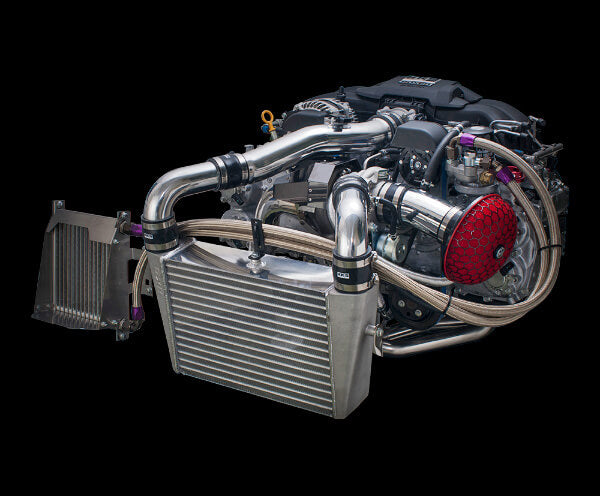

KIT PARTS

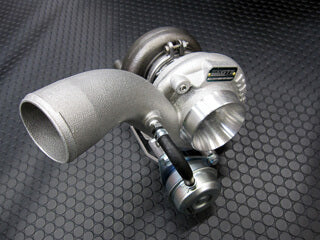

  • GTIII-RS Turbocharger Assy with an actuator.
  • Oil & Water Piping Parts
  • Air Cleaner, Suction Pipe
  • Front-mounted Intercooler, Piping
  • Exhaust Manifold,
  • For 11001-KT001, CATless Extension
  • For 11001-AT005, Extension with CAT
  • Insulator Cover, Insulator Sheet
  • Gaskets, Brackets, Bolts, etc.

This results were obtained through the in-house test.
The actual values may be different due to the measuring instrument and/or each vehicle's specifications.

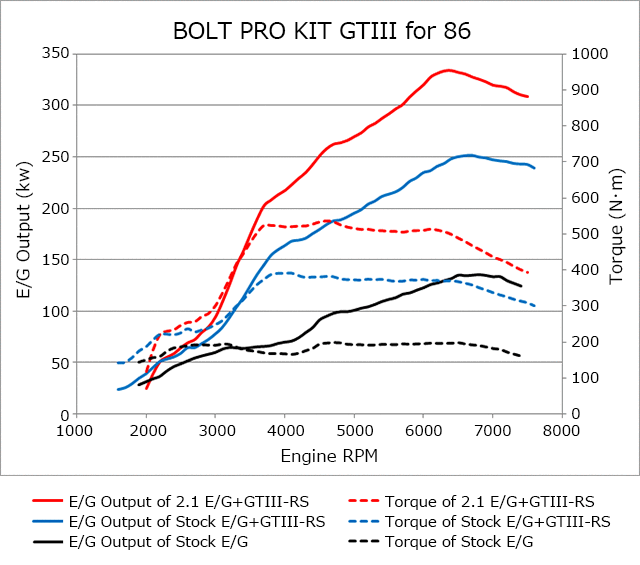

MAX ENGINE OUTPUT
2.1L E/G + GTIII-RS : 334kw(454ps)/6400rpm
Stock E/G+ GTIII-RS : 251kw(342ps)/6600rpm
NA Stock : 136kw(185ps)/6800rpm

MAX TORQUE
2.1L E/G + GTIII-RS : 536N･m(55kgf･m)/4600rpm
Stock E/G+ GTIII-RS : 391N･m(40kgf･m)/4100rpm
NA Stock : 199N･m(20kgf･m)/4100rpm

Stock Engine Test Vehicle Spec.

  • LEGAMAX SPORTS
  • FLASH EDITOR
  • EVC6 IR
  • I/J 440cc
  • LA CLUTCH


2.1L Engine Test Vehicle Spec.

  • 2.1L Piston, Con'rod, Crankshaft, Camshaft, Gasket
  • SUPER FIRE RACING M45HL
  • Hi-POWER Muffler
  • Prototype Front Pipe, Prototype CATless Center Pipe
  • Reinforced fuel parts
  • FLASH EDITOR
  • EVC6 IR



NOTE

※Reinforced fuel parts such as injectors are required.
※Pressure sensor is required separately.
※Engine management parts are not included in this kit.
※Resetting is required.
※Vehicle modification is required in order to install this kit (Refer to the separated information.)
※Reinforced clutch is required to avoid slippage of the clutch disk that may occur due to significant torque characteristic change.
※It is strongly recommended to install an oil cooler to protect the engine.
