Hot Cams 9.48 mm Complete Valve Shim Kit - HCSHIM02

The Hot Cams 9.48 mm Complete Valve Shim Kit HCSHIM02 is designed for the Arctic Cat, Honda, Kawasaki, Suzuki, Yamaha models listed below. It provides an application-specific valvetrain or timing-system component while keeping the product tied to the correct manufacturer part number.

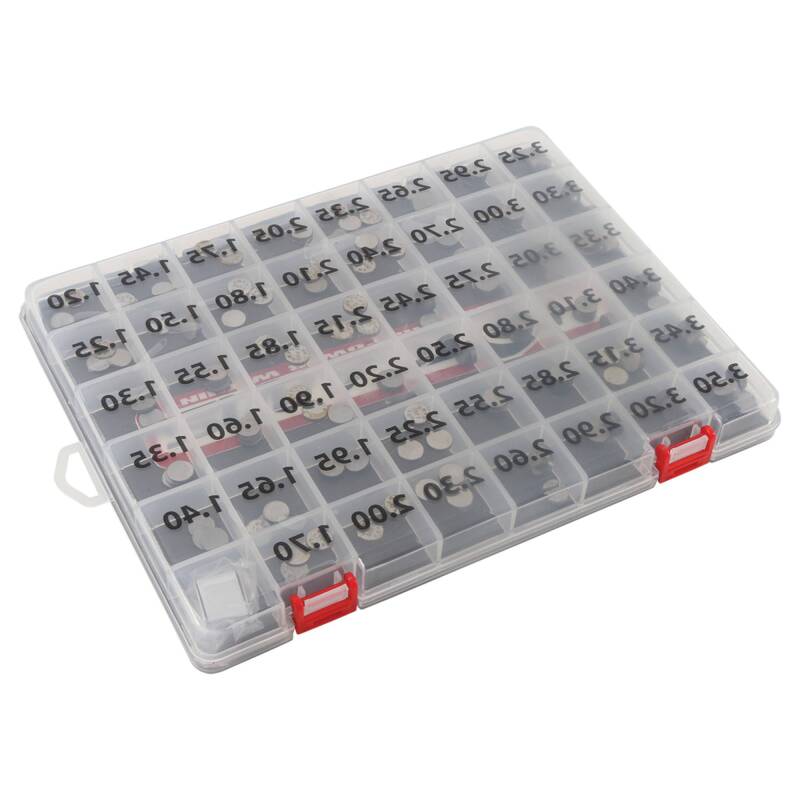

This Hot Cams complete valve shim kit covers 9.48 mm diameter valve shims from 1.20-3.50 mm in 0.05 mm increments. It includes 3 shims per size, providing a broad selection for accurate valve-clearance service.

Features

• Complete 9.48 mm valve shim assortment
• Thickness range of 1.20-3.50 mm
• 0.05 mm thickness increments
• 3 shims per size
• 4140 cold-rolled steel construction

Specifications

• Brand: Hot Cams
• Product Type: Shim Kit
• Shim Diameter: 9.48 mm
• Thickness Range: 1.20-3.50 mm
• Thickness Increment: 0.05 mm
• Quantity Per Size: 3
• Hardness: 55-60 HRC
• Manufacturer Part Number: HCSHIM02

Vehicle Fitment

Compatible Make(s): Arctic Cat, Honda, Kawasaki, Suzuki, Yamaha

• 400 DVX (2004-2008)
• CRF 250 R (2018-2025)
• CRF 250 RX (2019-2025)
• CRF 450 R (2002-2025)
• CRF 450 RL (2021-2025)
• CRF 450 RWE (2019-2025)
• CRF 450 RX (2017-2025)
• CRF 450 X (2005-2017, 2019-2025)
• Pioneer 1000 (2016-2024)
• Pioneer 1000 DELUXE (2020-2024)
• Pioneer 1000 FOREST (2022-2024)
• Pioneer 1000 Ltd (2017-2019, 2021)
• Pioneer 1000 TRAIL (2022-2024)
• Pioneer 1000-5 (2016-2024)
• Pioneer 1000-5 DELUXE (2016-2024)
• Pioneer 1000-5 FOREST (2022-2024)
• Pioneer 1000-5 Ltd (2017-2021)
• Pioneer 1000-5 TRAIL (2022-2024)
• Pioneer 1000-6 DELUXE (2023-2024)
• Talon 1000R FOX LIVE SXS1000S2R (2021)
• Talon 1000R SXS1000S2R (2019-2024)
• Talon 1000R-4 FOX LIVE SXS1000S4R (2023-2024)
• Talon 1000RS SXS1000S2R (2023)
• Talon 1000X FOX LIVE SXS1000S2X (2021)
• Talon 1000X SXS1000S2X (2019-2024)
• Talon 1000X-4 FOX LIVE SXS1000S4D (2020-2022)
• Talon 1000X-4 FOX LIVE SXS1000S4X (2023-2024)
• Talon 1000X-4 SXS1000S4 (2020-2022)
• Talon 1000X-4 SXS1000S4X (2024)
• Talon 1000XS SXS1000S2X (2023)
• Talon 1000XS-4 SXS1000S4X (2023)
• TRX 450 ER (2006-2014)
• TRX 450 R (2004-2009)
• DR-Z 400 (2000-2016)
• DR-Z 400 E (2000-2007)
• DR-Z 400 S (2000-2024)
• DR-Z 400 SM (2005-2024)
• LT-R 450 (2006-2009)
• LT-Z 400 (2003-2013)
• RM-Z 450 (2005-2025)
• KFX 400 (2003-2006)
• KFX 450 R (2008-2014)
• KLX 400 R (2003-2004)
• KLX 450 R (2008-2009)
• KX 450 F (2008-2017)
• WR 250 F (2014-2025)
• WR 450 F (2003-2025)
• YFZ 450 (2004-2013)
• YFZ 450 LE (2004)
• YFZ 450 R (2009-2024)
• YFZ 450 R SE (2009-2024)
• YFZ 450 SE (2005-2009)
• YFZ 450 V Bill Balance Edition (2006-2007)
• YFZ 450 X (2010-2011)
• YFZ 450 X Bill Balance Edition (2010)
• YFZ 450 X SE (2011)
• YZ 250 F (2014-2025)
• YZ 250 FX (2015-2025)
• YZ 400 F (1998-1999)
• YZ 426 F (2000-2002)
• YZ 450 F (2003-2025)
• YZ 450 FX (2016-2025)

Fitment Note: Confirm the exact year, model, engine, valve-train configuration, and required component quantity before ordering. Cam timing, valve lash, installed height, spring clearance, and related engine measurements must be verified during installation where applicable.
