Hot Cams 7.48 mm Complete Valve Shim Kit - HCSHIM01

The Hot Cams 7.48 mm Complete Valve Shim Kit HCSHIM01 is designed for the Honda, Kawasaki, Suzuki, Yamaha models listed below. It provides an application-specific valvetrain or timing-system component while keeping the product tied to the correct manufacturer part number.

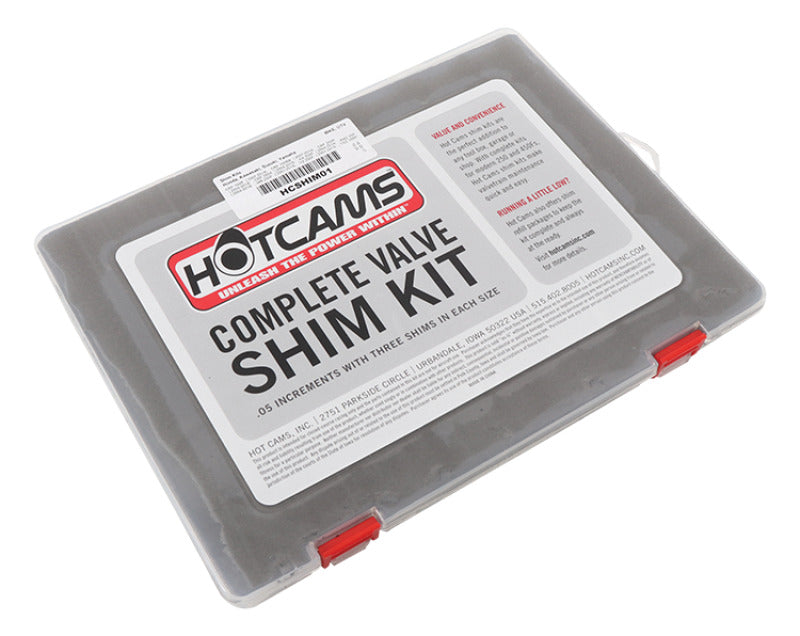

This Hot Cams complete valve shim kit covers 7.48 mm diameter valve shims from 1.20-3.50 mm in 0.05 mm increments. It includes 3 shims per size, providing a broad selection for accurate valve-clearance service.

Features

• Complete 7.48 mm valve shim assortment
• Thickness range of 1.20-3.50 mm
• 0.05 mm thickness increments
• 3 shims per size
• 4140 cold-rolled steel construction

Specifications

• Brand: Hot Cams
• Product Type: Shim Kit
• Shim Diameter: 7.48 mm
• Thickness Range: 1.20-3.50 mm
• Thickness Increment: 0.05 mm
• Quantity Per Size: 3
• Hardness: 55-60 HRC
• Manufacturer Part Number: HCSHIM01

Vehicle Fitment

Compatible Make(s): Honda, Kawasaki, Suzuki, Yamaha

• CRF 150 R (2007-2025)
• CRF 150 RB Big Wheel (2007-2009, 2012-2025)
• CRF 250 F (2019-2024)
• CRF 250 L (2013-2020)
• CRF 250 L ABS (2017-2020)
• CRF 250 R (2004-2017)
• CRF 250 RL RALLY (2017-2020)
• CRF 250 RLA RALLY ABS (2017-2020)
• CRF 250 X (2004-2017)
• CRF 300 L (2021-2024)
• CRF 300 L ABS (2021-2024)
• CRF 300 LR (2021-2024)
• CRF 300 LR ABS (2021-2024)
• CRF 300 LS (2024)
• NX 250 (1988-1990)
• DR-Z 250 (2001-2007)
• RM-Z 250 (2004-2024)
• KX 250 F (2004-2019)
• WR 250 F (2001-2013)
• WR 250 R Dual Sport (2008-2020)
• WR 250 X Supermoto (2008-2011)
• YXZ 1000 YEC YXZ 1000 R EPS SS SE (2020)
• YXZ 1000 YES YXZ 1000 R EPS SS SE (2017-2019, 2021)
• YXZ 1000 YES YXZ 1000 R EPS SS XT-R (2020)
• YXZ 1000 YEX YXZ 1000 R EPS SS (2017-2022)
• YXZ 1000 YEZ YXZ 1000 R EPS SS XT-R (2021-2024)
• YXZ 1000 YMS YXZ 1000 R EPS SE (2017-2020)
• YXZ 1000 YMX YXZ 1000 R EPS (2017-2024)
• YXZ 1000 YPS YXZ 1000 EPS SE (2016)
• YXZ 1000 YPX YXZ 1000 EPS (2016)
• YZ 250 F (2001-2013)
• WR 250 X Supermoto (2008-2011)

Fitment Note: Confirm the exact year, model, engine, valve-train configuration, and required component quantity before ordering. Cam timing, valve lash, installed height, spring clearance, and related engine measurements must be verified during installation where applicable.
