ICON 3-4in Stage 8 Billet Suspension System for 2021-2023 Bronco Non-Sasq - K40008X

Upgrade the suspension on your 2021-2023 Bronco Non-Sasq with the ICON Vehicle Dynamics 3-4in Stage 8 Billet Suspension System, part number K40008X. This complete kit brings the specified ICON suspension components together in one package, giving you an easier way to buy the full system without tracking down each part individually.

This suspension system is designed to provide up to 11.5" of front suspension travel and 14" of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37" and larger tires if using the optional up-travel limiters (sold separately). The factory crash bars on non-Sasquatch equipped Broncos must be removed to clear 35" and larger tires, but ICON now offers a replacement High Clearance Crash Bar set for those who would like to run larger tires and retain the functionality of the crash bars.

For buyers who want the complete 3-4in Stage 8 Billet Suspension System instead of piecing a suspension together one part number at a time, the K40008X kit keeps the listed ICON components together as one package. You can see exactly what is included below, along with the application and wheel/tire notes needed to confirm the setup for your vehicle.

• Brand: ICON Vehicle Dynamics
• Part Number: K40008X
• System: 3-4in Stage 8 Billet Suspension System
• Fitment: 2021-2023 Bronco Non-Sasq
• Total Kit Weight: 216 lb
• GTIN: 00840103424057

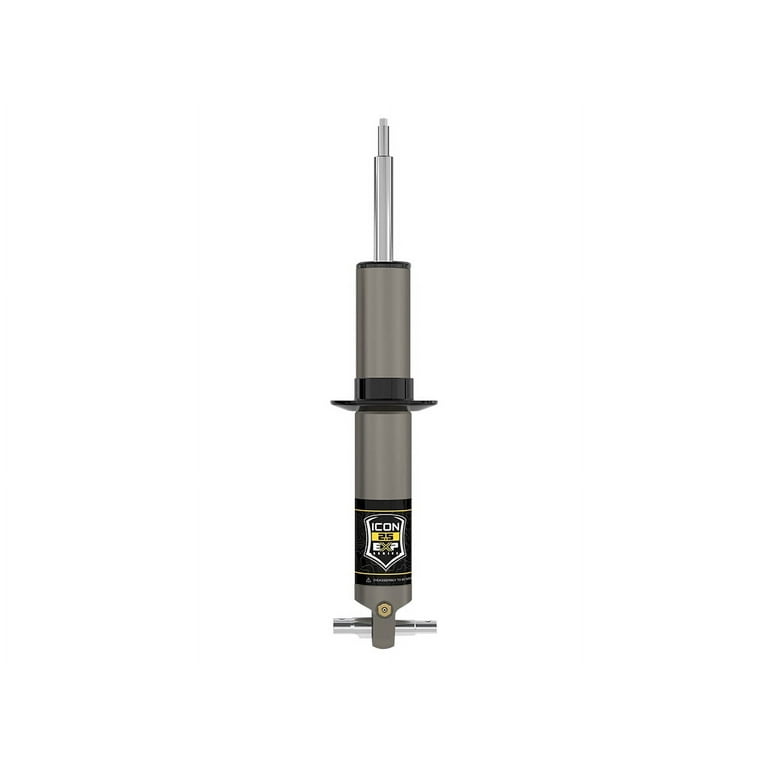

• Qty 1 – 48700E: 21-23 Bronco Front 2.5 VS RR Cdev Coilover Kit
• Qty 1 – 48500DJ: 21-23 Bronco Billet UCA Dj Pro Kit
• Qty 1 – 44100: 21-23 Bronco Billet Rear Upper Link Kit
• Qty 1 – 44000: 21-23 Bronco Billet Rear Lower Link Kit
• Qty 1 – 44200T: 21-23 Bronco Rear Adj Track Bar Kit
• Qty 1 – 43501: 21-23 Bronco Iic Install Kit
• Qty 1 – 48711E: 21-23 Bronco Rear 2.5 VS RR Cdev Coilover Kit Heavy Rate Spring

• Application Notes: 66, 132, 133, 135, 138, 139, 150, 186
• Tire & Wheel: 35X12.50 On 8.5” Wide Wheel W/ 4.75” Backspace

• 2021-2023 Bronco Non-Sasq
