ICON 2-3in Stage 3 Tubular Suspension System for 2021-2023 Bronco Sasquatch - K40013TX

Upgrade the suspension on your 2021-2023 Bronco Sasquatch with the ICON Vehicle Dynamics 2-3in Stage 3 Tubular Suspension System, part number K40013TX. This complete kit brings the specified ICON suspension components together in one package, giving you an easier way to buy the full system without tracking down each part individually.

The ICON Vehicle Dynamics Stage 3 Suspension System for the 2021-2023 Ford Bronco features our precision-manufactured, custom valved internal reservoir coilover shocks to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 2-3” of front lift and 1.25-2.25” of rear lift over stock 4-door Broncos with the Sasquatch Package. To accommodate the increased travel and lift height afforded by the ICON Coilovers, this Stage 3 kit comes with Tubular Upper Control Arms which provide caster correction and feature our patented Delta Joint PRO, which allows for up to 90-desgrees freedom of movement.

For buyers who want the complete 2-3in Stage 3 Tubular Suspension System instead of piecing a suspension together one part number at a time, the K40013TX kit keeps the listed ICON components together as one package. You can see exactly what is included below, along with the application and wheel/tire notes needed to confirm the setup for your vehicle.

• Brand: ICON Vehicle Dynamics
• Part Number: K40013TX
• System: 2-3in Stage 3 Tubular Suspension System
• Fitment: 2021-2023 Bronco Sasquatch
• Total Kit Weight: 137 lb
• GTIN: 00840103424064

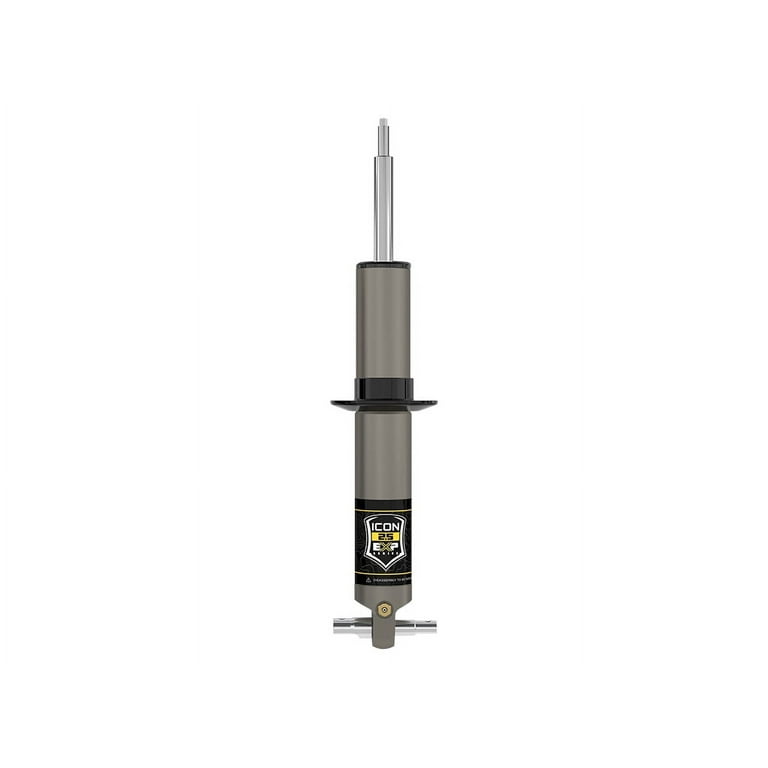

• Qty 1 – 48600: 21-23 Bronco Front 2.5 VS IR Coilover Kit
• Qty 1 – 48400DJ: 21-23 Bronco Tubular UCA Dj Pro Kit
• Qty 1 – 48613: 21-23 Bronco Rear 2.5 VS IR Coilover Kit Heavy Rate Spring

• Application Notes: 66, 132, 133, 134, 150
• Tire & Wheel: 35X12.50 On 8.5” Wide Wheel W/ 4.75” Backspace

• 2021-2023 Bronco Sasquatch
