ICON 2-3in Stage 5 Tubular Suspension System for 2021-2023 Bronco Sasquatch - K40015X

Upgrade the suspension on your 2021-2023 Bronco Sasquatch with the ICON Vehicle Dynamics 2-3in Stage 5 Tubular Suspension System, part number K40015X. This complete kit brings the specified ICON suspension components together in one package, giving you an easier way to buy the full system without tracking down each part individually.

To accommodate the increased travel and lift height afforded by the ICON Coilovers, this Stage 5 kit comes with Billet Aluminum Upper Control Arms which provide on-vehicle caster and camber adjustability and feature our patented Delta Joint PRO, which allows for up to 90-degrees freedom of movement. Stage 5 begins to free up the Bronco's rear suspension articulation while gaining strength and ground clearance with the addition of ICON billet aluminum rear lower suspension links. These billet links also feature on-vehicle length adjustment and replaceable rock skids.

For buyers who want the complete 2-3in Stage 5 Tubular Suspension System instead of piecing a suspension together one part number at a time, the K40015X kit keeps the listed ICON components together as one package. You can see exactly what is included below, along with the application and wheel/tire notes needed to confirm the setup for your vehicle.

• Brand: ICON Vehicle Dynamics
• Part Number: K40015X
• System: 2-3in Stage 5 Tubular Suspension System
• Fitment: 2021-2023 Bronco Sasquatch
• Total Kit Weight: 177 lb
• GTIN: 00840103424118

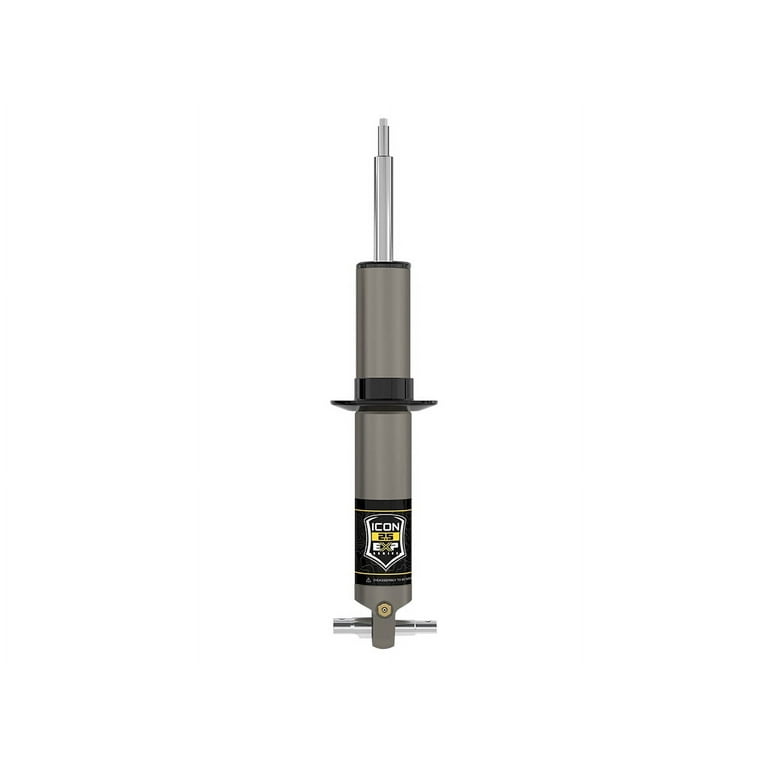

• Qty 1 – 48700: 21-23 Bronco Front 2.5 VS RR Coilover Kit
• Qty 1 – 48500DJ: 21-23 Bronco Billet UCA Dj Pro Kit
• Qty 1 – 44000: 21-23 Bronco Billet Rear Lower Link Kit
• Qty 1 – 48711: 21-23 Bronco Rear 2.5 VS RR Coilover Kit Heavy Rate Spring

• Application Notes: 66, 132, 133, 134, 150, 186
• Tire & Wheel: 35X12.50 On 8.5” Wide Wheel W/ 4.75” Backspace

• 2021-2023 Bronco Sasquatch
