ICON 0-3.5in Stage 4 Billet UCA Suspension System for 2010-Up GX 460 - K53184

Upgrade the suspension on your 2010-Up GX 460 with the ICON Vehicle Dynamics 0-3.5in Stage 4 Billet UCA Suspension System, part number K53184. This complete kit brings the specified ICON suspension components together in one package, giving you an easier way to buy the full system without tracking down each part individually.

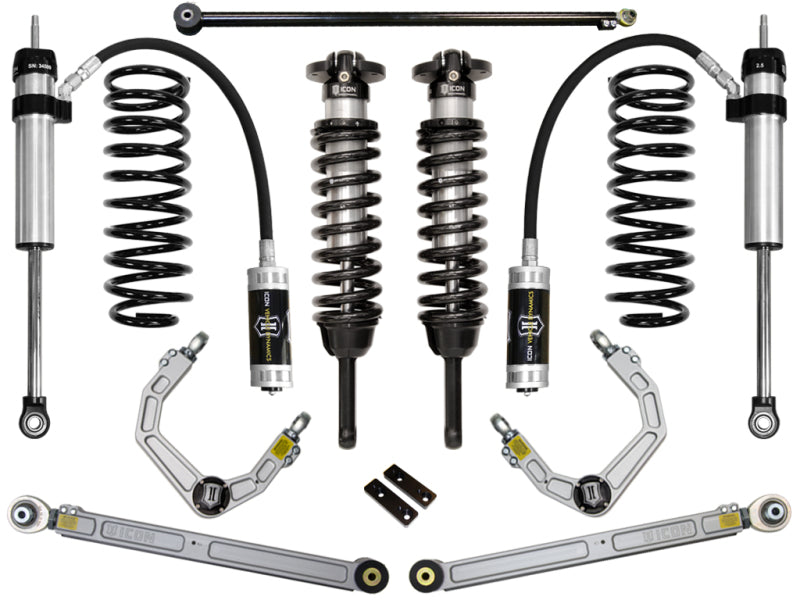

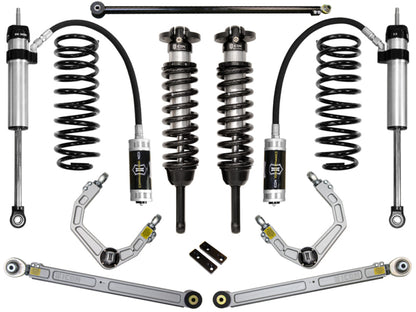

The Stage 4 system includes vehicle-specific tuned, extended travel 2.5” coilover shocks with internal reservoirs paired with billet aluminum Delta Joint upper control arms. This combination allows for extended wheel travel and on-vehicle adjustment of the upper control arms to dial in front end alignment. The coilovers are also height adjustable from 0-3.5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations.

For buyers who want the complete 0-3.5in Stage 4 Billet UCA Suspension System instead of piecing a suspension together one part number at a time, the K53184 kit keeps the listed ICON components together as one package. You can see exactly what is included below, along with the application and wheel/tire notes needed to confirm the setup for your vehicle.

• Brand: ICON Vehicle Dynamics
• Part Number: K53184
• System: 0-3.5in Stage 4 Billet UCA Suspension System
• Fitment: 2010-Up GX 460
• Configuration: Billet upper control arm configuration
• Total Kit Weight: 157 lb
• GTIN: 00840103417851

• Qty 1 – 58647: 10-14 Fj/10-24 4Rnr/10-23 Gx Ext Travel 2.5 VS IR Coilover Kit
• Qty 1 – 58551DJ: 07-14 Fj/03-24 4Rnr/03-23 Gx Billet UCA Dj Kit
• Qty 1 – 54000: 07-14 Fj/03-24 4Rnr/08-21 Lc 200/03-23 Gx Billet Lower Trailing Arm Kit
• Qty 1 – 52700: 07-14 Fj/03-24 4Rnr/03-23 Gx Rear 2" Spring Kit
• Qty 1 – 54200: 07-14 Fj/03-24 4Rnr/03-23 Gx Rear Adj Track Bar Kit
• Qty 1 – 57810P: 07-23 Fj/03-24 4Rnr/03-23 Gx 1-3" Rear 2.5 VS RR Pair

• Application Notes: 33, 35, 46, 47, 55
• Tire & Wheel: 33X11.50 On 8.5" Wide Wheel W/ 4.75" Backspace

• 2010-Up GX 460
