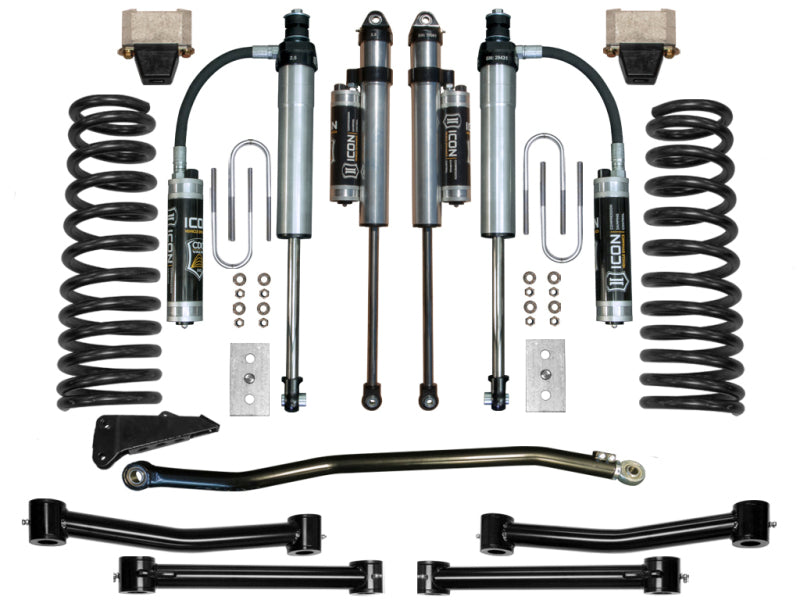

ICON 4.5in Stage 5 Suspension System for 2003-2008 Ram 2500/3500 4WD - K214504T

Upgrade the suspension on your 2003-2008 Ram 2500/3500 4WD with the ICON Vehicle Dynamics 4.5in Stage 5 Suspension System, part number K214504T. This complete kit brings the specified ICON suspension components together in one package, giving you an easier way to buy the full system without tracking down each part individually.

2003-2008 Ram 2500/3500 4.5" Stage 5 Suspension System utilizes the same technology as the 2.5" systems while adding lift height, ground clearance, and user adjustability. Additional engineered front-end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. The Stage 5 System is comprised of dual rate coil springs, tubular steel upper & lower link arms, polyurethane bump stops w/ billet extension, sway bar drop brackets, forged pitman arm, track bar drop bracket, 2.5 Aluminum Series shocks w/ CDCV, bearing style adjustable track bar, and rear 2.5" lift blocks.

For buyers who want the complete 4.5in Stage 5 Suspension System instead of piecing a suspension together one part number at a time, the K214504T kit keeps the listed ICON components together as one package. You can see exactly what is included below, along with the application and wheel/tire notes needed to confirm the setup for your vehicle.

• Brand: ICON Vehicle Dynamics
• Part Number: K214504T
• System: 4.5in Stage 5 Suspension System
• Fitment: 2003-2008 Ram 2500/3500 4WD
• Total Kit Weight: 270 lb
• GTIN: 00840103415567

• Qty 1 – 214010: 03-12 Ram HD 4WD 4.5" Dual Rate Spring Kit
• Qty 1 – 214040: 03-12 Ram HD 4.5" Box Kit
• Qty 1 – 214027: 03-12 Ram HD Fixed Tubular Link Kit
• Qty 1 – 214030: 03-12 Ram HD Adj Track Bar Kit
• Qty 1 – 37023: 99-10 Fsd Dually/03-12 Ram HD 15" U-Bolt Kit
• Qty 1 – 211205: 03-12 Ram HD 4WD 2.5" Block Kit
• Qty 1 – 217810CP: 03-12 Ram HD 4.5" Front 2.5 VS RR CDCV Pair
• Qty 1 – 217701CP: 03-12 Ram HD 2-3" Rear 2.5 VS PB CDCV Pair

• Application Notes: 6, 55, 126
• Tire & Wheel: 35X12.50 On 8.5" Wide Wheel W/ 5.75" Backspace

• 2003-2008 Ram 2500/3500 4WD
