ICON 2005-2023 Toyota Tacoma Lower Control Arms - 54300

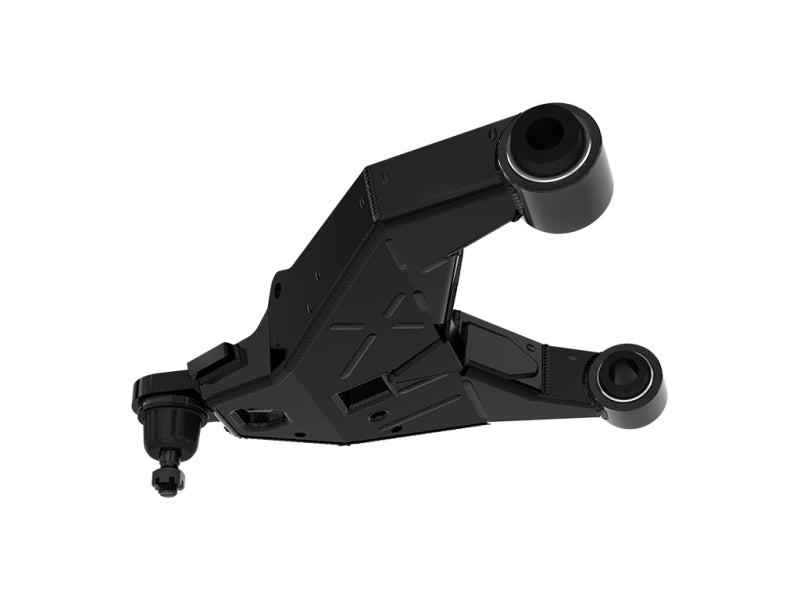

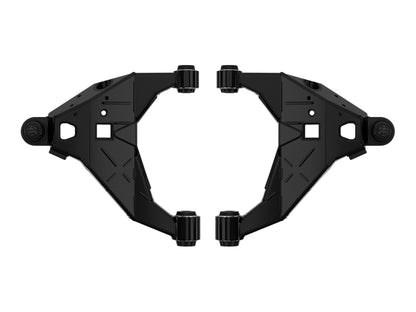

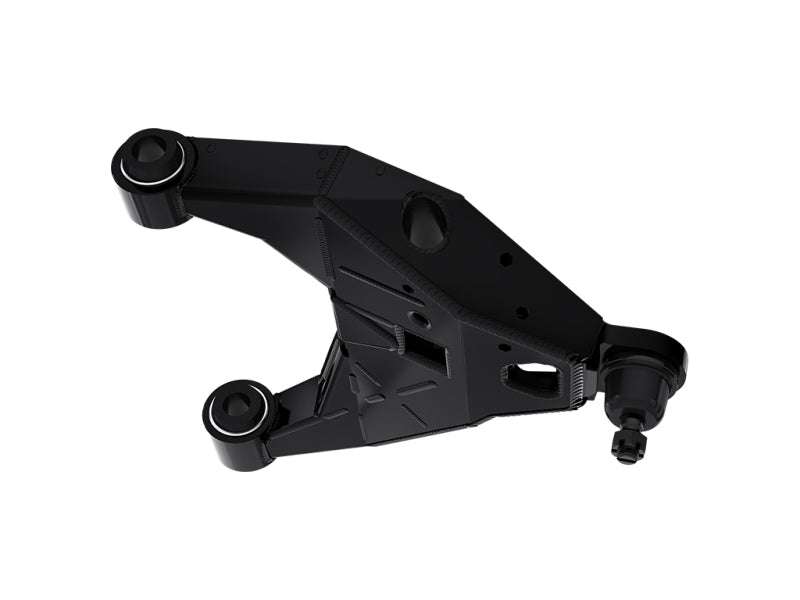

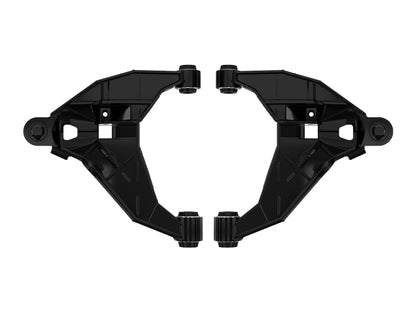

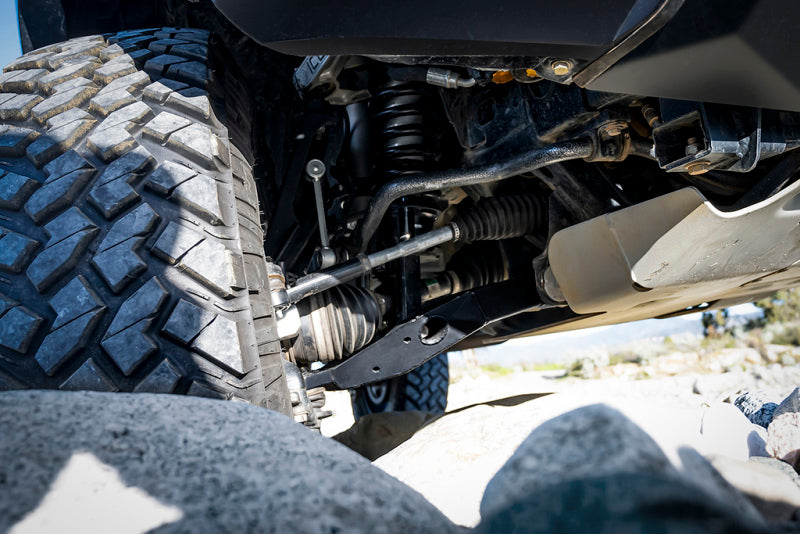

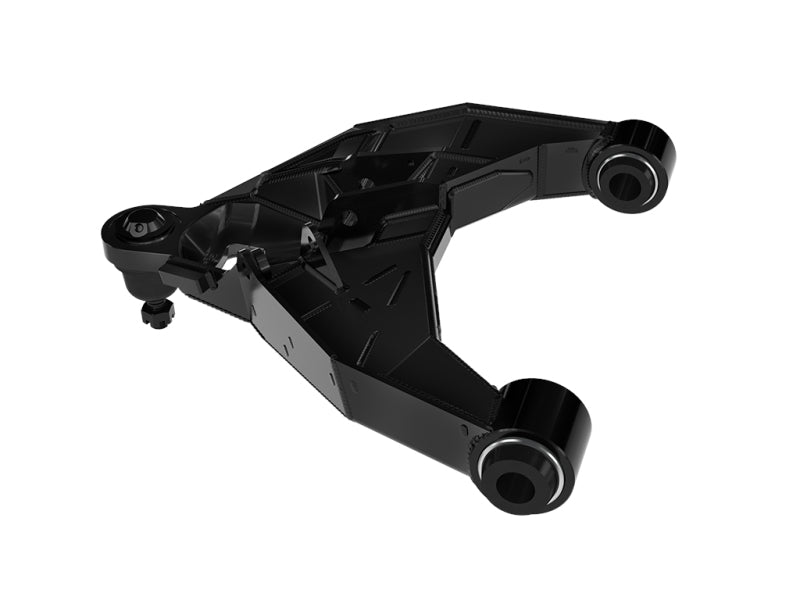

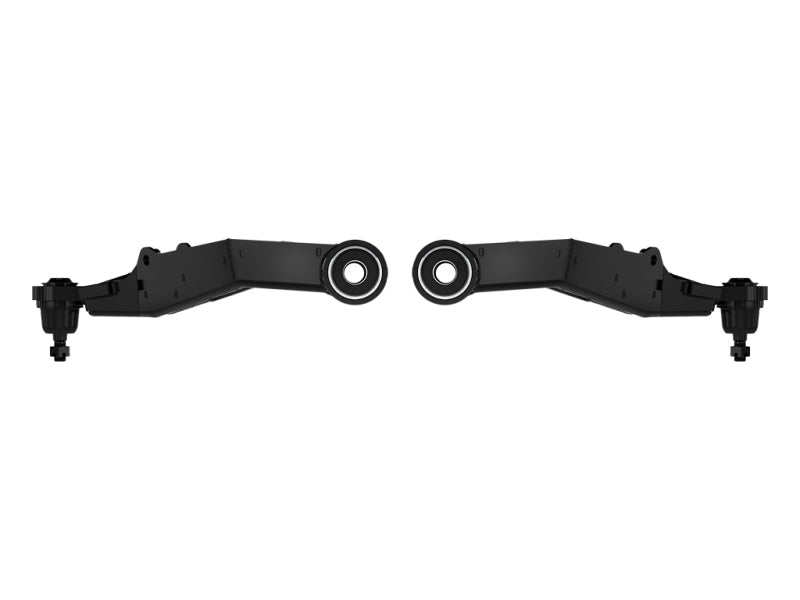

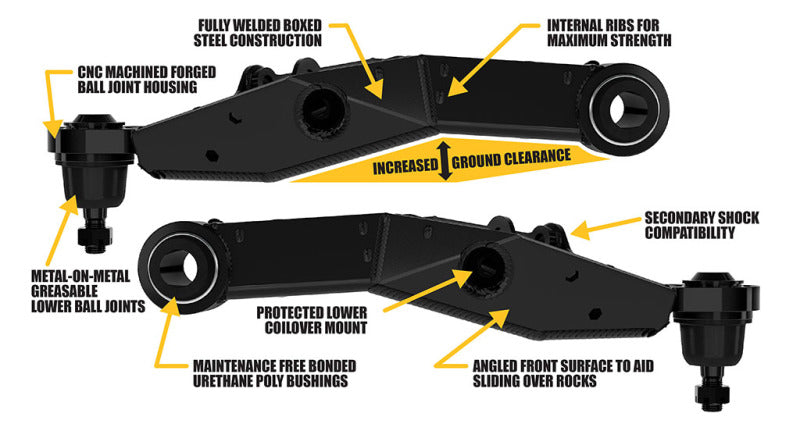

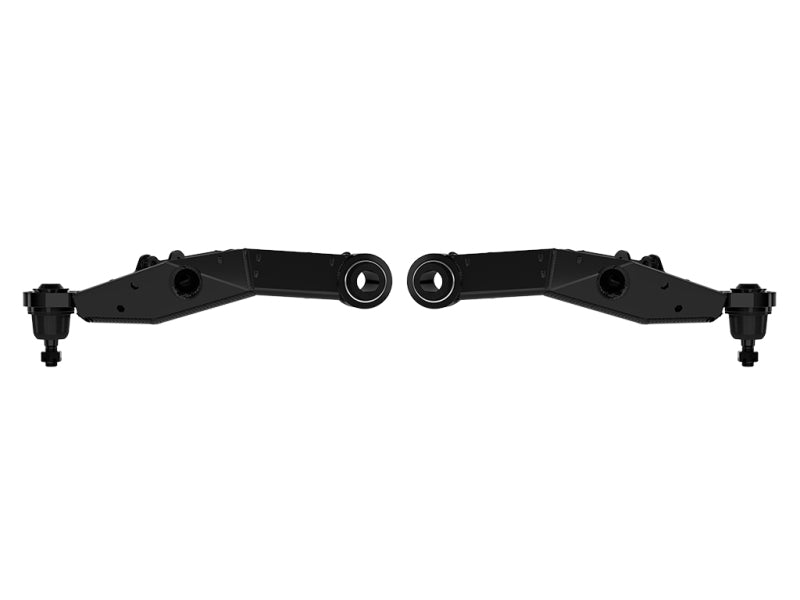

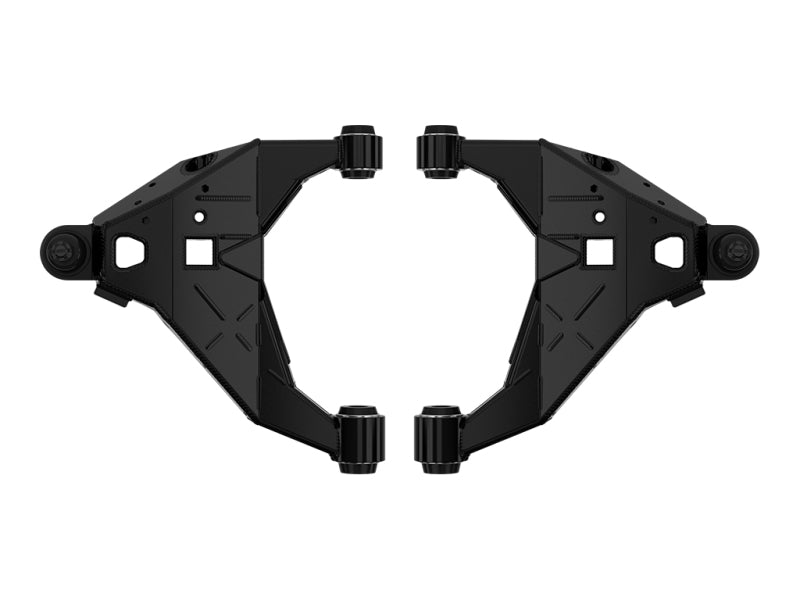

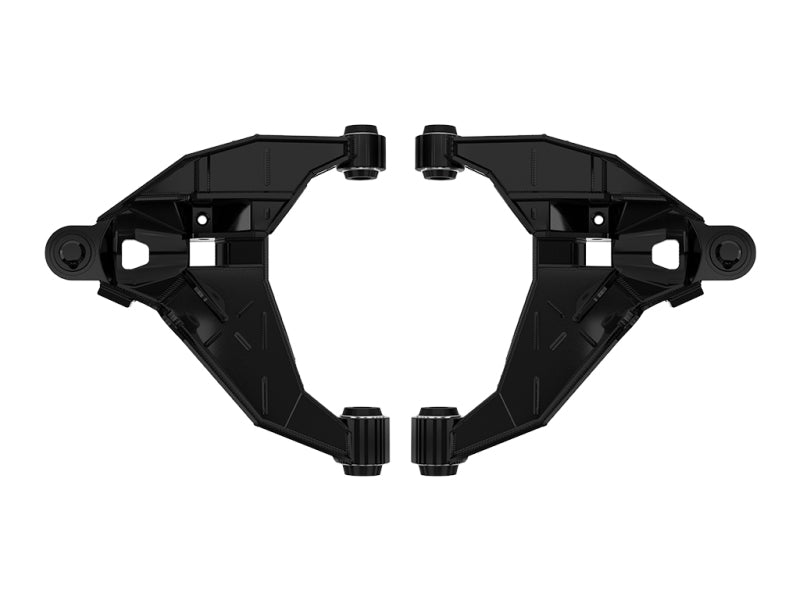

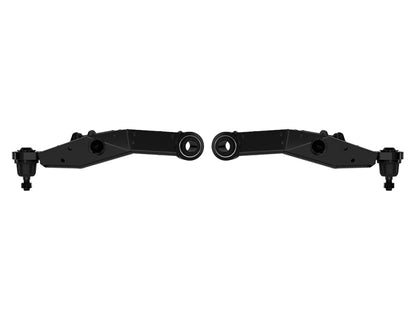

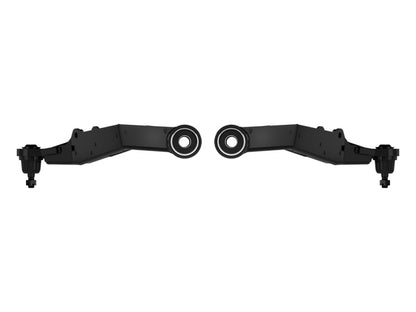

The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Lower Control Arm Kit is designed to be the ultimate stock width replacement control arm upgrade. Their fully welded, boxed, CNC laser cut and brake formed steel plate construction is internally braced with multiple ribs to offer significantly improved strength over the stock Tacoma LCAs. Featuring a high ground clearance design, specially angled plates also allow the arms to easily slide over larger obstacles out on the trail. CNC machined forged steel ball joint housings maintain the highest possible ground clearance while also ensuring strength and appropriate CV boot clearance on 4WD Tacoma models. Rather than using traditional top mounted coilover mounting tabs, these LCAs utilize recessed coilover mounts, further increasing strength and provide race inspired styling. Their incorporated secondary shock mounting tabs tie seamlessly into the ICON S2 Secondary Shock System for a fully bolt-on installation of multiple secondary shock options to effectively double the shock damping ability of the front suspension and improve off-road performance. To make these arms as much at home on the street as they are on the trail, the lower ball joints are of a metal on metal and greaseable design to avoid the short service life and noises typically associated with uniballs while also being able to withstand the abuses of aggressive off-road use. The inner pivot bushings are bonded polyurethane to minimize deflection and improve handling characteristics while allowing unhindered suspension movement though the entire travel range. Additionally, these specialty bushings do not require any greasing or other maintenance throughout their service life. With features like these, the ICON 2005-2023 Toyota Tacoma Lower Control Arm Kit would make an incredible addition to round out your Tacoma’s suspension system.

This Part Fits:

Features

• Application-specific ICON suspension/chassis component
• Designed around the listed vehicle geometry or mounting points
• Supports lift, articulation, alignment, steering or suspension performance

Specifications

• Brand: ICON Vehicle Dynamics
• Product Type: Control Arms
• Manufacturer Part Number: 54300
• Variant SKU: ICO54300
• Series / Product Family: TOYOTA PARTS
• GTIN: 00840103429328
• Weight: 50 lb

Product Family

ICON Vehicle Dynamics develops vehicle-specific suspension and chassis components for lifted, leveled and performance-oriented trucks, Jeeps and SUVs. Links, track bars, brackets, springs and supporting hardware are designed around the geometry and travel requirements of the listed platform rather than treated as generic universal pieces.

Important Notes

• Recommended tire and wheel fitment: 33X11.50 on 8.5" wide wheel with 4.75" BACKSPACE
• 2005-2015 Tacoma also requires part # 43502.
• 2016-2023 Tacoma also requires part # 43501.

Fitment

Year	Make	Model	Submodel
2005-2015	Toyota	Tacoma	Base
2016-2023	Toyota	Tacoma	Limited
2005-2015	Toyota	Tacoma	Pre Runner
2016-2023	Toyota	Tacoma	SR
2016-2023	Toyota	Tacoma	SR5
2021	Toyota	Tacoma	Trail
2016-2023	Toyota	Tacoma	TRD Off-Road
2015,2017-2023	Toyota	Tacoma	TRD Pro
2016-2023	Toyota	Tacoma	TRD Sport
