ICON 4.5in Stage 1 Suspension System for 2007-2018 Jeep Jk - K24001

Upgrade the suspension on your 2007-2018 Jeep Jk with the ICON Vehicle Dynamics 4.5in Stage 1 Suspension System, part number K24001. This complete kit brings the specified ICON suspension components together in one package, giving you an easier way to buy the full system without tracking down each part individually.

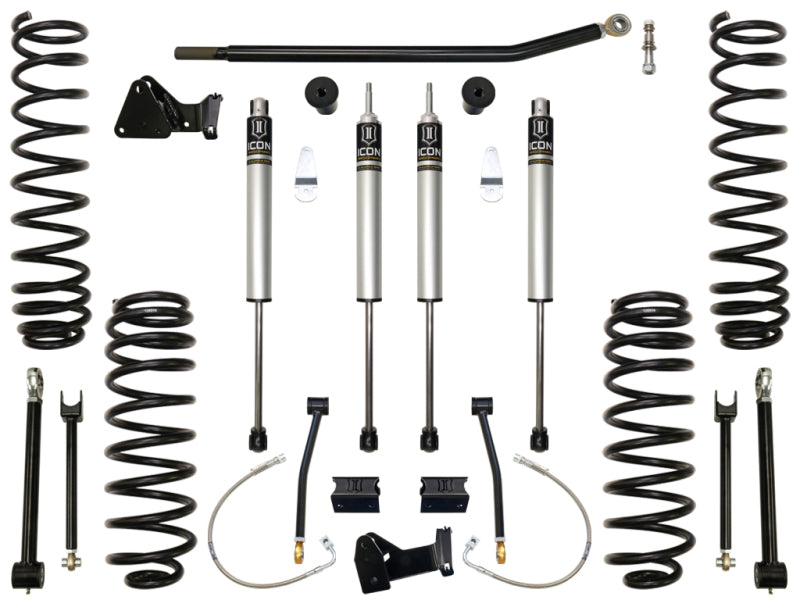

The ICON Stage 1 Jeep JK 4.5" suspension system includes dual-rate coil springs, track bar drop brackets, high-steering components, bumpstop spacers, rear brake lines, rear sway bar links, adjustable front upper and rear lower links, and 2.0 Aluminum Series IFP shocks. Tested and tuned, the ICON JK Stage 1 suspension system offers stability and drivability over a wide range of off road terrains, while keeping a smooth onroad feel for every day driving. Installing this kit allows proper clearance for 35" tall tires with no modifications and 37" tires with aftermarket high clearance fenders.

For buyers who want the complete 4.5in Stage 1 Suspension System instead of piecing a suspension together one part number at a time, the K24001 kit keeps the listed ICON components together as one package. You can see exactly what is included below, along with the application and wheel/tire notes needed to confirm the setup for your vehicle.

• Brand: ICON Vehicle Dynamics
• Part Number: K24001
• System: 4.5in Stage 1 Suspension System
• Fitment: 2007-2018 Jeep Jk
• Total Kit Weight: 152 lb
• GTIN: 00840103415963

• Qty 1 – 24010: 07-18 Jk Front 4.5" Dual-Rate Spring Kit
• Qty 1 – 24015: 07-18 Jk Rear 4.5" Dual- Rate Spring Kit
• Qty 1 – 21010: 07-18 Jk Front 4.5" Box Kit
• Qty 1 – 21000: 07-18 Jk Rear 4.5" Box Kit
• Qty 1 – 21036: 07-18 Jk Front Upper Adj Link Kit
• Qty 1 – 21041: 07-18 Jk Rear Lower Adj Link Kit
• Qty 2 – 26517: 07-18 Jk 4.5" Front 2.0 VS IR
• Qty 2 – 26518: 07-18 Jk 4.5" Rear 2.0 VS IR

• Application Notes: 30, 62, 66, 123, 150
• Tire & Wheel: 35X12.50 On 8.5" Wide Wheel W/ 4.75" Backspace

• 2007-2018 Jeep Jk
