ICON 4.5in Stage 5 Suspension System for 2007-2018 Jeep Jk - K24005

Upgrade the suspension on your 2007-2018 Jeep Jk with the ICON Vehicle Dynamics 4.5in Stage 5 Suspension System, part number K24005. This complete kit brings the specified ICON suspension components together in one package, giving you an easier way to buy the full system without tracking down each part individually.

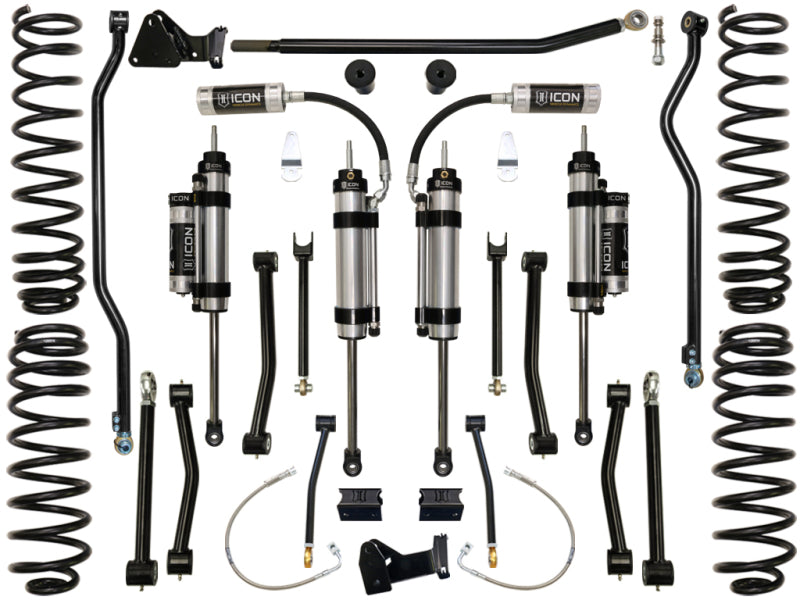

The ICON Stage 5 Jeep JK 4.5" suspension system includes dual-rate coil springs, track bar drop brackets, high-steering components, bump stop spacers, rear brake lines, rear sway bar links, complete set of front and rear links, and 2.5 Omega Series 2 tube bypass shocks. Tested and tuned, the ICON JK Stage 5 suspension system offers stability and drivability over a wide range of off-road terrains, while keeping a smooth on road feel for every day driving. This system includes 2.5" remote reservoir shocks front and rear to ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.

For buyers who want the complete 4.5in Stage 5 Suspension System instead of piecing a suspension together one part number at a time, the K24005 kit keeps the listed ICON components together as one package. You can see exactly what is included below, along with the application and wheel/tire notes needed to confirm the setup for your vehicle.

• Brand: ICON Vehicle Dynamics
• Part Number: K24005
• System: 4.5in Stage 5 Suspension System
• Fitment: 2007-2018 Jeep Jk
• Total Kit Weight: 269 lb
• GTIN: 00840103416007

• Qty 1 – 24010: 07-18 Jk Front 4.5" Dual-Rate Spring Kit
• Qty 1 – 24015: 07-18 Jk Rear 4.5" Dual- Rate Spring Kit
• Qty 1 – 21010: 07-18 Jk Front 4.5" Box Kit
• Qty 1 – 21000: 07-18 Jk Rear 4.5" Box Kit
• Qty 1 – 21020: 07-18 Jk Front Adj Track Bar Kit
• Qty 1 – 21025: 07-18 Jk Rear Adj Track Bar Kit
• Qty 1 – 21031: 07-18 Jk Front Lower Fixed Link Kit
• Qty 1 – 21036: 07-18 Jk Front Upper Adj Link Kit
• Qty 1 – 21041: 07-18 Jk Rear Lower Adj Link Kit
• Qty 1 – 21046: 07-18 Jk Rear Upper Fixed Link Kit
• Qty 1 – 29940P: 07-18 Jk 4.5" Front 2.5 Omega VS RR Pair
• Qty 1 – 29945P: 07-18 Jk 4.5" Rear 2.5 Omega VS PB Pair

• Application Notes: 62, 66, 123, 150
• Tire & Wheel: 35X12.50 On 8.5" Wide Wheel W/ 4.75" Backspace

• 2007-2018 Jeep Jk
