ICON 4.5in Stage 2 Suspension System for 2009-2012 Ram 2500/3500 - K214551T

Upgrade the suspension on your 2009-2012 Ram 2500/3500 with the ICON Vehicle Dynamics 4.5in Stage 2 Suspension System, part number K214551T. This complete kit brings the specified ICON suspension components together in one package, giving you an easier way to buy the full system without tracking down each part individually.

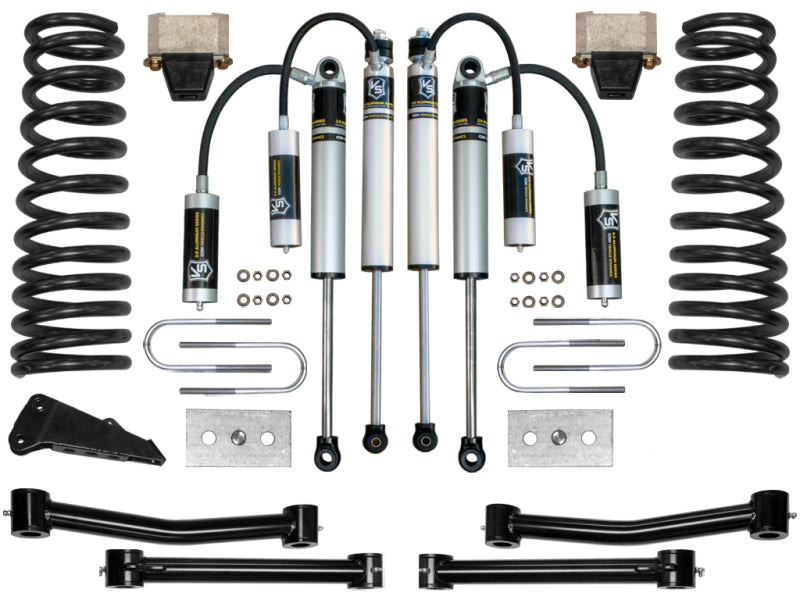

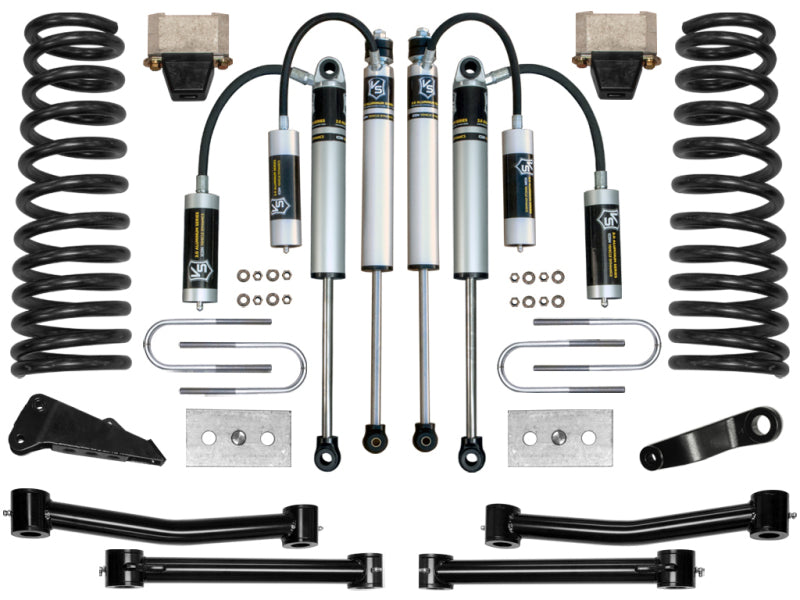

2009-2012 Ram 2500/3500 4.5" Stage 2 Suspension System utilizes the same technology as the 2.5" systems while adding lift height and ground clearance. Additional engineered front-end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. The Stage 2 System is comprised of dual rate coil springs, tubular steel upper & lower link arms, polyurethane bump stops w/ billet extension, sway bar drop brackets, forged pitman arm, track bar drop bracket, rear 2.5" lift blocks with U-bolts, and 2.0 Aluminum Series remote reservoir shocks.

For buyers who want the complete 4.5in Stage 2 Suspension System instead of piecing a suspension together one part number at a time, the K214551T kit keeps the listed ICON components together as one package. You can see exactly what is included below, along with the application and wheel/tire notes needed to confirm the setup for your vehicle.

• Brand: ICON Vehicle Dynamics
• Part Number: K214551T
• System: 4.5in Stage 2 Suspension System
• Fitment: 2009-2012 Ram 2500/3500
• Total Kit Weight: 238 lb
• GTIN: 00840103415680

• Qty 1 – 214010: 03-12 Ram HD 4WD 4.5" Dual Rate Spring Kit
• Qty 1 – 214101: 09-12 Ram HD Drop Pitman Arm
• Qty 1 – 214040: 03-12 Ram HD 4.5" Box Kit
• Qty 1 – 214027: 03-12 Ram HD Fixed Tubular Link Kit
• Qty 1 – 211205: 03-12 Ram HD 4WD 2.5" Block Kit
• Qty 1 – 37023: 99-10 Fsd Dually/03-12 Ram HD 15" U-Bolt Kit
• Qty 2 – 216522R: 03-12 Ram HD 0-3" Rear 2.0 VS RR
• Qty 2 – 216523R: 03-12 Ram HD 4.5" Front 2.0 VS RR

• Application Notes: 6, 30, 55
• Tire & Wheel: 35X12.50 On 8.5" Wide Wheel W/ 5.75" Backspace

• 2009-2012 Ram 2500/3500
