ICON Front 3.0 V.S. Coilover Remote Reservoir CDCV Drvr for 2010-2014 Raptor - 95000L

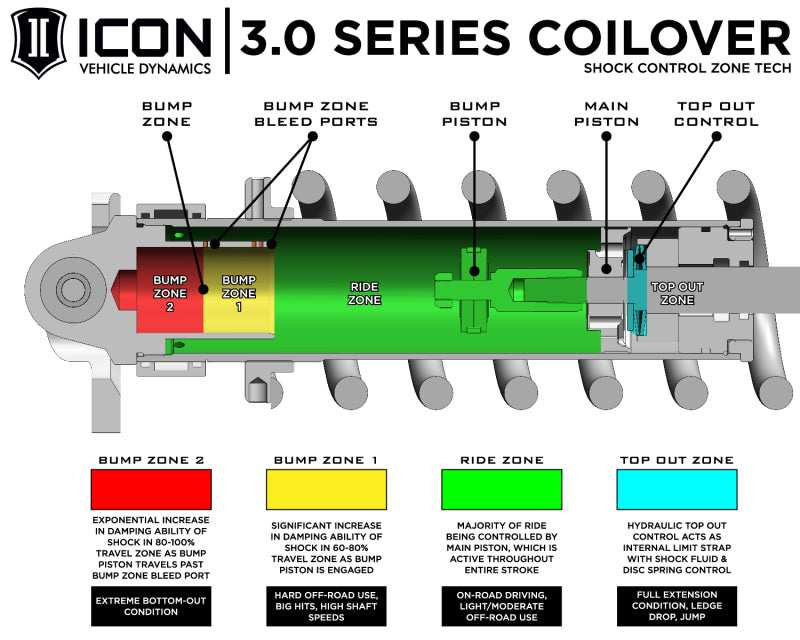

The engineers at ICON Vehicle Dynamics took a different approach to position sensitive performance in ICON's 3.0 front coil over shock. Instead of bypassing a small internal piston at the cost of poor control, road holding, and cornering like a traditional internal position sensitive shock, ICON's shock starts with a true 3" main piston that has robust features such as digressive rebound and flutter stack compression. This combination produces outstanding control, great response, and unparalleled ride performance. To achieve even more control for extreme off-road use, ICON added an additional internal hydraulic system (much like an external mounted hydraulic bumpstop) that produces the extreme forces required during the last 40% of travel to achieve maximum bottom out control. These multiple stages of compression and rebound have been tuned independently to maximize overall performance of the Ford SVT Raptor front suspension. For owners who wish to optimize the ride specific to his or her liking, the front coil-over shocks are equipped with an external, "Easy to Adjust" Compression Damping Control Valve, that is effective for the entire stroke of the shock. This compression adjustment valve offers you 10 high resolution settings, each bringing a true feel difference from soft to firm.

Features

• Large 3.0-inch performance coilover platform
• Vehicle-specific valving and adjustable ride height on applicable vehicles
• Increased oil volume and heat capacity for demanding use
• CDCV-equipped configuration provides external compression-damping adjustment
• Remote reservoir supports cooler, more consistent damping during extended use

Specifications

• Brand: ICON Vehicle Dynamics
• Product Type: Coilovers
• Manufacturer Part Number: 95000L
• Variant SKU: ICO95000L
• Series / Product Family: VEHICLE SPECIFIC (V.S) 3.0 SERIES COILOVER SHOCKS | OPTIONS: C = CDC VALVE, 700 = 700 LB/IN COIL SPRING UPGRADE
• GTIN: 00840103408989
• Weight: 51 lb
• Application: 2010-2014 Raptor

Product Family

ICON V.S. 3.0 Series coilovers step up shock volume and piston area for demanding vehicles and higher-speed off-road use. The larger body improves heat capacity and control under sustained load, while vehicle-specific valving and available compression-adjustment technology retain everyday drivability.

Fitment

Fits 2010-2014 Raptor.
