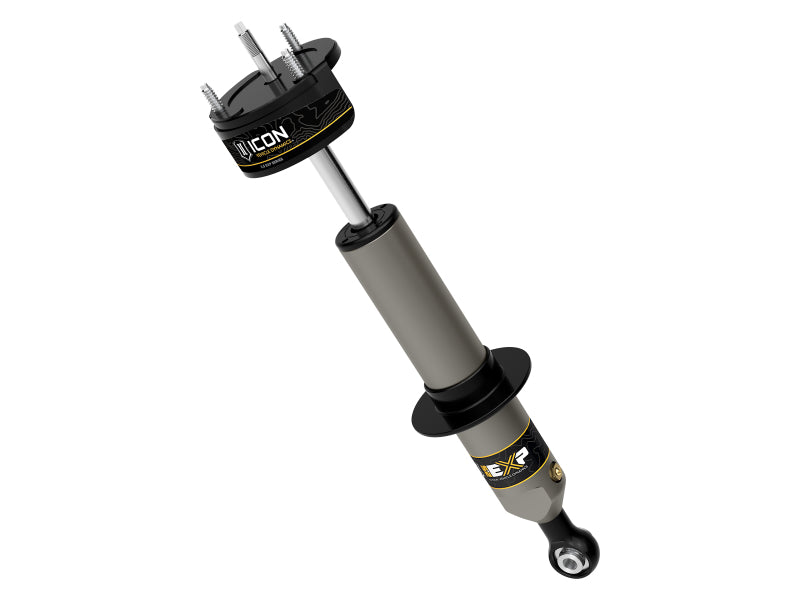

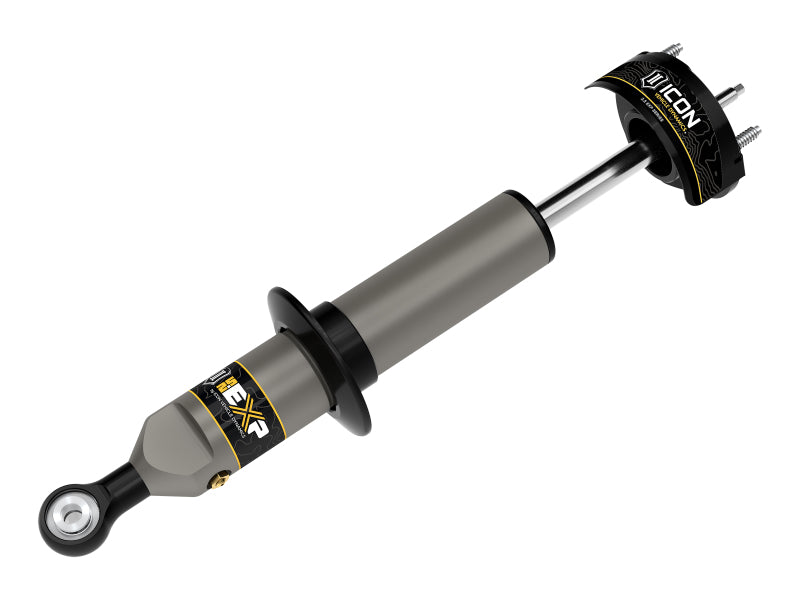

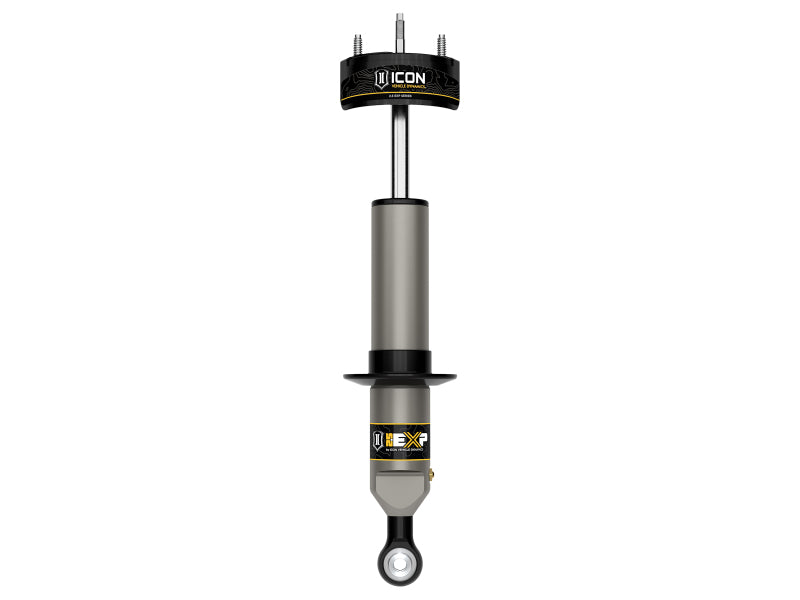

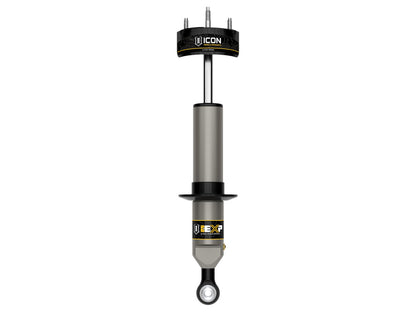

ICON Front 2.5 EXP Coilover for 2005-2023 Toyota Tacoma - 58632

EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Tacoma in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.

Features

• Rebuildable 2.5-inch performance shock platform
• Reuses applicable OE spring/mount components
• Adds lift and vehicle-specific damping without a full conventional coilover conversion

Specifications

• Brand: ICON Vehicle Dynamics
• Product Type: Coilovers
• Manufacturer Part Number: 58632
• Variant SKU: ICO58632
• Series / Product Family: EXP COILOVERS VEHICLE SPECIFIC (V.S) 2.5 SERIES
• GTIN: 00840103421063
• Weight: 10 lb
• Application: 2005-2023 Toyota Tacoma

Product Family

ICON EXP bridges the gap between a basic spacer lift and a complete threaded-body coilover by pairing a rebuildable 2.5-inch aluminum shock platform with reuse of applicable OE spring and mount components. The result is a more affordable path to added ride height, travel and vehicle-specific damping.

Important Notes

• Recommended tire and wheel fitment: 33X11.50 on 17X8.5" wide wheel with 4.75" BACK SPACE
• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• Trimming required for recommended tire size.
• Not compatible with TRD pro.

Fitment

Fits 2005-2023 Toyota Tacoma.
