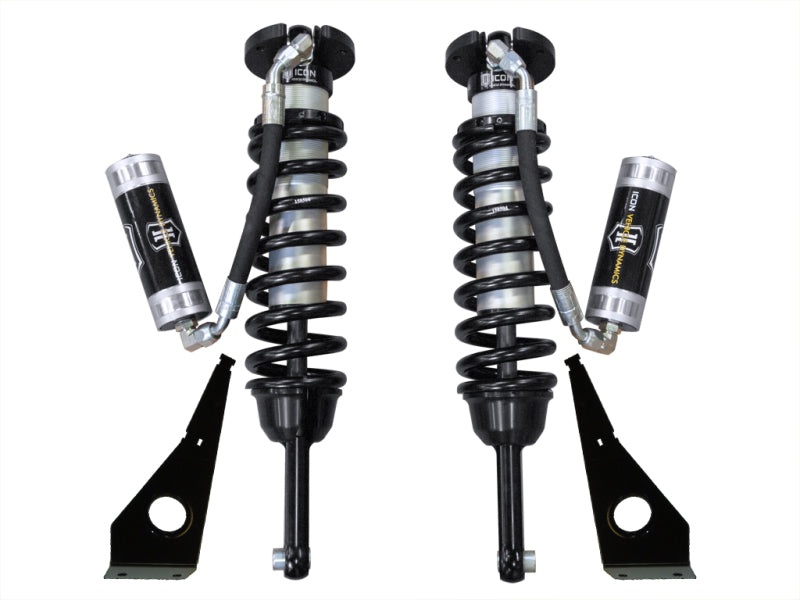

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
This Part Fits:
Features
- Vehicle-specific 2.5-inch performance coilover
- Lift-height adjustment on applicable vehicles
- Larger piston/oil volume for improved damping and heat capacity
- Remote reservoir supports cooler, more consistent damping during extended use
Specifications
-
Brand: ICON Vehicle Dynamics
-
Product Type: Coilovers
-
Manufacturer Part Number: 58730-700
-
Variant SKU: ICO58730-700
-
Series / Product Family: VEHICLE SPECIFIC (V.S) 2.5 SERIES COILOVER SHOCKS | OPTIONS: C = CDCV, E = CDEV, X = CDXS, -700 = 700 LB/IN COIL SPRING UPGRADE
-
GTIN: 00840103404226
-
Weight: 55 lb
-
Application: 2005-2023 Toyota Tacoma
Product Family
ICON V.S. 2.5 Series coilovers are vehicle-specific performance dampers designed to improve ride quality, control and usable suspension travel while providing lift-height adjustment on applicable vehicles. Larger 2.5-inch shock bodies increase piston area and oil volume, while reservoir and compression-adjustment options let the customer choose the level of performance and tunability needed.
Important Notes
- Recommended tire and wheel fitment: 33X11.50 on 8.5" wide wheel with 4.75" BACKSPACE
- Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
- 2016-2023 Tacoma lift range is 0-2.75".
- Trimming required for recommended tire size.
- Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
Fitment
| Year |
Make |
Model |
Submodel |
| 2005-2015 |
Toyota |
Tacoma |
Base |
| 2016-2023 |
Toyota |
Tacoma |
Limited |
| 2005-2015 |
Toyota |
Tacoma |
Pre Runner |
| 2016-2023 |
Toyota |
Tacoma |
SR |
| 2016-2023 |
Toyota |
Tacoma |
SR5 |
| 2021 |
Toyota |
Tacoma |
Trail |
| 2016-2023 |
Toyota |
Tacoma |
TRD Off-Road |
| 2015,2017-2023 |
Toyota |
Tacoma |
TRD Pro |
| 2016-2023 |
Toyota |
Tacoma |
TRD Sport |
| 2005-2013 |
Toyota |
Tacoma |
X-Runner |
