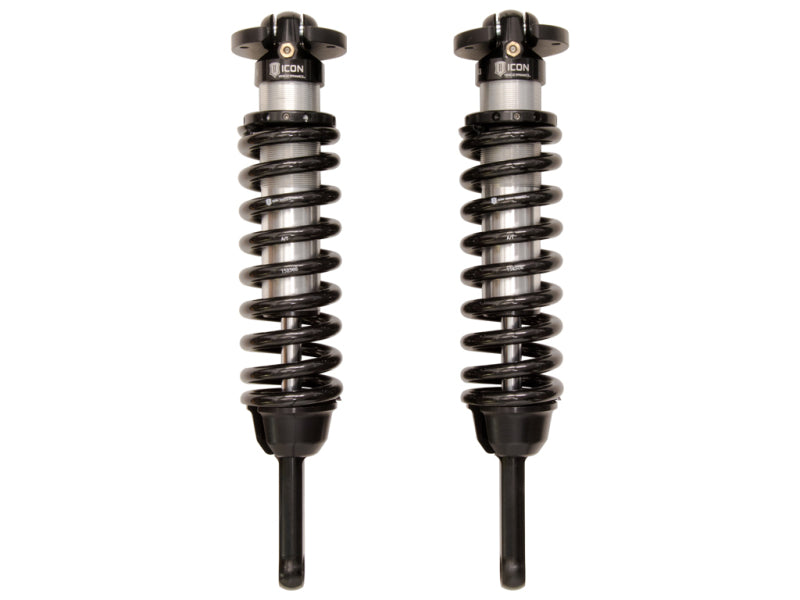

ICON 2.5 V.S. Internal Reservoir Coilover Kit for 2005-2023 Toyota Tacoma Ext Travel - 58635

Upgrade 2005-2023 Toyota Tacoma Ext Travel with the ICON 2.5 V.S. Internal Reservoir Coilover Kit. This application-specific component is designed to improve or support the suspension, steering, protection, or vehicle function described in the product name.

Features

• Vehicle-specific 2.5-inch performance coilover
• Lift-height adjustment on applicable vehicles
• Larger piston/oil volume for improved damping and heat capacity

Specifications

• Brand: ICON Vehicle Dynamics
• Product Type: Coilovers
• Manufacturer Part Number: 58635
• Variant SKU: ICO58635
• Series / Product Family: VEHICLE SPECIFIC (V.S) 2.5 SERIES COILOVER SHOCKS | OPTIONS: C = CDCV, E = CDEV, X = CDXS, -700 = 700 LB/IN COIL SPRING UPGRADE
• GTIN: 00840103403922
• Weight: 45 lb
• Application: 2005-2023 Toyota Tacoma Ext Travel

Product Family

ICON V.S. 2.5 Series coilovers are vehicle-specific performance dampers designed to improve ride quality, control and usable suspension travel while providing lift-height adjustment on applicable vehicles. Larger 2.5-inch shock bodies increase piston area and oil volume, while reservoir and compression-adjustment options let the customer choose the level of performance and tunability needed.

Important Notes

• Recommended tire and wheel fitment: 33X11.50 on 8.5" wide wheel with 4.75" BACKSPACE
• These systems are to be used with aftermarket upper control arms only.
• 700LB coil spring available for heavier equipped vehicles.
• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• 2016-2023 Tacoma lift range is 0-2.75".
• Trimming required for recommended tire size.
• Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.

Fitment
