ICON 4.5in Stage 3 Suspension System for 2014-2018 Ram 2500 4WD - K214523

Upgrade the suspension on your 2014-2018 Ram 2500 4WD with the ICON Vehicle Dynamics 4.5in Stage 3 Suspension System, part number K214523. This complete kit brings the specified ICON suspension components together in one package, giving you an easier way to buy the full system without tracking down each part individually.

ICON Vehicle Dynamics suspension systems for the 2014-2018 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 3 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear, while CDC (Compression Damping Control) Valve technology allows the user to adjust compression characteristics of the shocks with the turn of a knob.

For buyers who want the complete 4.5in Stage 3 Suspension System instead of piecing a suspension together one part number at a time, the K214523 kit keeps the listed ICON components together as one package. You can see exactly what is included below, along with the application and wheel/tire notes needed to confirm the setup for your vehicle.

• Brand: ICON Vehicle Dynamics
• Part Number: K214523
• System: 4.5in Stage 3 Suspension System
• Fitment: 2014-2018 Ram 2500 4WD
• Total Kit Weight: 222 lb
• GTIN: 00840103415611

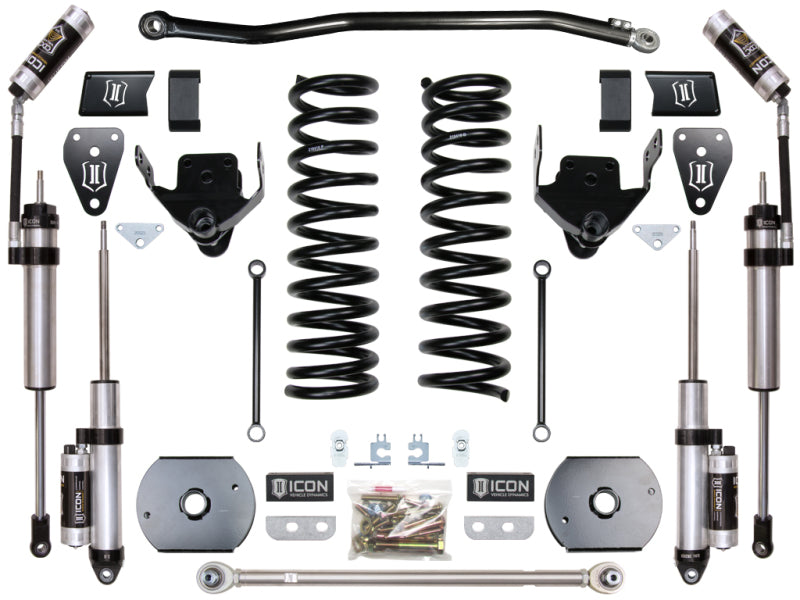

• Qty 1 – 214201: 14-18 Ram 2500 4.5" Front Dual Rate Spring Kit
• Qty 1 – 214214: 14-Up Ram 2500 Front Adjustable Track Bar Kit
• Qty 1 – 214204: 14-Up Ram 2500 Rear Adjustable Track Bar Kit
• Qty 1 – 214205: 14-18 Ram 2500 4.5" Box Kit
• Qty 1 – 217803CP: 14-Up Ram 2500 4.5" Front 2.5 VS RR CDCV Pair
• Qty 1 – 217707CP: 14-Up Ram 2500 2" Standard Rear 2.5 VS PB CDCV Pair

• Application Notes: 6, 55, 90, 103, 105
• Tire & Wheel: 37X12.50 On 8.5" Wide Wheel W/ 5.75" Backspace

• 2014-2018 Ram 2500 4WD
