ICON 3in Stage 1 Suspension System for 2016-2023 Nissan Titan Xd - K83031

Upgrade the suspension on your 2016-2023 Nissan Titan Xd with the ICON Vehicle Dynamics 3in Stage 1 Suspension System, part number K83031. This complete kit brings the specified ICON suspension components together in one package, giving you an easier way to buy the full system without tracking down each part individually.

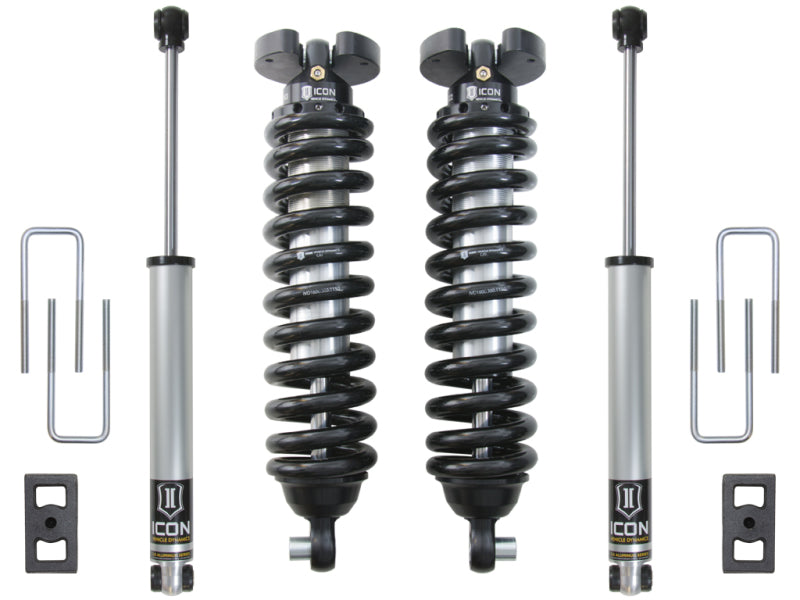

The 2016 Nissan Titan XD is an all new truck with a heavy-duty build that’s aimed to blend the lines between ½ ton efficiency and ¾ ton capability. The Stage 1 system includes ICON 2.5 Series coilovers, 2.0 Aluminum Series rear shocks, rear lift blocks, and u-bolts. These products feature high-quality components such as ICON-designed coil springs, precision machined internals, FK Rod End bearings, and a vehicle-specific shock tune that translates to a ride quality that is second to none.

For buyers who want the complete 3in Stage 1 Suspension System instead of piecing a suspension together one part number at a time, the K83031 kit keeps the listed ICON components together as one package. You can see exactly what is included below, along with the application and wheel/tire notes needed to confirm the setup for your vehicle.

• Brand: ICON Vehicle Dynamics
• Part Number: K83031
• System: 3in Stage 1 Suspension System
• Fitment: 2016-2023 Nissan Titan Xd
• Total Kit Weight: 84 lb
• GTIN: 00840103419459

• Qty 1 – 81021: 16-23 Titan Xd 2.5 IR Coilover Kit
• Qty 2 – 86535: 16-23 Titan Xd 0-1.5" Rear 2.0 VS IR
• Qty 1 – 88700: 16-23 Titan Xd 9" U-Bolt Kit
• Qty 1 – 191201: 1" Cast Block Kit 3" Wide

• Application Notes: 48, 55, 115
• Tire & Wheel: 33X11.50 On 8.5" Wide Wheel W/ 5" Backspace

• 2016-2023 Nissan Titan Xd
