ICON 4.5in Stage 4 Suspension System for 2017-2019 Ford F-250/F-350 - K64514

Upgrade the suspension on your 2017-2019 Ford F-250/F-350 with the ICON Vehicle Dynamics 4.5in Stage 4 Suspension System, part number K64514. This complete kit brings the specified ICON suspension components together in one package, giving you an easier way to buy the full system without tracking down each part individually.

The Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty 4-Link kit, which further improves performance by eliminating suspension bind commonly experienced with factory radius arms during articulation. This “freeing up” of the front end and the ability of the 4-Link Kit to maintain positive caster through the range of travel equates to an unparalleled ride quality in all conditions.

For buyers who want the complete 4.5in Stage 4 Suspension System instead of piecing a suspension together one part number at a time, the K64514 kit keeps the listed ICON components together as one package. You can see exactly what is included below, along with the application and wheel/tire notes needed to confirm the setup for your vehicle.

• Brand: ICON Vehicle Dynamics
• Part Number: K64514
• System: 4.5in Stage 4 Suspension System
• Fitment: 2017-2019 Ford F-250/F-350
• Total Kit Weight: 298 lb
• GTIN: 00840103418636

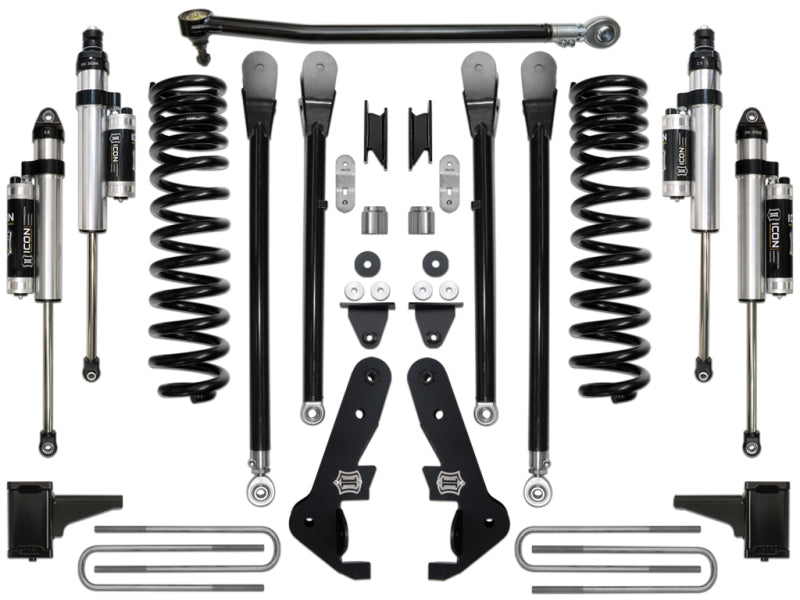

• Qty 1 – 64050: 08-22 Fsd Front 4.5" Box Kit
• Qty 1 – 64010: 05-19 Fsd Front 4.5" Dual Rate Spring Kit
• Qty 1 – 64038: 17-24 Fsd Adj Track Bar Kit
• Qty 1 – 164501: 05-22 Fsd Front Upper Links
• Qty 1 – 164502: 05-23 Fsd Front Lower Links
• Qty 1 – 164504: 17-22 Fsd 4-Link Frame Bracket Kit
• Qty 1 – 195275: 99-24 Fsd 5" Block Kit
• Qty 1 – 67003: 11-24 Fsd Rear 15" U-Bolt Kit
• Qty 1 – 67710CP: 05-22 Fsd 4WD 4.5" Front 2.5 VS PB CDCV Pair
• Qty 1 – 37705CP: 99-24 Fsd 0-3" Rear 2.5 VS PB CDCV Pair

• Application Notes: 6, 8, 29, 31, 55
• Tire & Wheel: 37X12.50 On 8.5" Wide Wheel W/ 5" Backspace

• 2017-2019 Ford F-250/F-350
