ICON 7in Stage 4 Radius Arm Suspension System for 2017-2022 Ford F-250/F-350 - K67114R

Upgrade the suspension on your 2017-2022 Ford F-250/F-350 with the ICON Vehicle Dynamics 7in Stage 4 Radius Arm Suspension System, part number K67114R. This complete kit brings the specified ICON suspension components together in one package, giving you an easier way to buy the full system without tracking down each part individually.

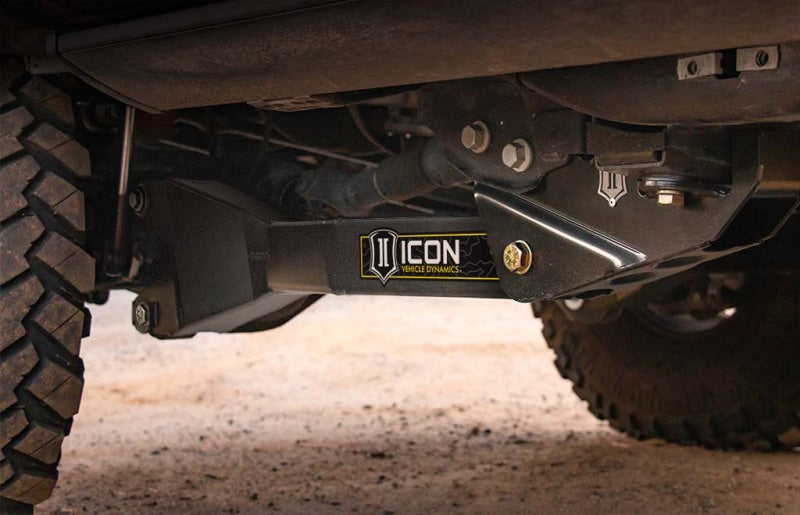

This Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.

For buyers who want the complete 7in Stage 4 Radius Arm Suspension System instead of piecing a suspension together one part number at a time, the K67114R kit keeps the listed ICON components together as one package. You can see exactly what is included below, along with the application and wheel/tire notes needed to confirm the setup for your vehicle.

• Brand: ICON Vehicle Dynamics
• Part Number: K67114R
• System: 7in Stage 4 Radius Arm Suspension System
• Fitment: 2017-2022 Ford F-250/F-350
• Configuration: Radius arm configuration
• Total Kit Weight: 613 lb
• GTIN: 00840103418940

• Qty 1 – 67015: 05-24 Fsd Front 7" Dual Rate Spring Kit
• Qty 1 – 67035: 17-22 Fsd Front 7" Box Kit
• Qty 1 – 64038: 17-24 Fsd Adj Track Bar Kit
• Qty 1 – 64041: 05-22 Fsd Radius Arm System
• Qty 1 – 64055: 17-22 Fsd Radius Arm Drop Kit
• Qty 2 – 168506: 17-24 Fsd 5" Rear Leaf Spring Pack
• Qty 1 – 65505H: 17-24 Fsd 5" Leaf Spring Hardware Kit
• Qty 1 – 65501: 11-24 Fsd U-Bolt Plate Kit
• Qty 1 – 67003: 11-24 Fsd Rear 15" U-Bolt Kit
• Qty 1 – 67031: 11-22 Fsd Rear 7" Brake Bracket Kit
• Qty 1 – 67720P: 05-24 Fsd 4WD 7" Front 2.5 VS PB Pair
• Qty 1 – 37701P: 99-24 Fsd 3-6" Rear 2.5 VS PB Pair
• Qty 1 – 65000: 05-22 Fsd Dual Stabilizer Kit
• Qty 2 – 36511: 99-24 Fsd 4WD Stabilizer (Dual Opposing) 2.0 VS IR

• Application Notes: 6, 8, 31, 55, 57, 118
• Tire & Wheel: 37X12.50 On 8.5" Wide Wheel W/ 5" Backspace

• 2017-2022 Ford F-250/F-350
