ICON Rear Hydraulic Bump Stop Kit for 2017-2020 Raptor - 95121

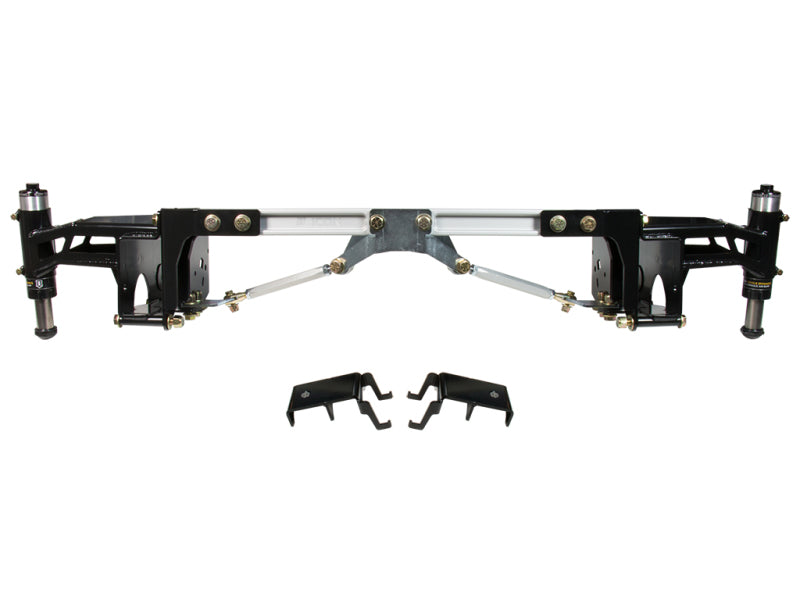

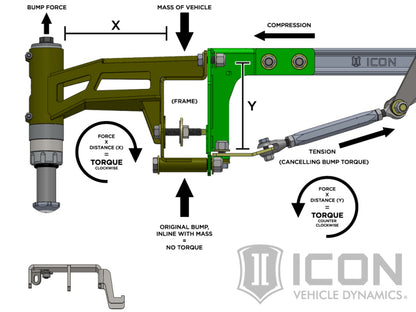

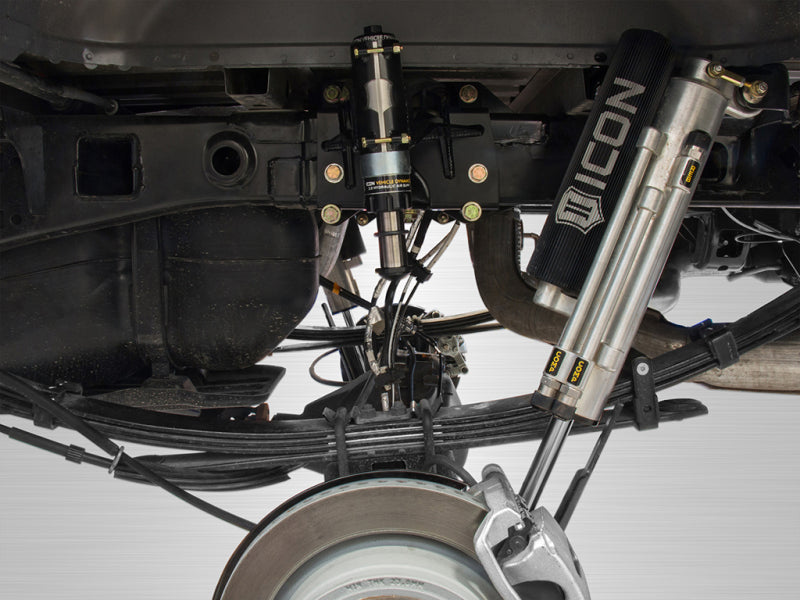

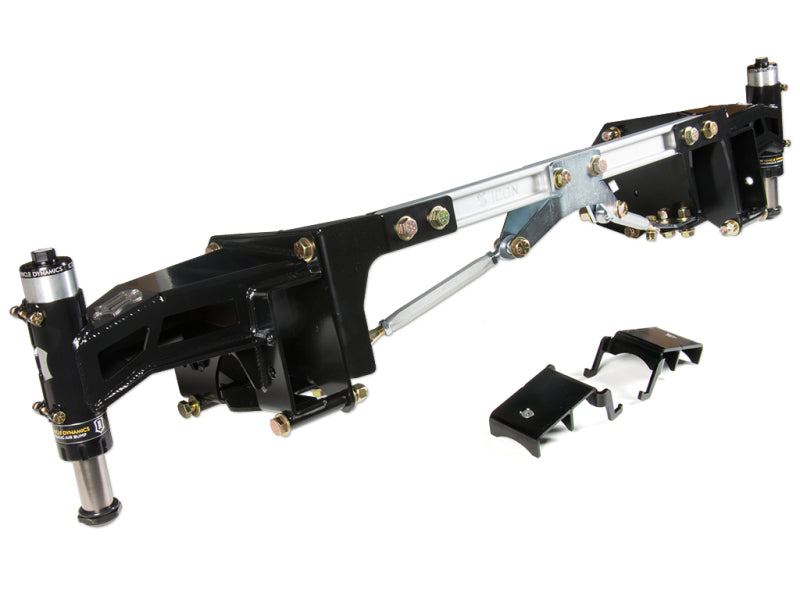

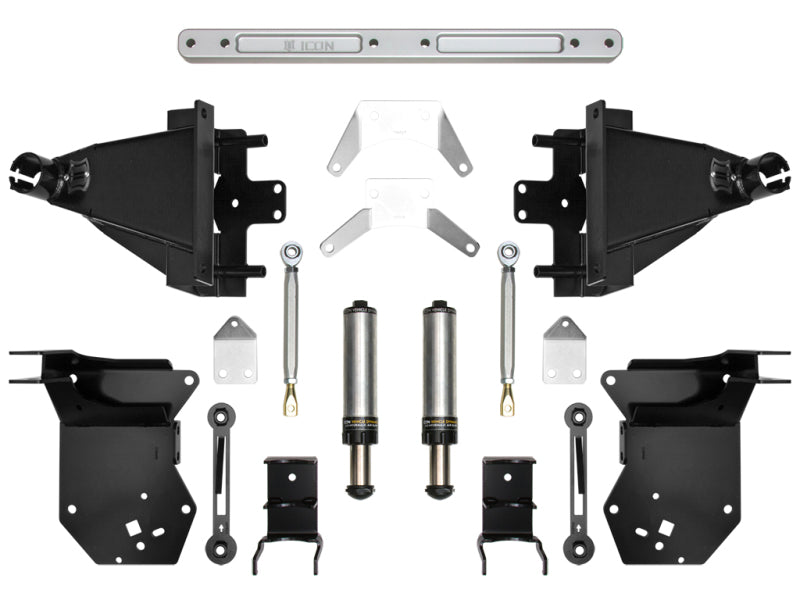

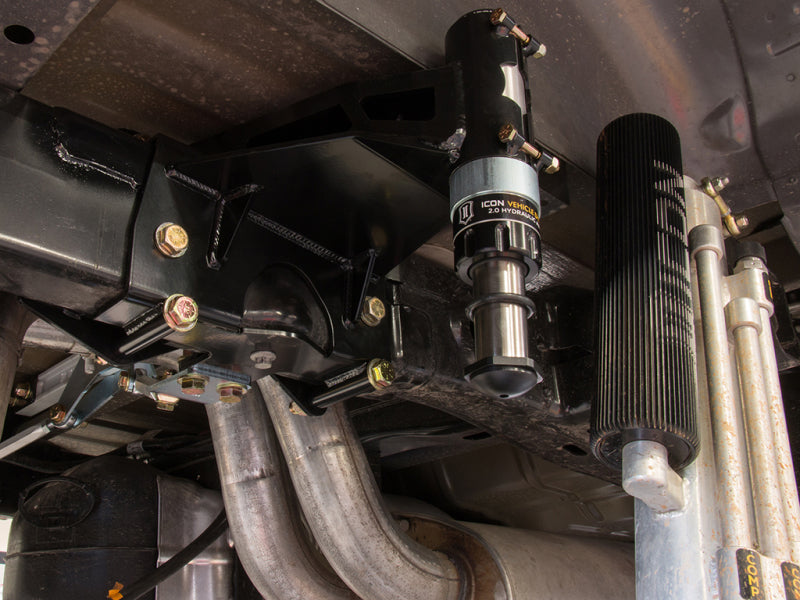

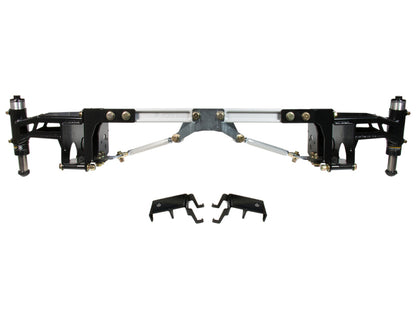

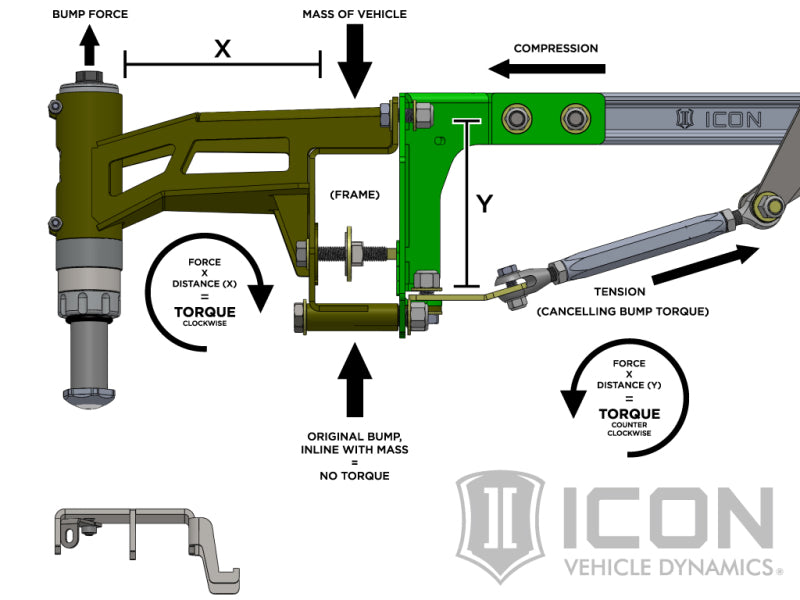

The ICON Raptor Bump Stop System includes heavy duty steel clamshell brackets, a billet aluminum frame crossmember, adjustable tension rods, hydraulic bump stops, and all of the necessary hardware required to complete the installation. The clamshell brackets, crossmember, and tension rods add strength to the frame to prevent damage during extreme off-road use while increasing chassis rigidity for predictable handling and improved vehicle dynamics. The 2.5” travel hydraulic bump stops feature velocity sensitive technology which means that as the shaft speed increases the damping ability ramps up, resulting in exponential bottoming resistance that won’t negatively affect articulation. Combining all of these components into an easy to install, bolt-on package, ICON has developed the most comprehensive rear bump stop solution on the market for Raptor owners seeking the next level of strength and performance.

This Part Fits:

Features

• Application-specific ICON suspension/chassis component
• Designed around the listed vehicle geometry or mounting points
• Supports lift, articulation, alignment, steering or suspension performance

Specifications

• Brand: ICON Vehicle Dynamics
• Product Type: Bump Stops
• Manufacturer Part Number: 95121
• Variant SKU: ICO95121
• Series / Product Family: FORD F150 & RAPTOR PARTS
• GTIN: 00840103407166
• Weight: 90 lb
• Application: 2017-2020 Raptor

Product Family

ICON Vehicle Dynamics develops vehicle-specific suspension and chassis components for lifted, leveled and performance-oriented trucks, Jeeps and SUVs. Links, track bars, brackets, springs and supporting hardware are designed around the geometry and travel requirements of the listed platform rather than treated as generic universal pieces.

Fitment

Year	Make	Model	Submodel
2017-2020	Ford	F-150	Raptor
