ICON Stage 4 Suspension System for 2017-2020 Ford Raptor - K93154

Upgrade the suspension on your 2017-2020 Ford Raptor with the ICON Vehicle Dynamics Stage 4 Suspension System, part number K93154. This complete kit brings the specified ICON suspension components together in one package, giving you an easier way to buy the full system without tracking down each part individually.

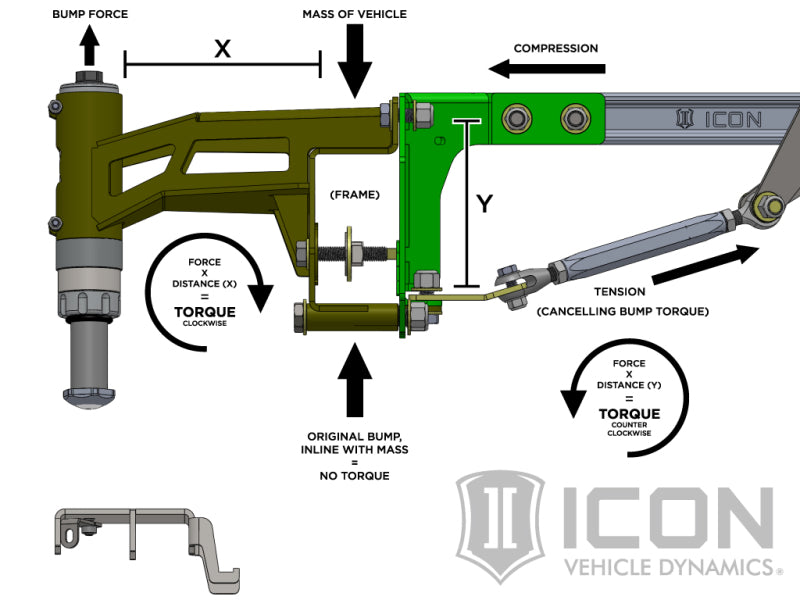

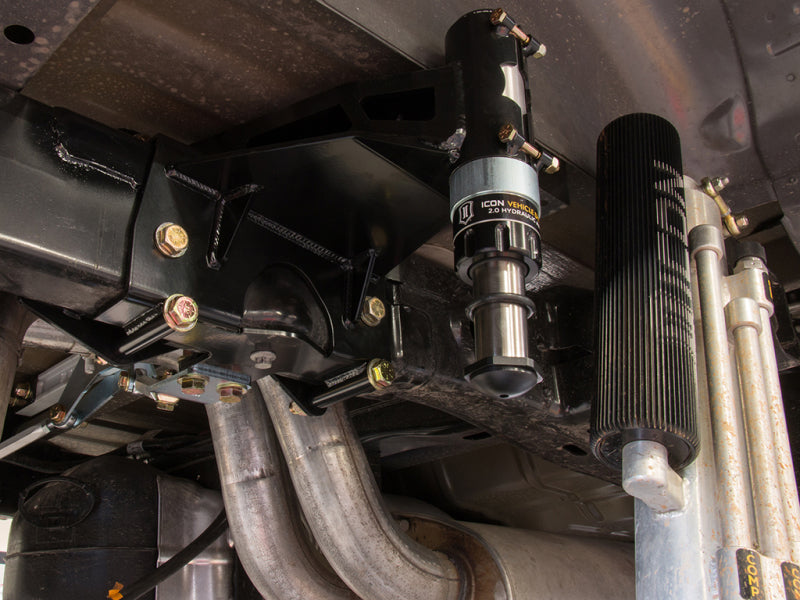

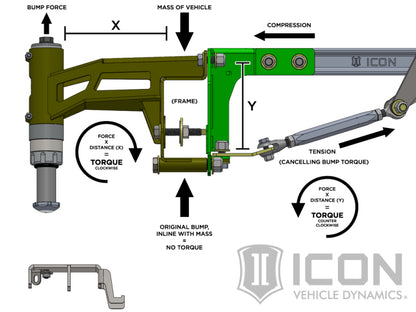

The function of the bump stop is to control and limit the final position of the suspension during up-travel. The factory bump stops have a limited energy absorption capacity and an uncontrolled release of this energy upon rebound translating into a harsh ride and poor handling during more aggressive driving in rough terrain. ICON addresses this weakness with a hydraulic rear bump stop kit which includes heavy duty steel clamshell brackets, a billet aluminum frame crossmember, adjustable tension rods, hydraulic bump stops, and all of the necessary hardware required to complete the installation.

For buyers who want the complete Stage 4 Suspension System instead of piecing a suspension together one part number at a time, the K93154 kit keeps the listed ICON components together as one package. You can see exactly what is included below, along with the application and wheel/tire notes needed to confirm the setup for your vehicle.

• Brand: ICON Vehicle Dynamics
• Part Number: K93154
• System: Stage 4 Suspension System
• Fitment: 2017-2020 Ford Raptor
• Total Kit Weight: 478 lb
• GTIN: 00840103420431

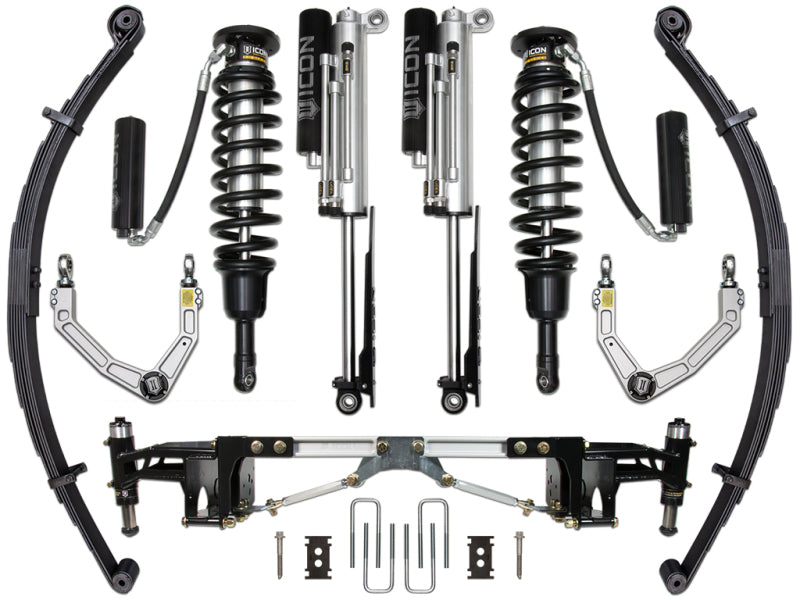

• Qty 1 – 95002: 17-20 Raptor Front 3.0 VS RR CDCV Coilover Kit
• Qty 1 – 98562DJ: 10-20 Raptor Billet UCA Dj Kit
• Qty 1 – 95205: 17-20 Raptor Rear 3.0 PB Pair
• Qty 1 – 95121: 17-20 Raptor Rear Hyd Bump Stop Kit
• Qty 2 – 198510: 17-20 Raptor Multi Rate Leaf Pack With Add In Leaf
• Qty 1 – 95225H: 17-20 Raptor Multi Rate Leaf Spring Hardware Kit

• Application Notes: 55, 61
• Tire & Wheel: 35X12.50 On 8.5" Wide Wheel W/ 5" Backspace

• 2017-2020 Ford Raptor
