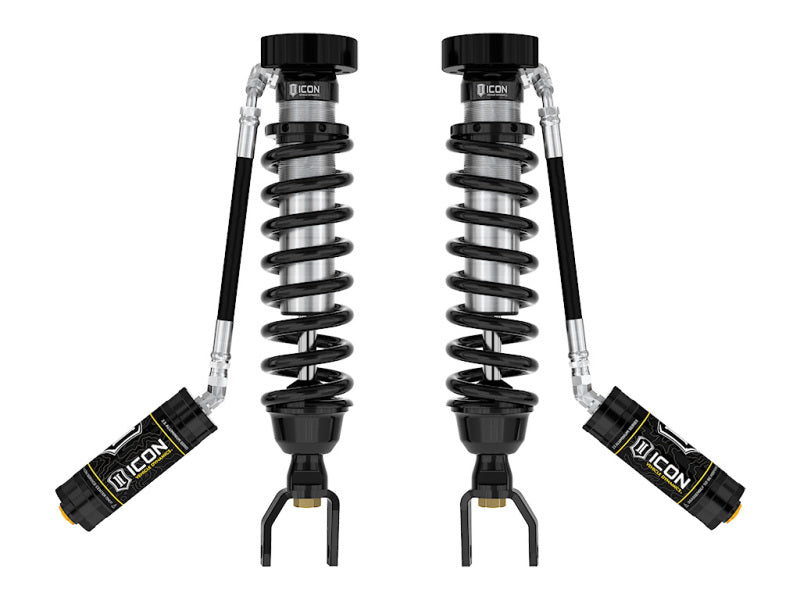

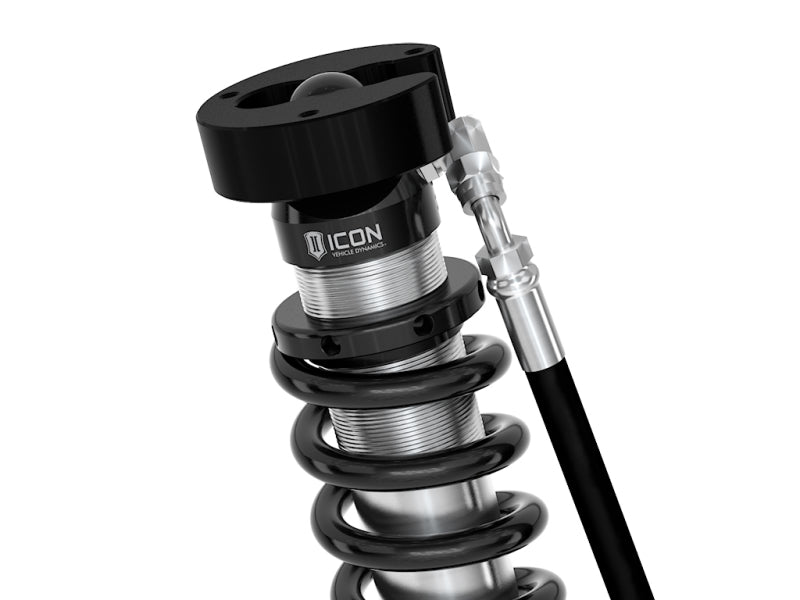

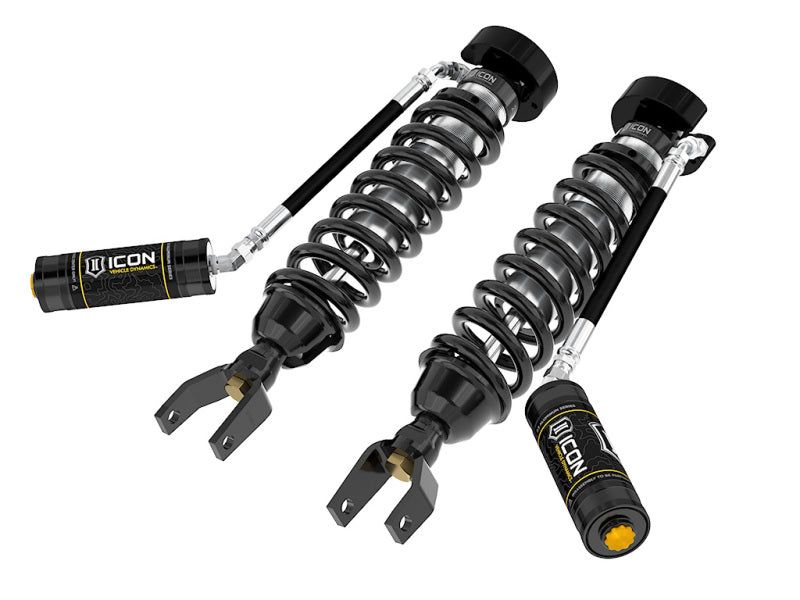

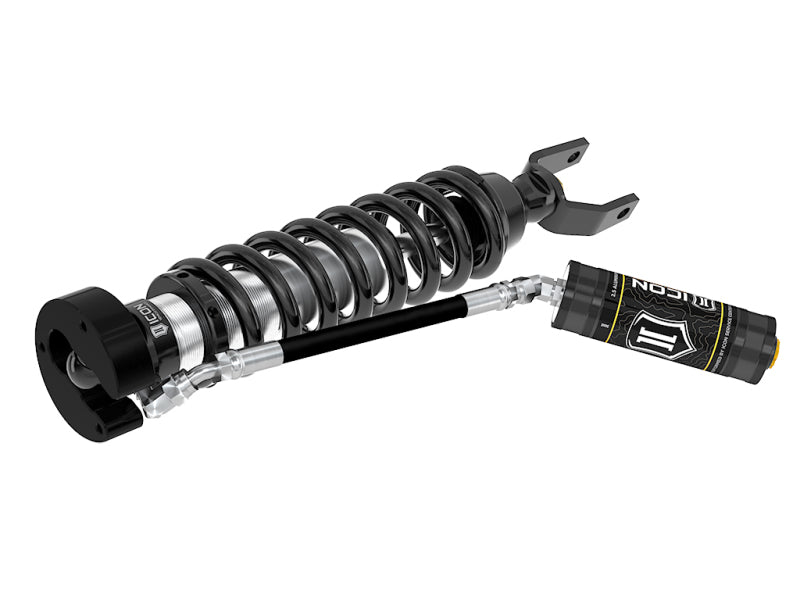

ICON 2-3in 2.5 V.S. Remote Reservoir Coilover Kit for 2019-2023 Ram 1500 - 211015

ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-UP Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. These remote reservoir coilovers will maintain lower operating temperatures and offer more consistent operation during extended or aggressive off-road use compared to internal reservoir versions. When paired with ICON 2.0 Aluminum Series or 2.5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.

This Part Fits:

Features

• Vehicle-specific 2.5-inch performance coilover
• Lift-height adjustment on applicable vehicles
• Larger piston/oil volume for improved damping and heat capacity
• Remote reservoir supports cooler, more consistent damping during extended use

Specifications

• Brand: ICON Vehicle Dynamics
• Product Type: Coilovers
• Manufacturer Part Number: 211015
• Variant SKU: ICO211015
• Series / Product Family: VEHICLE SPECIFIC (V.S) 2.5 SERIES COILOVER SHOCKS | OPTIONS: C = CDCV, E = CDEV, X = CDXS, -700 = 700 LB/IN COIL SPRING UPGRADE
• GTIN: 00840103411798
• Weight: 57 lb
• Application: 2019-2023 Ram 1500

Product Family

ICON V.S. 2.5 Series coilovers are vehicle-specific performance dampers designed to improve ride quality, control and usable suspension travel while providing lift-height adjustment on applicable vehicles. Larger 2.5-inch shock bodies increase piston area and oil volume, while reservoir and compression-adjustment options let the customer choose the level of performance and tunability needed.

Important Notes

• Recommended tire and wheel fitment: 35X12.50 (TRIMMING REQUIRED) on 9" wide wheel with 5" BACKSPACE (0MM OFFSET)

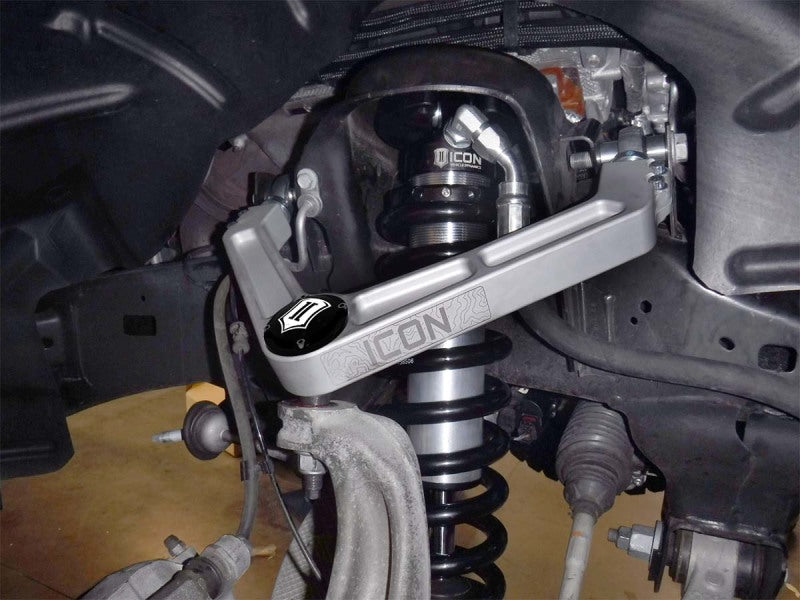

• These systems are to be used with aftermarket upper control arms only.
• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• Spring not rated for eco diesel equipped trucks.
• Not for vehicles with rear factory air ride.
• Will not fit 2019-UP Ram 1500 classic models.

Fitment

Year	Make	Model	Submodel
2019-2022	Ram	1500	Big Horn
2019-2022	Ram	1500	Laramie
2019-2021	Ram	1500	Laramie Longhorn
2019-2022	Ram	1500	Limited
2021-2022	Ram	1500	Limited Longhorn
2019-2022	Ram	1500	Lone Star
2021	Ram	1500	Longhorn
2019-2022	Ram	1500	Rebel
2019-2022	Ram	1500	Tradesman
