ICON 2in Stage 5 Billet Suspension System for 2020-2023 Jeep Gladiator - K22105

Upgrade the suspension on your 2020-2023 Jeep Gladiator with the ICON Vehicle Dynamics 2in Stage 5 Billet Suspension System, part number K22105. This complete kit brings the specified ICON suspension components together in one package, giving you an easier way to buy the full system without tracking down each part individually.

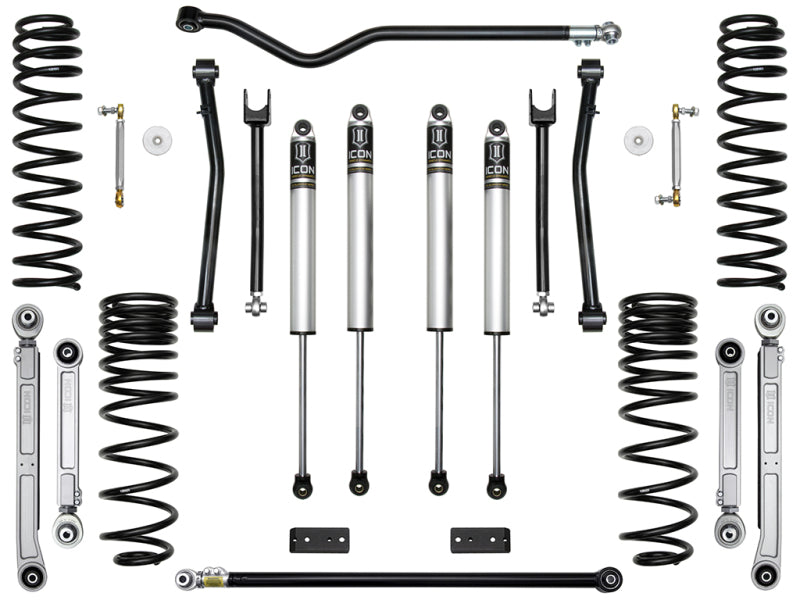

The Stage 5 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for significantly improving off-road performance and overall ride quality for the application that will see frequent moderate off-road use. This complete suspension system features 2.0 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, billet aluminum adjustable upper and lower rear links, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire.

For buyers who want the complete 2in Stage 5 Billet Suspension System instead of piecing a suspension together one part number at a time, the K22105 kit keeps the listed ICON components together as one package. You can see exactly what is included below, along with the application and wheel/tire notes needed to confirm the setup for your vehicle.

• Brand: ICON Vehicle Dynamics
• Part Number: K22105
• System: 2in Stage 5 Billet Suspension System
• Fitment: 2020-2023 Jeep Gladiator
• Total Kit Weight: 174 lb
• GTIN: 00840103415895

• Qty 1 – 22021: 18-23 Jl/20-23 Jt Front Fixed Lower Link Kit
• Qty 1 – 22022: 18-23 Jl/20-23 Jt Front Adj Upper Link Kit
• Qty 1 – 22063: 20-23 Jeep Jt/19-23 Ram 1500 Billet Rear Adjustable Lower Link Kit
• Qty 1 – 22064: 20-23 Jeep Jt/19-23 Ram 1500 Billet Rear Adjustable Upper Link Kit
• Qty 1 – 22025: 18-23 Jl 2.5"/20-23 Jt 2" Front Dual Rate Spring Kit
• Qty 1 – 22066: 20-Up Jt 1.5" Rear Multi Rate Spring Kit
• Qty 1 – 22061: 18-23 Jl/20-23 Jt Front Sway Bar Link Kit
• Qty 1 – 22062: 20-Up Jt Rear Sway Bar Relocation Kit
• Qty 1 – 22027: 18-Up Jl/20-Up Jt Front Adj Track Bar Kit
• Qty 1 – 22068: 20-23 Jeep Jt/19-23 Ram 1500 Rear Adj Track Bar Kit
• Qty 2 – 26523: 18-Up Jl/20-Up Jt 2.5" Front 2.0 VS IR
• Qty 2 – 26527: 20-Up Jt 2.5" Rear 2.0 VS IR

• Application Notes: 127, 150
• Tire & Wheel: 35X12.50 On 8.5" Wide Wheel W/ 4.5-4.75" Backspace

• 2020-2023 Jeep Gladiator
