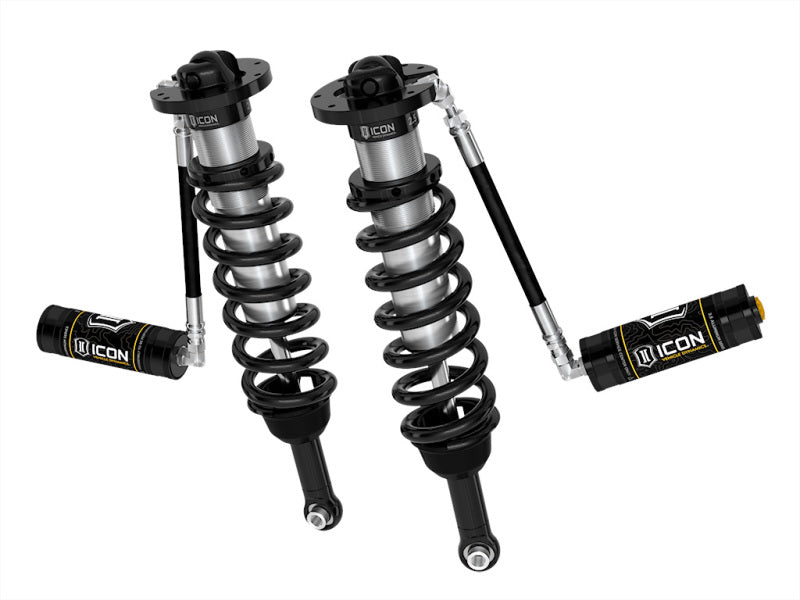

ICON 2.5 V.S. Remote Reservoir Coilover Kit for 2022-2025 Toyota Tundra/23-24 Toyota Sequoia - 58770

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-UP Toyota Tundra. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra.

This Part Fits:

Features

• Vehicle-specific 2.5-inch performance coilover
• Lift-height adjustment on applicable vehicles
• Larger piston/oil volume for improved damping and heat capacity
• Remote reservoir supports cooler, more consistent damping during extended use

Specifications

• Brand: ICON Vehicle Dynamics
• Product Type: Coilovers
• Manufacturer Part Number: 58770
• Variant SKU: ICO58770
• Series / Product Family: VEHICLE SPECIFIC (V.S) 2.5 SERIES COILOVER SHOCKS | OPTIONS: C = CDCV, E = CDEV, X = CDXS, -700 = 700 LB/IN COIL SPRING UPGRADE
• GTIN: 00840103414652
• Weight: 61 lb
• Application: 2022-2025 Toyota Tundra/23-24 Toyota Sequoia

Product Family

ICON V.S. 2.5 Series coilovers are vehicle-specific performance dampers designed to improve ride quality, control and usable suspension travel while providing lift-height adjustment on applicable vehicles. Larger 2.5-inch shock bodies increase piston area and oil volume, while reservoir and compression-adjustment options let the customer choose the level of performance and tunability needed.

Important Notes

• Recommended tire and wheel fitment: 35X12.50 on 17x8.5" wide wheel with 5.75" BACK SPACE
• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
• 22-UP Tundra SR5 equipped with TRD sport package lift range will be 1.75-4".
• ICON does not recommend lifting above 2.25" of lift without an ICON upper control arm, failure to do so can cause damage to axles.
• For non TRD models ICON recommends using ICON diff drop (part# 55156) or using Toyota TRD axles (part# 434200C020 driver / 434100C020 pass) failure to do so could result in axle damage.
• If equipped with TRD aluminum skid plate part # 55164 is also required.
• Not compatible with OE TRD billet front upper control arms regardless of lift height. Vehicles equipped with these will require ICON delta joint pro UCAs (part number 58461DJ or 58561DJ) for fitment.

Fitment

Year	Make	Model	Submodel
2022	Toyota	Tundra	1794 Edition
2022	Toyota	Tundra	Limited
2022	Toyota	Tundra	Platinum
2022	Toyota	Tundra	SR
2022	Toyota	Tundra	SR5
