ICON 4.5in Stage 1 Diesel Suspension System for 2023 Ford F-250/F-350 - K64541

Upgrade the suspension on your 2023 Ford F-250/F-350 with the ICON Vehicle Dynamics 4.5in Stage 1 Diesel Suspension System, part number K64541. This complete kit brings the specified ICON suspension components together in one package, giving you an easier way to buy the full system without tracking down each part individually.

ICON’s 4.5" Stage 1 System is comprised of 4.5” lift coil springs optimized for trucks equipped with diesel engines with a dual rate design that allows for a softer initial rate for superb on-road comfort and a firmer secondary rate that increases during compression for excellent bottoming resistance and off-road performance. Fabricated radius arm drop brackets correct suspension geometry and ensure proper wheel alignment with the OE radius arms. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer.

For buyers who want the complete 4.5in Stage 1 Diesel Suspension System instead of piecing a suspension together one part number at a time, the K64541 kit keeps the listed ICON components together as one package. You can see exactly what is included below, along with the application and wheel/tire notes needed to confirm the setup for your vehicle.

• Brand: ICON Vehicle Dynamics
• Part Number: K64541
• System: 4.5in Stage 1 Diesel Suspension System
• Fitment: 2023 Ford F-250/F-350
• Total Kit Weight: 185 lb
• GTIN: 00840103428482

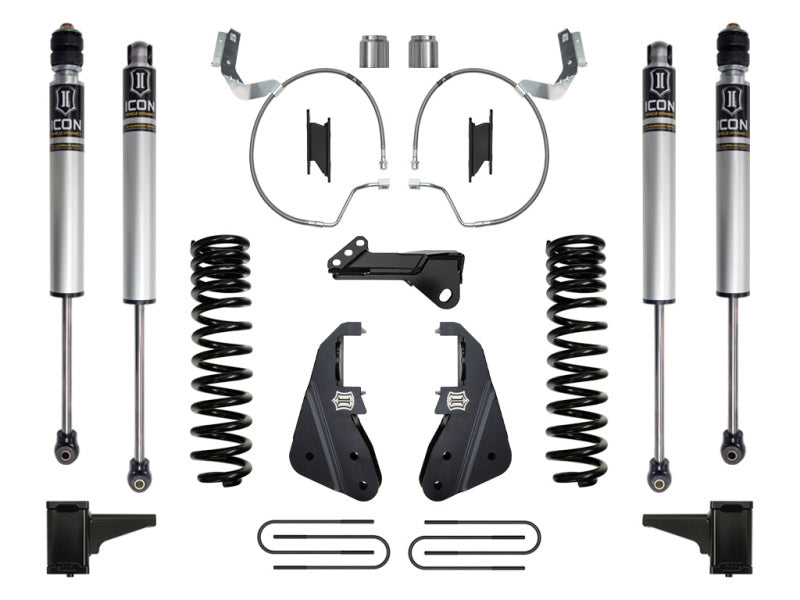

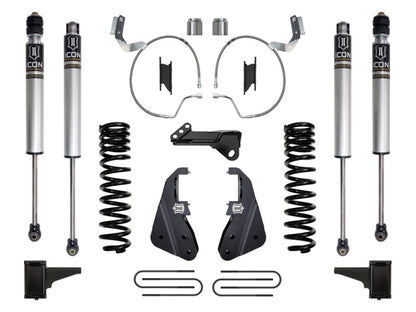

• Qty 1 – 64051: 23-24 Fsd Front 4.5" Box Kit
• Qty 1 – 64012: 23-24 Ford F-250/F-350 Front 4.5" Diesel Dual Rate Spring Kit
• Qty 1 – 64039: 08-24 Fsd Track Bar Bump Steer Bracket Kit
• Qty 1 – 64046: 23 Fsd Radius Arm Drop Kit
• Qty 1 – 195275: 99-24 Fsd 5" Block Kit
• Qty 1 – 67003: 11-24 Fsd Rear 15" U-Bolt Kit
• Qty 2 – 66518: 23-24 Fsd 4WD 4.5" Front 2.0 VS IR
• Qty 2 – 66516: 17-24 Fsd Rear 0-2" 2.0 VS IR

• Application Notes: 6, 55, 115, 151
• Tire & Wheel: 37X12.50 On 8.5" Wide Wheel W/ 5" Backspace

• 2023 Ford F-250/F-350
