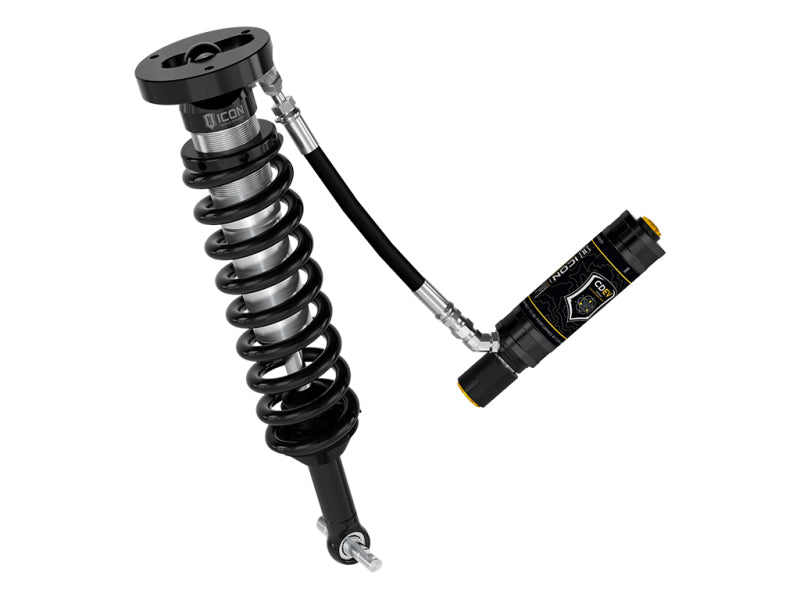

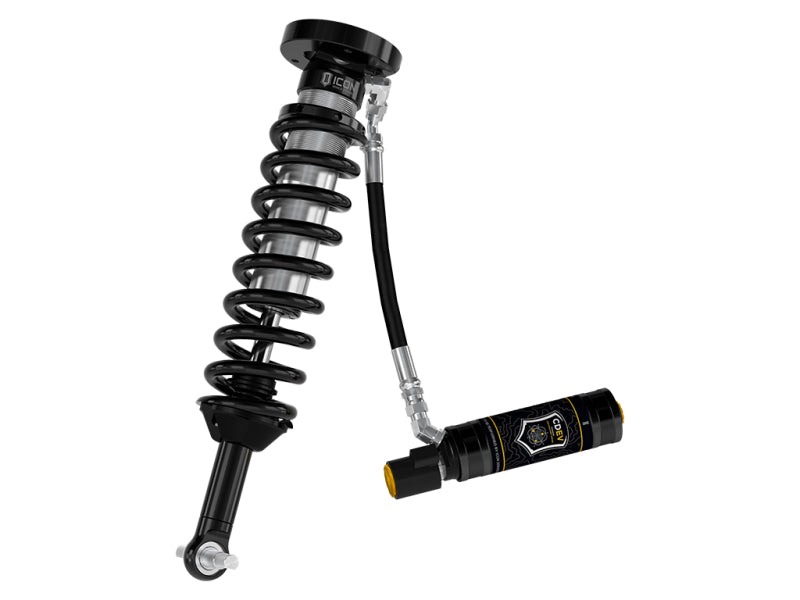

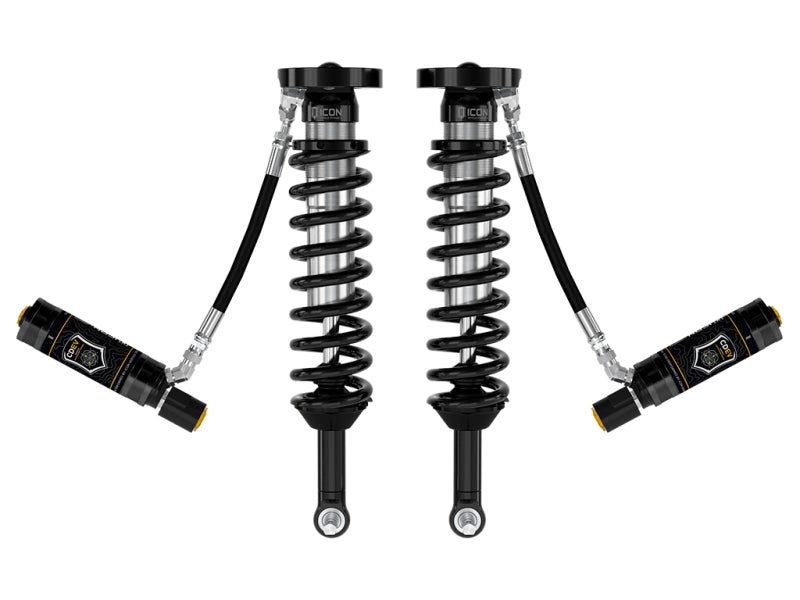

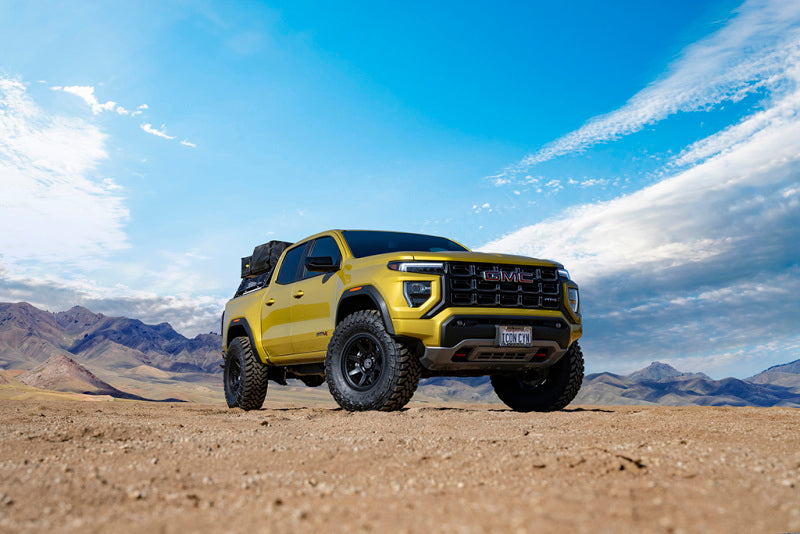

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2023 GMC Canyon and 2023 Chevrolet Colorado Trail Boss trucks. Their longer length offers a 20% increase in total front wheel travel compared to stock, for a total of 10.25” of front wheel travel. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-2.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON 2.5 Series CDEV rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your GMC Canyon or Chevrolet Colorado Trail Boss.
This Part Fits:
Features
- Vehicle-specific 2.5-inch performance coilover
- Lift-height adjustment on applicable vehicles
- Larger piston/oil volume for improved damping and heat capacity
- CDEV-equipped configuration supports electronic compression-damping control
- Remote reservoir supports cooler, more consistent damping during extended use
Specifications
-
Brand: ICON Vehicle Dynamics
-
Product Type: Coilovers
-
Manufacturer Part Number: 71670E
-
Variant SKU: ICO71670E
-
Series / Product Family: VEHICLE SPECIFIC (V.S) 2.5 SERIES COILOVER SHOCKS | OPTIONS: C = CDCV, E = CDEV, X = CDXS, -700 = 700 LB/IN COIL SPRING UPGRADE
-
GTIN: 00840103427164
-
Weight: 62 lb
-
Application: 2023-2024 GM Canyon/Colorado
Product Family
ICON V.S. 2.5 Series coilovers are vehicle-specific performance dampers designed to improve ride quality, control and usable suspension travel while providing lift-height adjustment on applicable vehicles. Larger 2.5-inch shock bodies increase piston area and oil volume, while reservoir and compression-adjustment options let the customer choose the level of performance and tunability needed.
Important Notes
- Recommended tire and wheel fitment: 35X12.50 on 8.5" wide wheel with 5.46" BACKSPACE
- Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
- ICON delta joint pro upper control arms required.
- Springs are rated for gasoline engines.
- Only fits "ultra wide stance" vehicles.
- Will not fit chevrolet colorado wt, lt, Z71, or ZR2. Will not fit GMC canyon AT4X.
Fitment
| Year |
Make |
Model |
Submodel |
| 2023 |
Chevrolet |
Colorado |
Trail Boss |
| 2023 |
GMC |
Canyon |
AT4 |
| 2023 |
GMC |
Canyon |
Denali |
| 2023 |
GMC |
Canyon |
Elevation |
