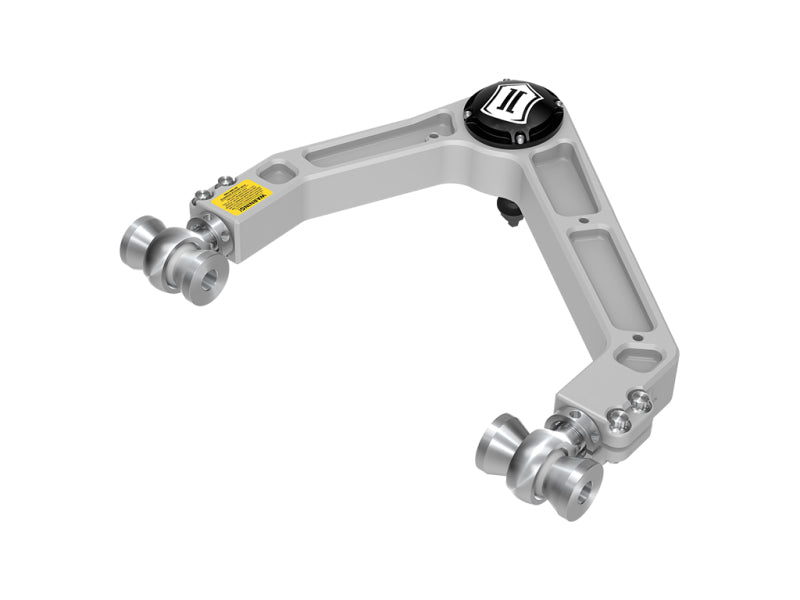

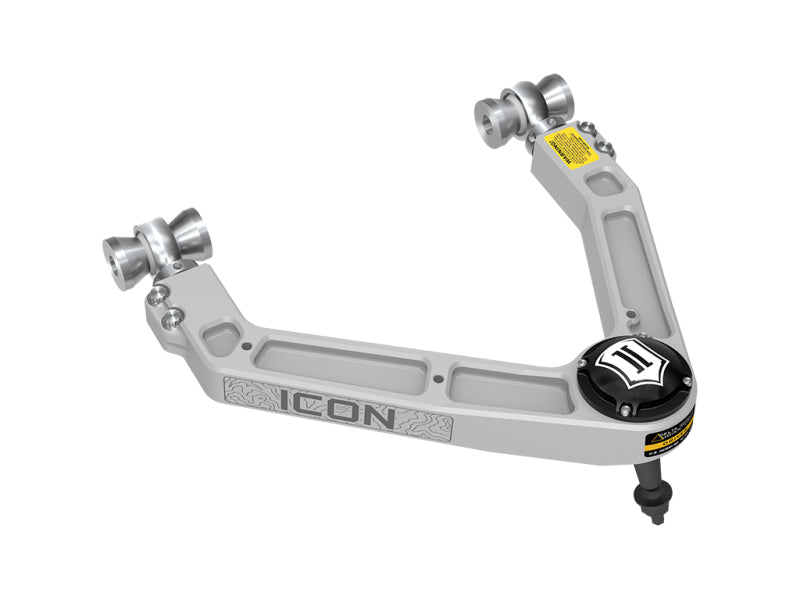

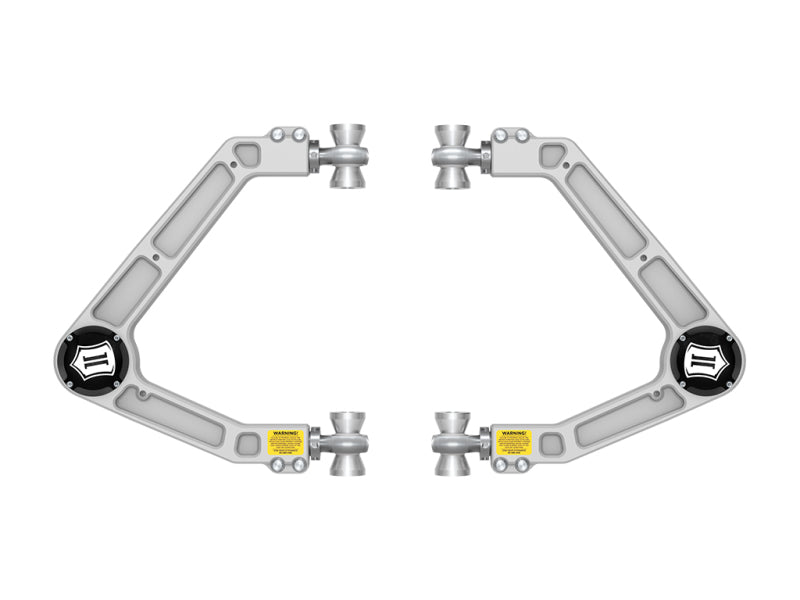

ICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than ICON's standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. ICON also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
This Part Fits:
Features
- CNC-machined billet upper control arm construction
- Corrected geometry for applicable lifted vehicles
- High-articulation serviceable Delta Joint technology on applicable kits
- Delta Joint Pro provides high articulation with a serviceable sealed joint
Specifications
-
Brand: ICON Vehicle Dynamics
-
Product Type: Control Arms
-
Manufacturer Part Number: 78760DJ
-
Variant SKU: ICO78760DJ
-
Series / Product Family: BILLET UPPER CONTROL ARMS
-
GTIN: 00840103427225
-
Weight: 23 lb
-

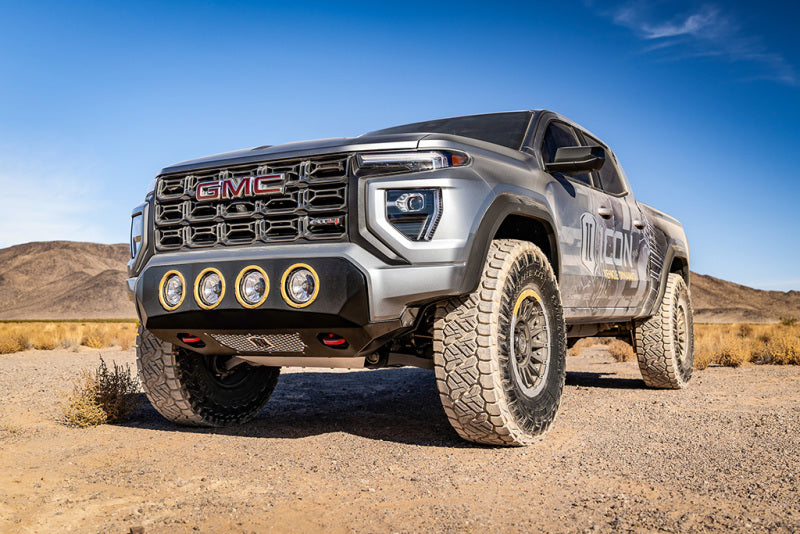

Application: 2023-2024 GM Canyon/Colorado
Product Family
ICON billet upper control arms are premium geometry-correction upgrades for lifted applications. ICON uses CNC-machined billet construction on applicable arms and pairs many current designs with the high-articulation, serviceable Delta Joint or Delta Joint Pro to improve suspension travel, alignment capability and durability.
Important Notes
- Recommended tire and wheel fitment: 35X12.50 on 8.5" wide wheel with 5.46" BACKSPACE
- Only fits "ultra wide stance" vehicles.
Fitment
| Year |
Make |
Model |
Submodel |
| 2023 |
Chevrolet |
Colorado |
Trail Boss |
| 2023 |
Chevrolet |
Colorado |
ZR2 |
| 2023 |
GMC |
Canyon |
AT4 |
| 2023 |
GMC |
Canyon |
AT4X |
| 2023 |
GMC |
Canyon |
Denali |
| 2023 |
GMC |
Canyon |
Elevation |
