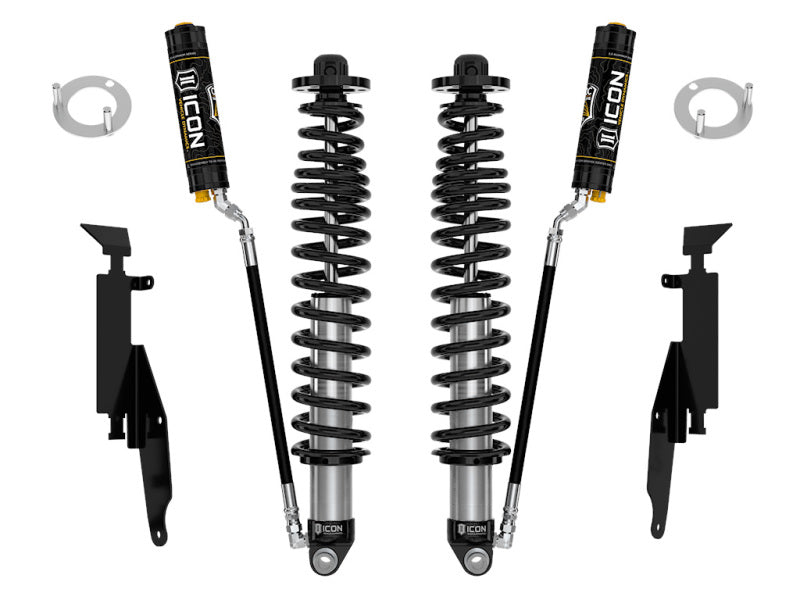

ICON Rear 2.5 V.S. Remote Reservoir CDCV Coilover Kit Heavy Rate Spring for 2021-2023 Ford Bronco - 48711C

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir rear coilover shocks with CDCV are an incredible upgrade for the rear end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 2-3” of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25” of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics. This shaft up orientation also requires the reservoir hose to be routed along the rear lower links so ICON offers hose bracket options for the OE or ICON tubular links while ICON billet links incorporate this bracketry into their design. When paired with ICON 2.5 Series front coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.

Features

• Vehicle-specific 2.5-inch performance coilover
• Lift-height adjustment on applicable vehicles
• Larger piston/oil volume for improved damping and heat capacity
• CDCV-equipped configuration provides external compression-damping adjustment
• Remote reservoir supports cooler, more consistent damping during extended use

Specifications

• Brand: ICON Vehicle Dynamics
• Product Type: Coilovers
• Manufacturer Part Number: 48711C
• Variant SKU: ICO48711C
• Series / Product Family: VEHICLE SPECIFIC (V.S) 2.5 SERIES COILOVER SHOCKS | OPTIONS: C = CDCV, E = CDEV, X = CDXS, -700 = 700 LB/IN COIL SPRING UPGRADE
• GTIN: 00840103424217
• Weight: 72 lb
• Application: 2021-2023 Ford Bronco

Product Family

ICON V.S. 2.5 Series coilovers are vehicle-specific performance dampers designed to improve ride quality, control and usable suspension travel while providing lift-height adjustment on applicable vehicles. Larger 2.5-inch shock bodies increase piston area and oil volume, while reservoir and compression-adjustment options let the customer choose the level of performance and tunability needed.

Important Notes

• Recommended tire and wheel fitment: 35X12.50 on 8.5” wide wheel with 4.75” BACKSPACE (SASQUATCH) 5.75” BACKSPACE (Non-SASQUATCH)
• 2 door models will sit taller than 4 door models.
• When running 37" tires use up travel limiter's part# 611074 for the rear.
• When running ICON tubular lower links use part# 611073.
• When running factory lower links use part# 611072.
• Shocks are fully serviceable.
• Rear reservoir brackets may interfere with some aftermarket step or rock slider mounts. Modifications may be required.

Fitment

Fits 2021-2023 Ford Bronco.
