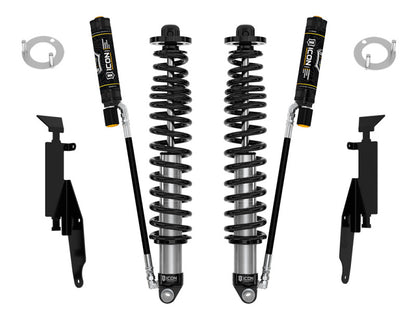

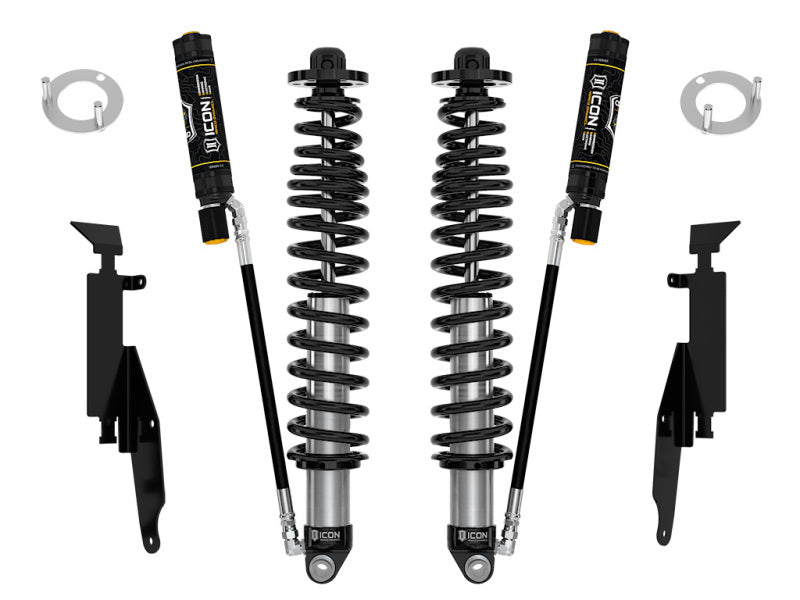

ICON Rear 2.5 V.S. Remote Reservoir CDEV Coilover Kit Heavy Rate Spring for 2021-2023 Ford Bronco - 48711E

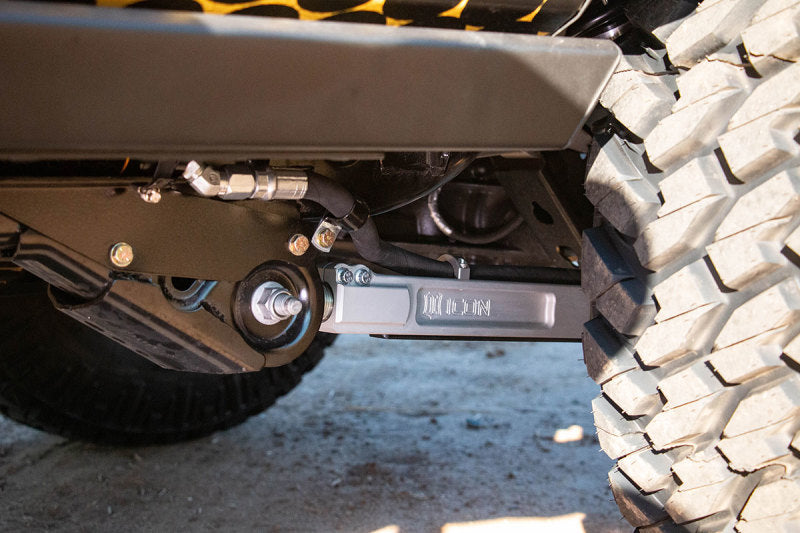

These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics. Their shaft up orientation requires the reservoir hose to be routed along the rear lower links so ICON offers hose bracket options for the OE or ICON tubular links while ICON billet links incorporate this bracketry into their design.

Features

• Vehicle-specific 2.5-inch performance coilover
• Lift-height adjustment on applicable vehicles
• Larger piston/oil volume for improved damping and heat capacity
• CDEV-equipped configuration supports electronic compression-damping control
• Remote reservoir supports cooler, more consistent damping during extended use

Specifications

• Brand: ICON Vehicle Dynamics
• Product Type: Coilovers
• Manufacturer Part Number: 48711E
• Variant SKU: ICO48711E
• Series / Product Family: VEHICLE SPECIFIC (V.S) 2.5 SERIES COILOVER SHOCKS | OPTIONS: C = CDCV, E = CDEV, X = CDXS, -700 = 700 LB/IN COIL SPRING UPGRADE
• GTIN: 00840103424224
• Weight: 70 lb
• Application: 2021-2023 Ford Bronco

Product Family

ICON V.S. 2.5 Series coilovers are vehicle-specific performance dampers designed to improve ride quality, control and usable suspension travel while providing lift-height adjustment on applicable vehicles. Larger 2.5-inch shock bodies increase piston area and oil volume, while reservoir and compression-adjustment options let the customer choose the level of performance and tunability needed.

Important Notes

• Recommended tire and wheel fitment: 35X12.50 on 8.5” wide wheel with 4.75” BACKSPACE (SASQUATCH) 5.75” BACKSPACE (Non-SASQUATCH)
• 2 door models will sit taller than 4 door models.
• When running 37" tires use up travel limiter's part# 611074 for the rear.
• When running ICON tubular lower links use part# 611073.
• When running factory lower links use part# 611072.
• Shocks are fully serviceable.
• Rear reservoir brackets may interfere with some aftermarket step or rock slider mounts. Modifications may be required.

Fitment

Fits 2021-2023 Ford Bronco.
