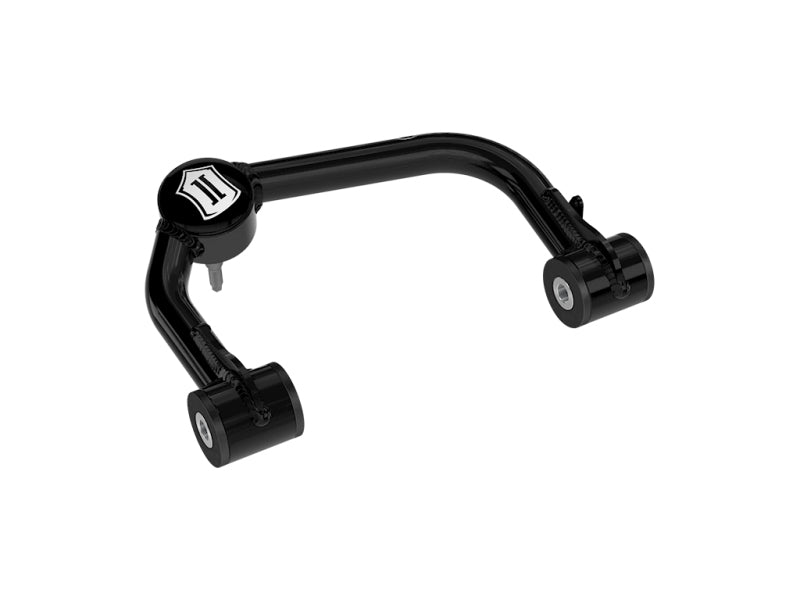

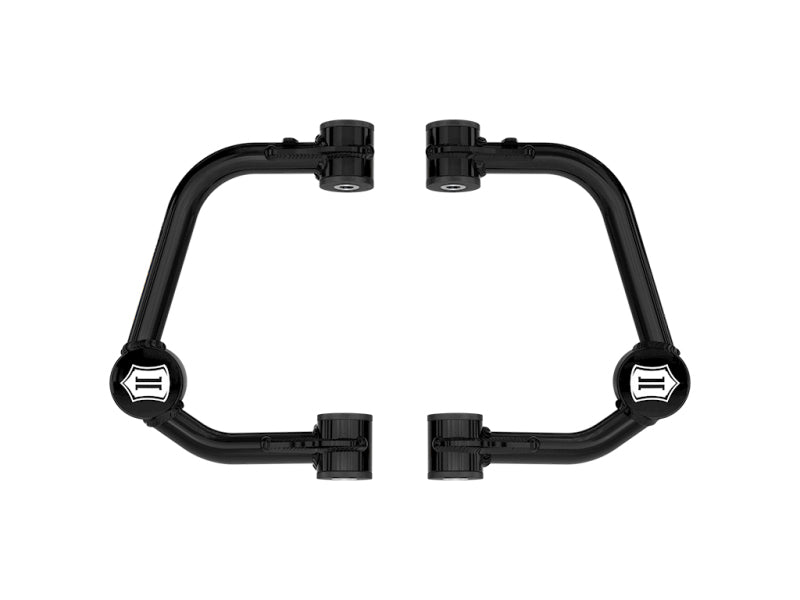

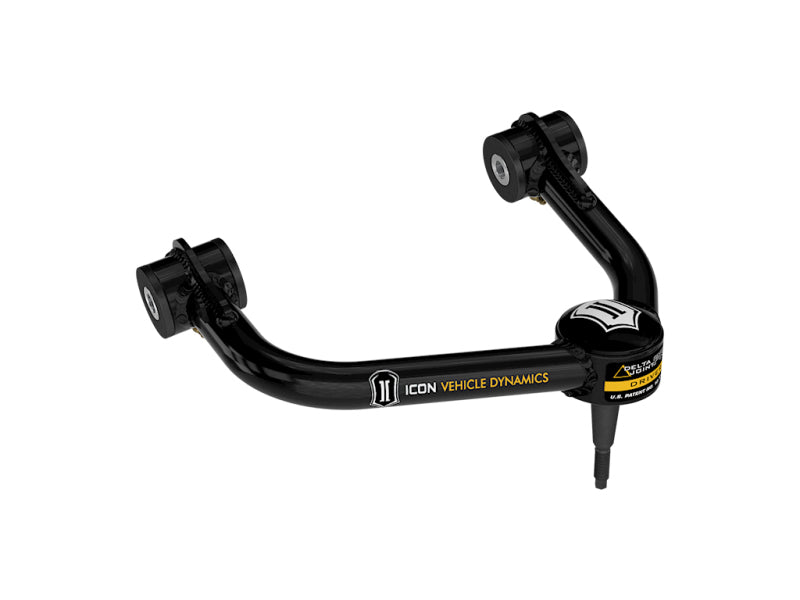

ICON Tubular Upper Control Arm Delta Joint Pro Kit for 2021-2024 F-150 - 98522DJ

ICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected, and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than ICON's standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. ICON also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.

This Part Fits:

Features

• Heavy-duty tubular upper control arm construction
• Application-specific geometry for lifted suspension setups
• Serviceable Delta Joint / Delta Joint Pro technology on applicable kits
• Delta Joint Pro provides high articulation with a serviceable sealed joint

Specifications

• Brand: ICON Vehicle Dynamics
• Product Type: Control Arms
• Manufacturer Part Number: 98522DJ
• Variant SKU: ICO98522DJ
• Series / Product Family: TUBULAR UPPER CONTROL ARMS
• GTIN: 00840103423715
• Weight: 22 lb
• Application: 2021-2024 F-150

Product Family

ICON tubular upper control arms use heavy-duty tubular construction and application-specific geometry to improve alignment and articulation on lifted vehicles. Current Delta Joint Pro designs combine high articulation with a sealed, serviceable joint, while the arm structure is built for demanding street and off-road use.

Important Notes

• Recommended tire and wheel fitment: 34X12.50 on 8.5" wide wheel with 5" BACKSPACE
• Will not work with factory installed electronically controlled suspension.

Fitment

Year	Make	Model	Submodel
2021-2023	Ford	F-150	King Ranch
2021-2023	Ford	F-150	Lariat
2021-2023	Ford	F-150	Platinum
2021-2023	Ford	F-150	Police Responder
2021-2023	Ford	F-150	SSV
2021-2023	Ford	F-150	Tremor
2021-2023	Ford	F-150	XL
2021-2023	Ford	F-150	XLT
