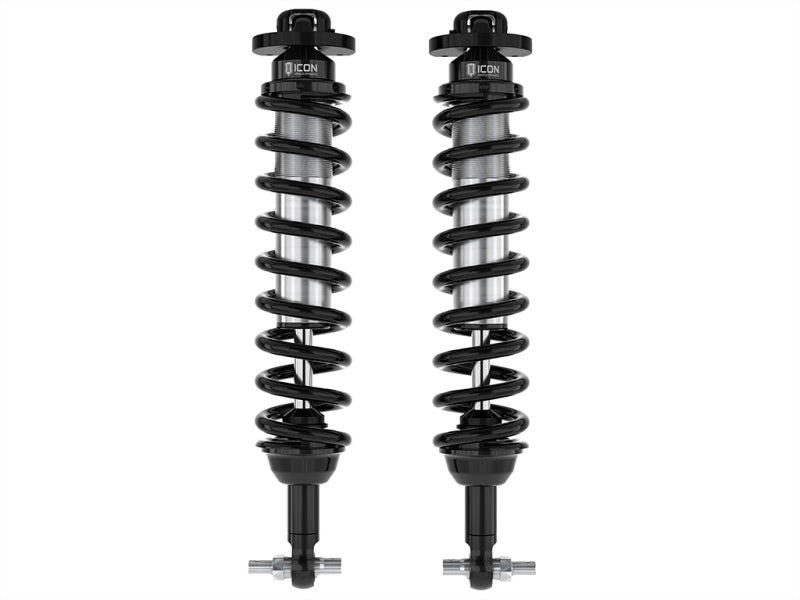

ICON Front 2.5 V.S. Internal Reservoir Coilover Kit for 2021-2023 Ford Bronco - 48600

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2021-UP Ford Bronco. These adjustable coilovers allow up to 3-4” of lift height adjustability on Broncos without the Sasquatch package or 2-3” of lift over stock Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.5 Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.

This Part Fits:

Features

• Vehicle-specific 2.5-inch performance coilover
• Lift-height adjustment on applicable vehicles
• Larger piston/oil volume for improved damping and heat capacity

Specifications

• Brand: ICON Vehicle Dynamics
• Product Type: Coilovers
• Manufacturer Part Number: 48600
• Variant SKU: ICO48600
• Series / Product Family: VEHICLE SPECIFIC (V.S) 2.5 SERIES COILOVER SHOCKS | OPTIONS: C = CDCV, E = CDEV, X = CDXS, -700 = 700 LB/IN COIL SPRING UPGRADE
• GTIN: 00840103412351
• Weight: 55 lb
• Application: 2021-2023 Ford Bronco

Product Family

ICON V.S. 2.5 Series coilovers are vehicle-specific performance dampers designed to improve ride quality, control and usable suspension travel while providing lift-height adjustment on applicable vehicles. Larger 2.5-inch shock bodies increase piston area and oil volume, while reservoir and compression-adjustment options let the customer choose the level of performance and tunability needed.

Important Notes

• Recommended tire and wheel fitment: 35X12.50 on 8.5” wide wheel with 4.75” BACKSPACE (SASQUATCH) 5.75” BACKSPACE (Non-SASQUATCH)
• Factory UCA’s will not align properly past 2.5” of lift. Above 2.5” of lift an aftermarket UCA is recommended.
• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• When running 37" tires use up travel limiter's part# 611075 in the front.
• Recommended crash bars part# 42000 on non-sasquatch equipped vehicles when running 35" tires.
• When running 37" tires crash bar removal may be required but is not recommended.

Fitment

Year	Make	Model	Submodel
2021-2022	Ford	Bronco	Base
2021	Ford	Bronco	First Edition
