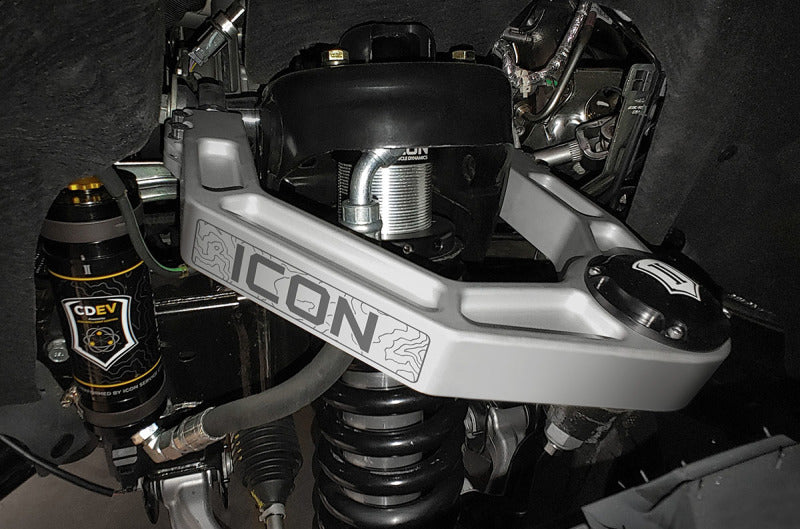

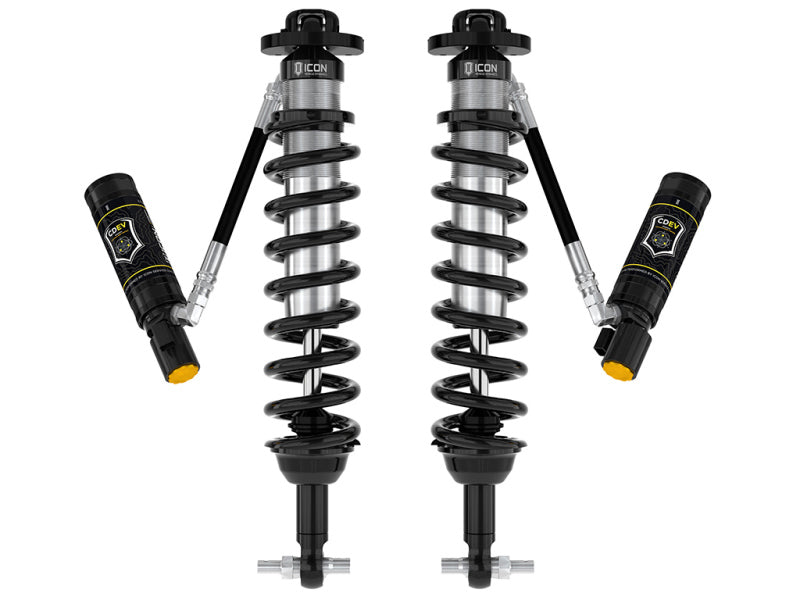

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDEV are the ideal upgrade for the front end of the 2021-UP Ford Bronco. These adjustable coilovers allow up to 3-4” of lift height adjustability on Broncos without the Sasquatch package or 2-3” of lift over stock Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Electronic Valves (CDEV) are included to allow for lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the CDEV at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. ICON 2.5 Series rear coilovers with CDEV and matching IIC module are required for installation but vehicle control will be actively balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.
This Part Fits:
Features
- Vehicle-specific 2.5-inch performance coilover
- Lift-height adjustment on applicable vehicles
- Larger piston/oil volume for improved damping and heat capacity
- CDEV-equipped configuration supports electronic compression-damping control
- Remote reservoir supports cooler, more consistent damping during extended use
Specifications
-
Brand: ICON Vehicle Dynamics
-
Product Type: Coilovers
-
Manufacturer Part Number: 48700E
-
Variant SKU: ICO48700E
-
Series / Product Family: VEHICLE SPECIFIC (V.S) 2.5 SERIES COILOVER SHOCKS | OPTIONS: C = CDCV, E = CDEV, X = CDXS, -700 = 700 LB/IN COIL SPRING UPGRADE
-
GTIN: 00840103412382
-
Weight: 70 lb
-
Application: 2021-2023 Ford Bronco
Product Family
ICON V.S. 2.5 Series coilovers are vehicle-specific performance dampers designed to improve ride quality, control and usable suspension travel while providing lift-height adjustment on applicable vehicles. Larger 2.5-inch shock bodies increase piston area and oil volume, while reservoir and compression-adjustment options let the customer choose the level of performance and tunability needed.
Important Notes
- Recommended tire and wheel fitment: 35X12.50 on 8.5” wide wheel with 4.75” BACKSPACE (SASQUATCH) 5.75” BACKSPACE (Non-SASQUATCH)
- Factory UCA’s will not align properly past 2.5” of lift. Above 2.5” of lift an aftermarket UCA is recommended.
- Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
- When running 37" tires use up travel limiter's part# 611075 in the front.
- Recommended crash bars part# 42000 on non-sasquatch equipped vehicles when running 35" tires.
- When running 37" tires crash bar removal may be required but is not recommended.
Fitment
| Year |
Make |
Model |
Submodel |
| 2021-2022 |
Ford |
Bronco |
Base |
| 2021 |
Ford |
Bronco |
First Edition |
