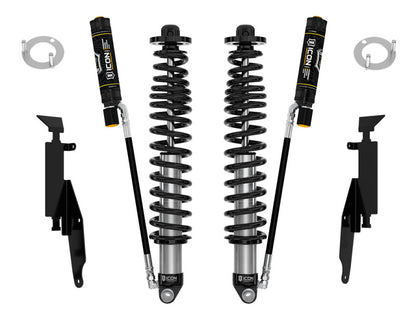

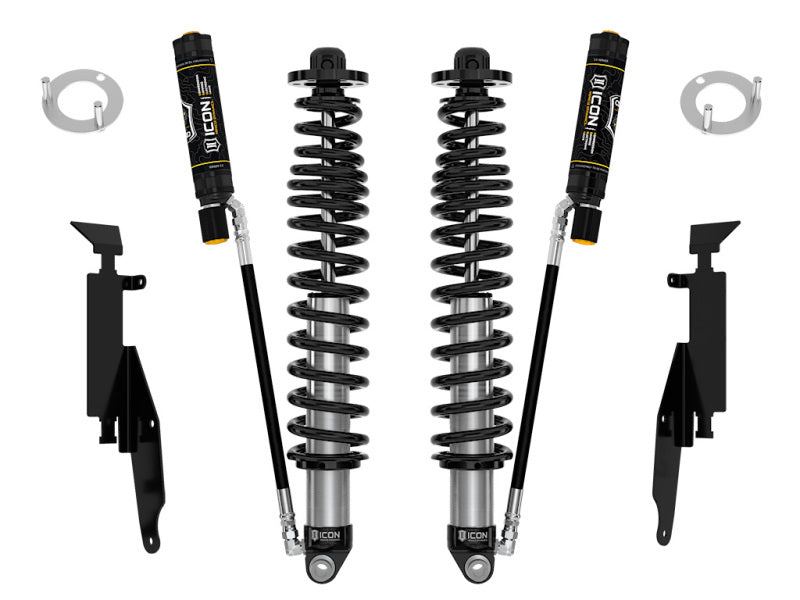

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir rear coilover shocks with CDEV are the ideal upgrade for the rear end of the 2021-UP Ford Bronco. These adjustable coilovers allow up to 2-3” of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25” of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Electronic Valves (CDEV) are included to allow for lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the CDEV at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. These rear coilovers feature unique ICON engineered progressive triple rate coil springs, allowing for softer spring rate at ride height that ramps up as the coil compresses for improved bottom out resistance. Their shaft up orientation requires the reservoir hose to be routed along the rear lower links so ICON offers hose bracket options for the OE or ICON tubular links while ICON billet links incorporate this bracketry into their design. ICON 2.5 Series front coilovers with CDEV and matching IIC module are required for installation but vehicle control will be actively balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.
This Part Fits:
Features
- Vehicle-specific 2.5-inch performance coilover
- Lift-height adjustment on applicable vehicles
- Larger piston/oil volume for improved damping and heat capacity
- CDEV-equipped configuration supports electronic compression-damping control
- Remote reservoir supports cooler, more consistent damping during extended use
Specifications
-
Brand: ICON Vehicle Dynamics
-
Product Type: Coilovers
-
Manufacturer Part Number: 48710E
-
Variant SKU: ICO48710E
-
Series / Product Family: VEHICLE SPECIFIC (V.S) 2.5 SERIES COILOVER SHOCKS | OPTIONS: C = CDCV, E = CDEV, X = CDXS, -700 = 700 LB/IN COIL SPRING UPGRADE
-
GTIN: 00840103414133
-
Weight: 72 lb
-
Application: 2021-2023 Ford Bronco
Product Family
ICON V.S. 2.5 Series coilovers are vehicle-specific performance dampers designed to improve ride quality, control and usable suspension travel while providing lift-height adjustment on applicable vehicles. Larger 2.5-inch shock bodies increase piston area and oil volume, while reservoir and compression-adjustment options let the customer choose the level of performance and tunability needed.
Important Notes
- Recommended tire and wheel fitment: 35X12.50 on 8.5” wide wheel with 4.75” BACKSPACE (SASQUATCH) 5.75” BACKSPACE (Non-SASQUATCH)
- Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
- 2 door models will sit taller than 4 door models.
- When running 37" tires use up travel limiter's part# 611074 for the rear.
- When running ICON tubular lower links use part# 611073.
- When running factory lower links use part# 611072.
- Rear reservoir brackets may interfere with some aftermarket step or rock slider mounts. Modifications may be required.
Fitment
| Year |
Make |
Model |
Submodel |
| 2021-2022 |
Ford |
Bronco |
Base |
| 2021 |
Ford |
Bronco |
First Edition |
