ICON 2-3.25in Stage 5 Tubular Suspension System for 2022-2025 Tundra - K53215T

Upgrade the suspension on your 2022-2025 Tundra with the ICON Vehicle Dynamics 2-3.25in Stage 5 Tubular Suspension System, part number K53215T. This complete kit brings the specified ICON suspension components together in one package, giving you an easier way to buy the full system without tracking down each part individually.

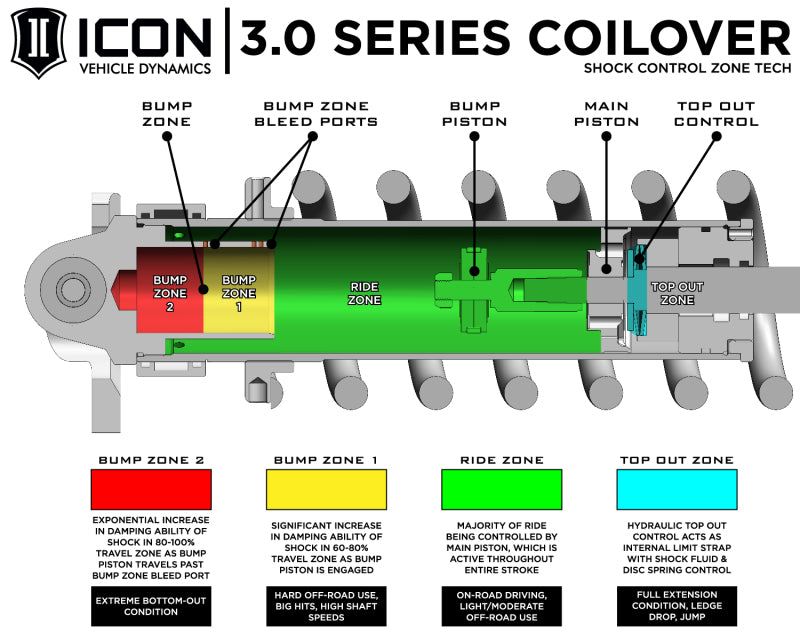

This Stage 5 system features the 2022-2023 Toyota Tundra VS 3.0 Series remote reservoir front coilovers equipped with CDE Valves. These adjustable coilovers allow up to 2-3.25” of lift height adjustability over stock when using the ICON tubular front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. The larger 3.0 Series shocks offer 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks.

For buyers who want the complete 2-3.25in Stage 5 Tubular Suspension System instead of piecing a suspension together one part number at a time, the K53215T kit keeps the listed ICON components together as one package. You can see exactly what is included below, along with the application and wheel/tire notes needed to confirm the setup for your vehicle.

• Brand: ICON Vehicle Dynamics
• Part Number: K53215T
• System: 2-3.25in Stage 5 Tubular Suspension System
• Fitment: 2022-2025 Tundra
• Total Kit Weight: 207 lb

• Qty 1 – 58775E: 22-25 Tundra/23-24 Sequoia 3.0 VS RR Cdev Coilover Kit
• Qty 1 – 58461DJ: 22-25 Tundra/23-24 Sequoia Tubular UCA Dj Pro Kit
• Qty 1 – 55154: 22-25 Tundra/23-24 Sequoia Sway Bar Drop Kit
• Qty 1 – 54002T: 22-25 Tundra/23-24 Sequoia/24-25 Tacoma Tubular Rear Lower Link Kit
• Qty 1 – 54102T: 22-25 Tundra/23-24 Sequoia/24-25 Tacoma/24 Lc250/Gx550 Tube Rear Upper Link Kit
• Qty 1 – 53508: 22-25 Tundra/23-24 Sequoia Iic Install Kit
• Qty 1 – 57845EP: 22-25 Tundra 0-1.5"/23-24 Sequoia 0-4" Rear 3.0 VS RR Cdev Pair

• Application Notes: 55, 85, 142, 149, 171
• TIRE & WHEEL: 35X12.50 ON 17x8.5" WIDE WHEEL W/ 5.75" BACK SPACE

• 2022-2025 Tundra
