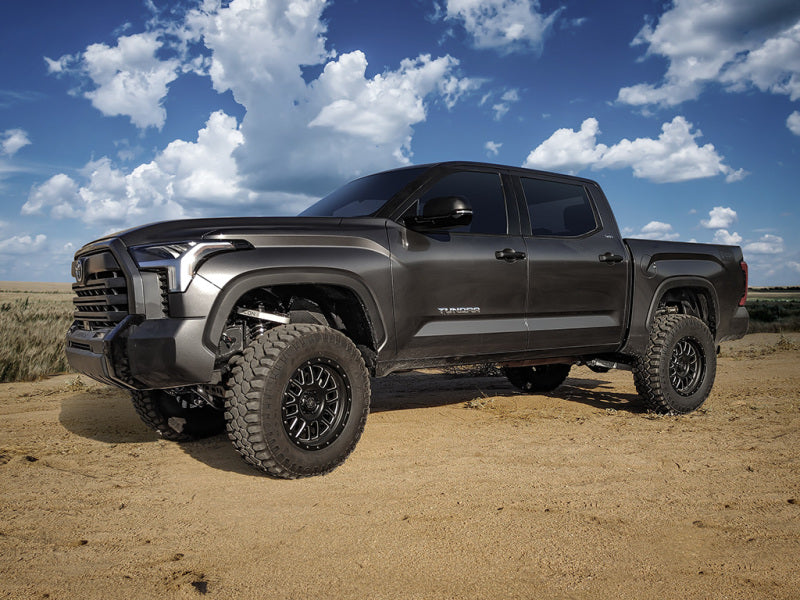

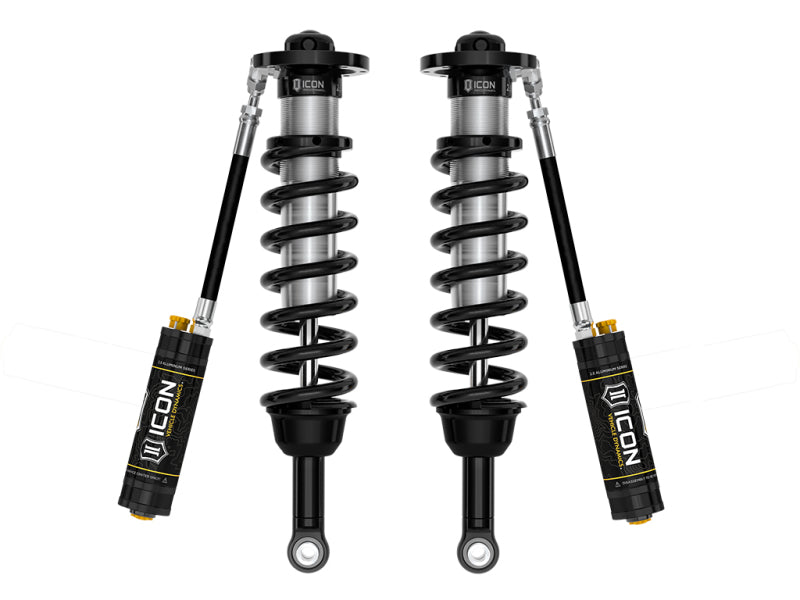

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2023 Toyota Tundra. These adjustable coilovers are specifically designed for use the ICON 6" Lift Performance Suspension System and allow up to 5-6” of front lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra.
This Part Fits:
Features
- Vehicle-specific 2.5-inch performance coilover
- Lift-height adjustment on applicable vehicles
- Larger piston/oil volume for improved damping and heat capacity
- CDCV-equipped configuration provides external compression-damping adjustment
- Remote reservoir supports cooler, more consistent damping during extended use
Specifications
-
Brand: ICON Vehicle Dynamics
-
Product Type: Shocks and Struts
-
Manufacturer Part Number: 58771C
-
Variant SKU: ICO58771C
-
Series / Product Family: VEHICLE SPECIFIC (V.S) 2.5 SERIES COILOVER SHOCKS | OPTIONS: C = CDCV, E = CDEV, X = CDXS, -700 = 700 LB/IN COIL SPRING UPGRADE
-
GTIN: 00840103425634
-
Weight: 62 lb
-
Application: 2022-2024 Toyota Tundra
Product Family
ICON V.S. 2.5 Series coilovers are vehicle-specific performance dampers designed to improve ride quality, control and usable suspension travel while providing lift-height adjustment on applicable vehicles. Larger 2.5-inch shock bodies increase piston area and oil volume, while reservoir and compression-adjustment options let the customer choose the level of performance and tunability needed.
Important Notes
- Recommended tire and wheel fitment: 37X12.50 on 20x9" wide wheel with 5.625" BACK SPACE
- Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
- Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
- Not compatible with vehicles equipped with load-leveling rear height control air suspension.
- Not compatible with adaptive variable suspension (AVS) equipped vehicles.
- Requires recalibration of advanced driver assistance systems (ADAS) after install.
Fitment
| Year |
Make |
Model |
Submodel |
| 2022-2023 |
Toyota |
Tundra |
1794 Edition |
| 2022-2023 |
Toyota |
Tundra |
Capstone |
| 2022-2023 |
Toyota |
Tundra |
Limited |
| 2022-2023 |
Toyota |
Tundra |
Platinum |
| 2022-2023 |
Toyota |
Tundra |
SR |
| 2022-2023 |
Toyota |
Tundra |
SR5 |
| 2022-2023 |
Toyota |
Tundra |
TRD Pro |
