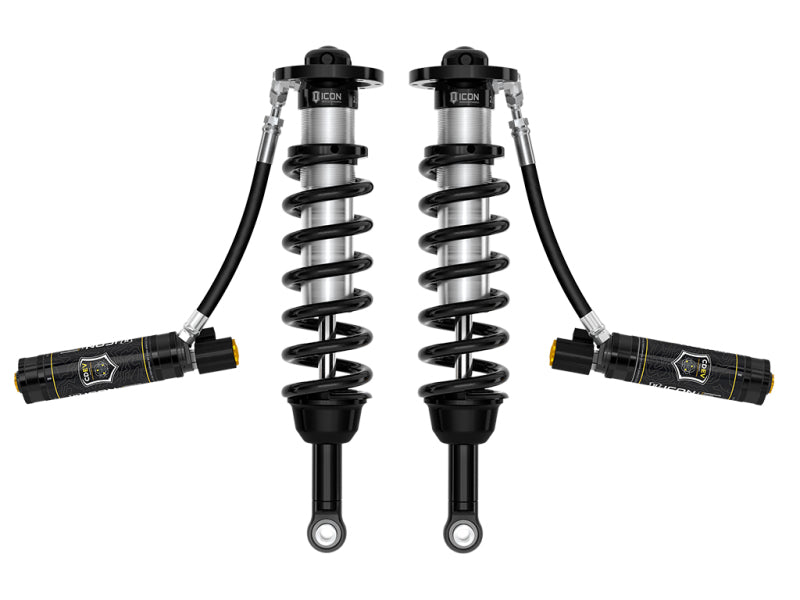

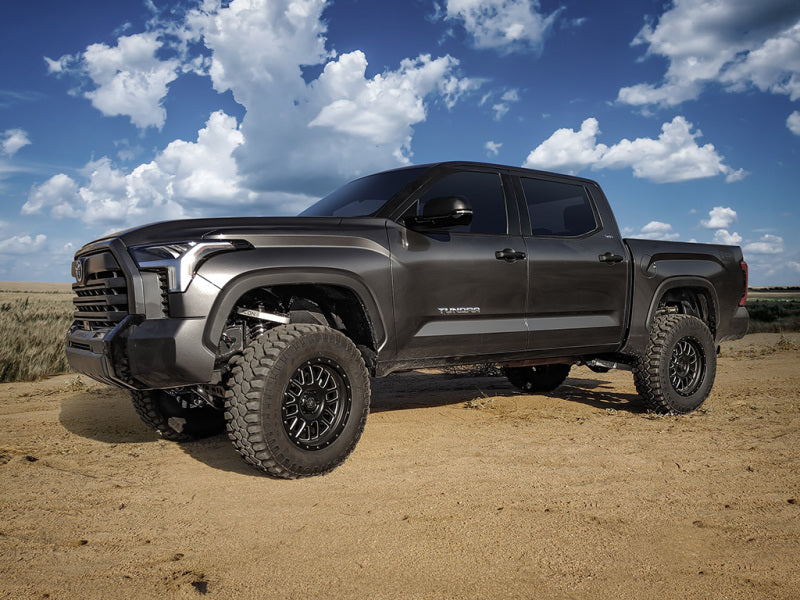

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2023 Toyota Tundra. These adjustable coilovers are specifically designed for use the ICON 6" Lift Performance Suspension System and allow up to 5-6” of front lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with 2.5 Aluminum Series CDEV rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra.
This Part Fits:
Features
- Vehicle-specific 2.5-inch performance coilover
- Lift-height adjustment on applicable vehicles
- Larger piston/oil volume for improved damping and heat capacity
- CDEV-equipped configuration supports electronic compression-damping control
- Remote reservoir supports cooler, more consistent damping during extended use
Specifications
-
Brand: ICON Vehicle Dynamics
-
Product Type: Coilovers
-
Manufacturer Part Number: 58771E
-
Variant SKU: ICO58771E
-
Series / Product Family: VEHICLE SPECIFIC (V.S) 2.5 SERIES COILOVER SHOCKS | OPTIONS: C = CDCV, E = CDEV, X = CDXS, -700 = 700 LB/IN COIL SPRING UPGRADE
-
GTIN: 00840103425641
-
Weight: 61 lb
-
Application: 2022-2024 Toyota Tundra
Product Family
ICON V.S. 2.5 Series coilovers are vehicle-specific performance dampers designed to improve ride quality, control and usable suspension travel while providing lift-height adjustment on applicable vehicles. Larger 2.5-inch shock bodies increase piston area and oil volume, while reservoir and compression-adjustment options let the customer choose the level of performance and tunability needed.
Important Notes
- Recommended tire and wheel fitment: 35X12.50 on 17x8.5" wide wheel with 5.75" BACK SPACE
- Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
- Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
- Not compatible with TRD pro.
- 22-UP Tundra SR5 equipped with TRD sport package lift range will be 1.75-4".
- ICON does not recommend lifting above 2.25" of lift without an ICON upper control arm, failure to do so can cause damage to axles.
- For non TRD models ICON recommends using ICON diff drop (part# 55156) or using Toyota TRD axles (part# 434200C020 driver / 434100C020 pass) failure to do so could result in axle damage.
Fitment
| Year |
Make |
Model |
Submodel |
| 2022-2023 |
Toyota |
Tundra |
1794 Edition |
| 2022-2023 |
Toyota |
Tundra |
Capstone |
| 2022-2023 |
Toyota |
Tundra |
Limited |
| 2022-2023 |
Toyota |
Tundra |
Platinum |
| 2022-2023 |
Toyota |
Tundra |
SR |
| 2022-2023 |
Toyota |
Tundra |
SR5 |
| 2022-2023 |
Toyota |
Tundra |
TRD Pro |
