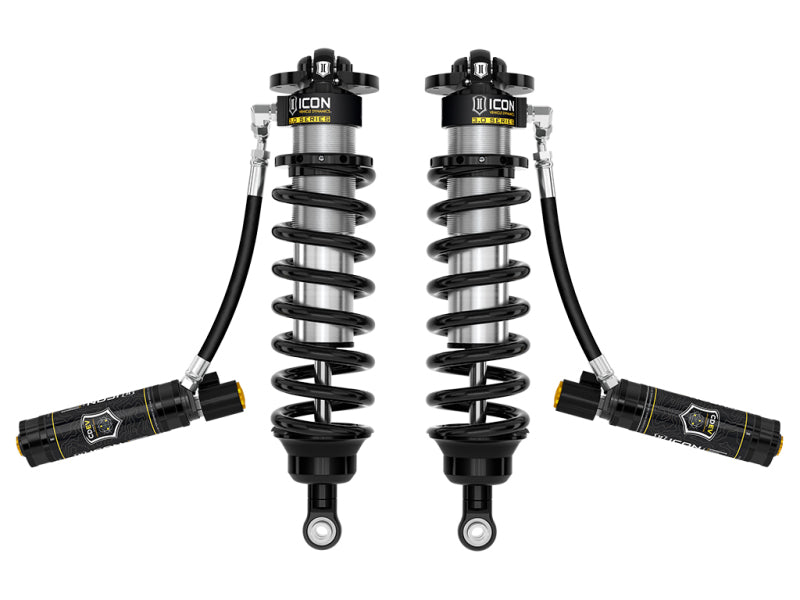

ICON 3.0 V.S. Remote Reservoir CDEV Coilover Kit for 2022-2025 Toyota Tundra/23-24 Toyota Sequoia - 58775E

Features

• Large 3.0-inch performance coilover platform
• Vehicle-specific valving and adjustable ride height on applicable vehicles
• Increased oil volume and heat capacity for demanding use
• CDEV-equipped configuration supports electronic compression-damping control
• Remote reservoir supports cooler, more consistent damping during extended use

Specifications

• Brand: ICON Vehicle Dynamics
• Product Type: Coilovers
• Manufacturer Part Number: 58775E
• Variant SKU: ICO58775E
• Series / Product Family: VEHICLE SPECIFIC (V.S) 3.0 SERIES COILOVER SHOCKS | OPTIONS: C = CDC VALVE, 700 = 700 LB/IN COIL SPRING UPGRADE
• GTIN: 00840103421292
• Weight: 81 lb
• Application: 2022-2025 Toyota Tundra/23-24 Toyota Sequoia

Product Family

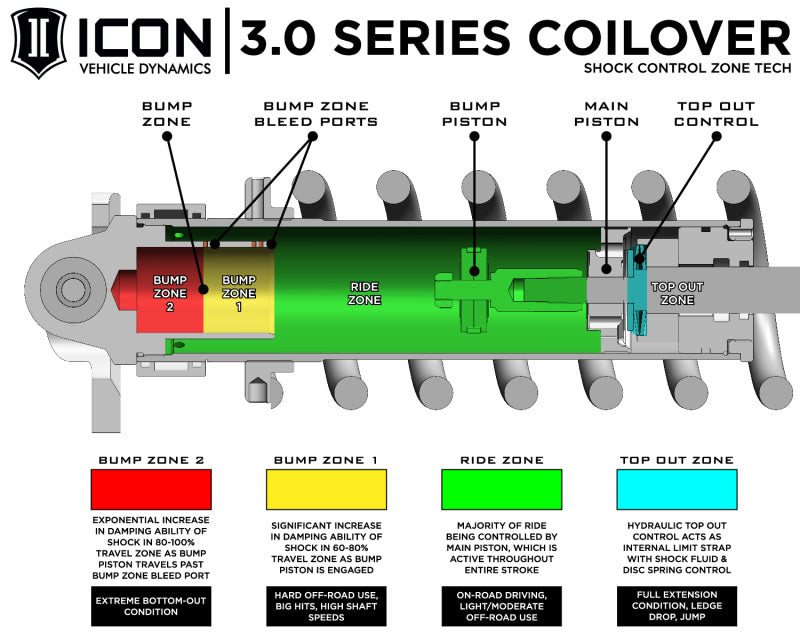

ICON V.S. 3.0 Series coilovers step up shock volume and piston area for demanding vehicles and higher-speed off-road use. The larger body improves heat capacity and control under sustained load, while vehicle-specific valving and available compression-adjustment technology retain everyday drivability.

Important Notes

• Recommended tire and wheel fitment: 35X12.50 on 17x8.5" wide wheel with 5.75" BACK SPACE
• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
• For non TRD models ICON recommends using ICON diff drop (part# 55156) or using Toyota TRD axles (part# 434200C020 driver / 434100C020 pass) failure to do so could result in axle damage.
• If equipped with TRD aluminum skid plate part # 55164 is also required.
