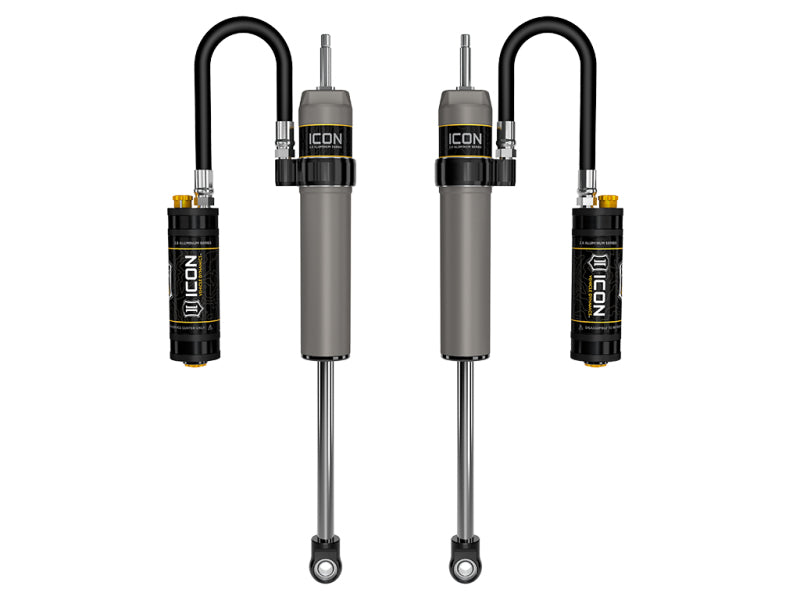

ICON 3.5in Rear 2.5 V.S. CDCV Remote Reservoir Shock Pair for 2022-2024 Toyota Tundra - 57841CP

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

This Part Fits:

Features

• Vehicle-specific 2.5-inch performance shock
• Fully serviceable/re-tunable design
• Reservoir configuration matched to packaging and heat-management needs
• CDCV-equipped configuration provides external compression-damping adjustment
• Remote reservoir supports cooler, more consistent damping during extended use

Specifications

• Brand: ICON Vehicle Dynamics
• Product Type: Shocks and Struts
• Manufacturer Part Number: 57841CP
• Variant SKU: ICO57841CP
• Series / Product Family: VEHICLE SPECIFIC (V.S) 2.5 SERIES | OPTIONS: C = CDC VALVE SHOCK IR: INTERNAL RESERVOIR PB: PIGGYBACK RR: REMOTE RESERVOIR
• GTIN: 00840103425603
• Weight: 31 lb
• Application: 2022-2024 Toyota Tundra

Product Family

ICON V.S. 2.5 Series shocks are built around vehicle-specific damping, a larger performance shock body and a fully serviceable design. Internal-reservoir, piggyback and remote-reservoir configurations let the suspension package balance packaging, heat control and performance for the listed vehicle.

Important Notes

• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• Not compatible with vehicles equipped with load-leveling rear height control air suspension.
• Not compatible with adaptive variable suspension (AVS) equipped vehicles.

Fitment

Year	Make	Model	Submodel
2022-2023	Toyota	Tundra	1794 Edition
2022	Toyota	Tundra	Capstone
2022-2023	Toyota	Tundra	Limited
2022-2023	Toyota	Tundra	Platinum
2022-2023	Toyota	Tundra	SR
2022-2023	Toyota	Tundra	SR5
2022-2023	Toyota	Tundra	TRD Pro
